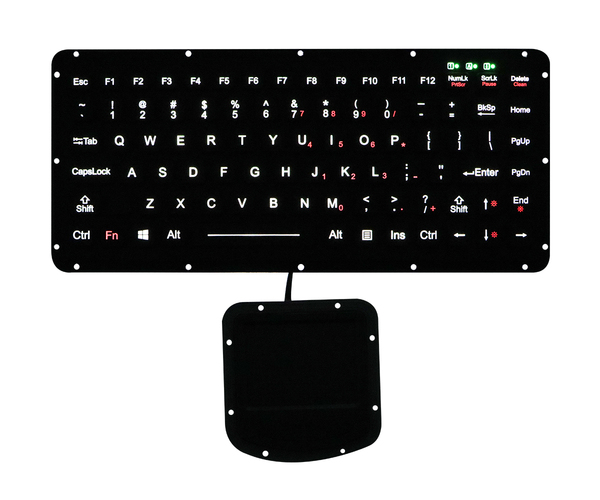

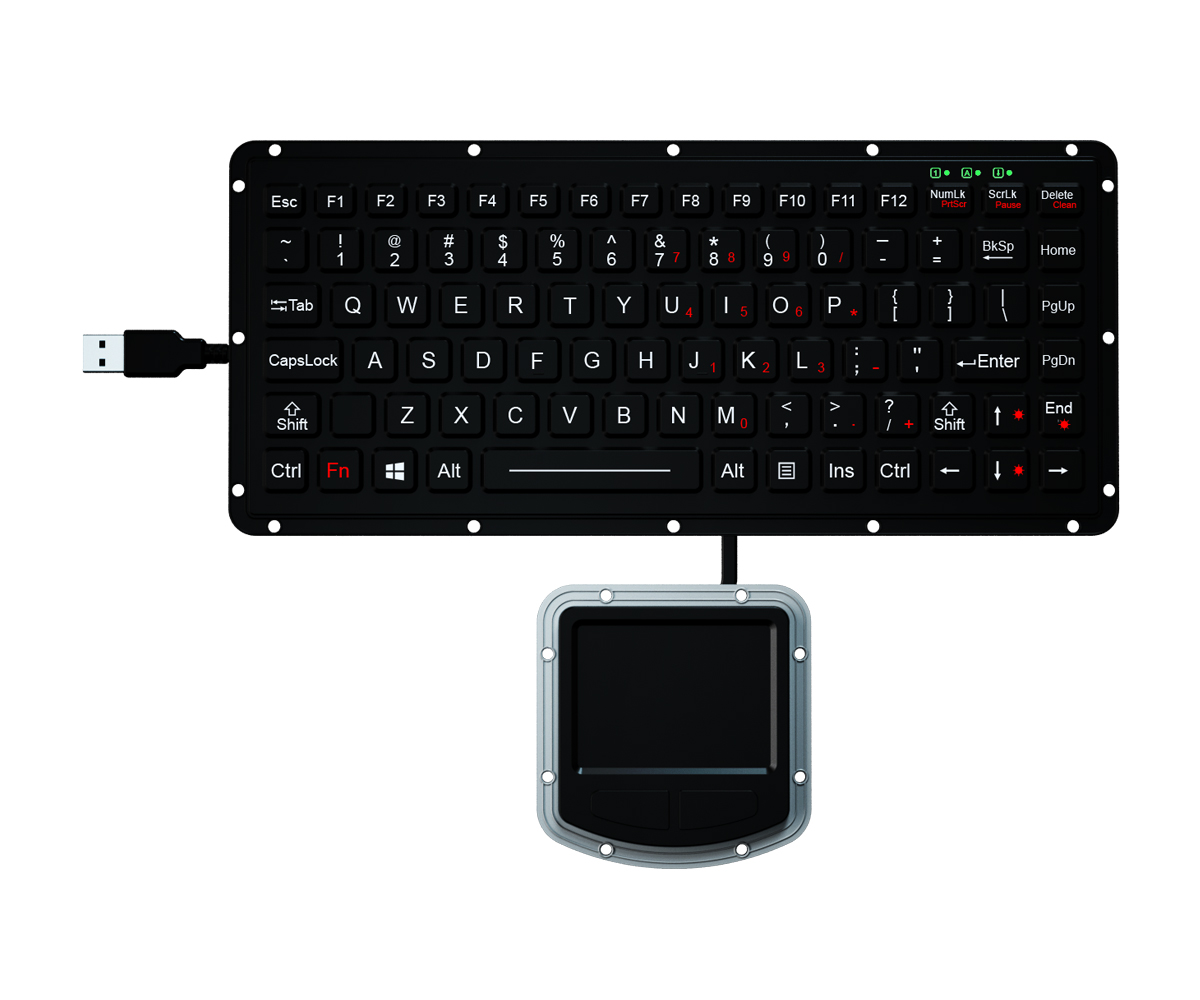

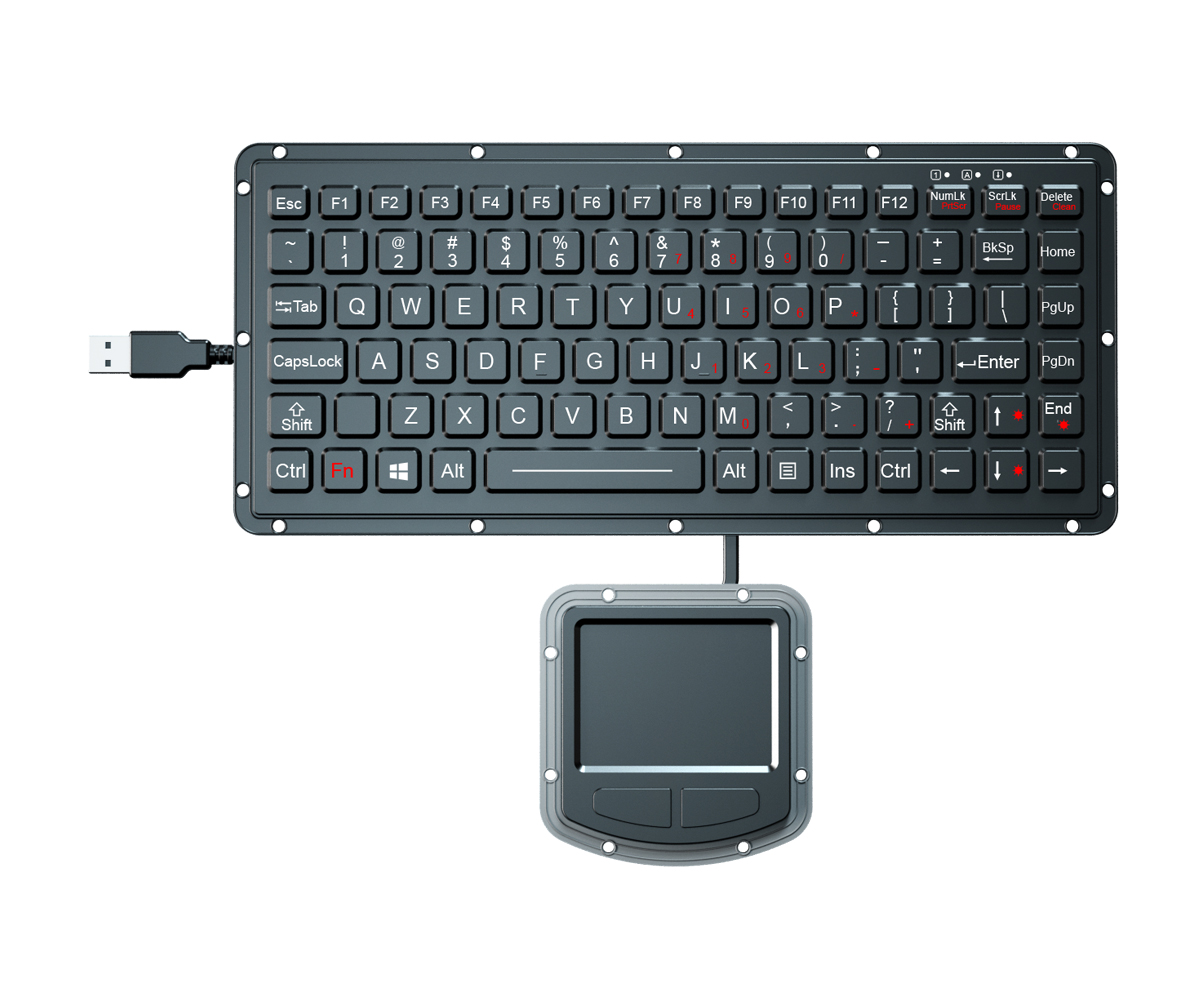

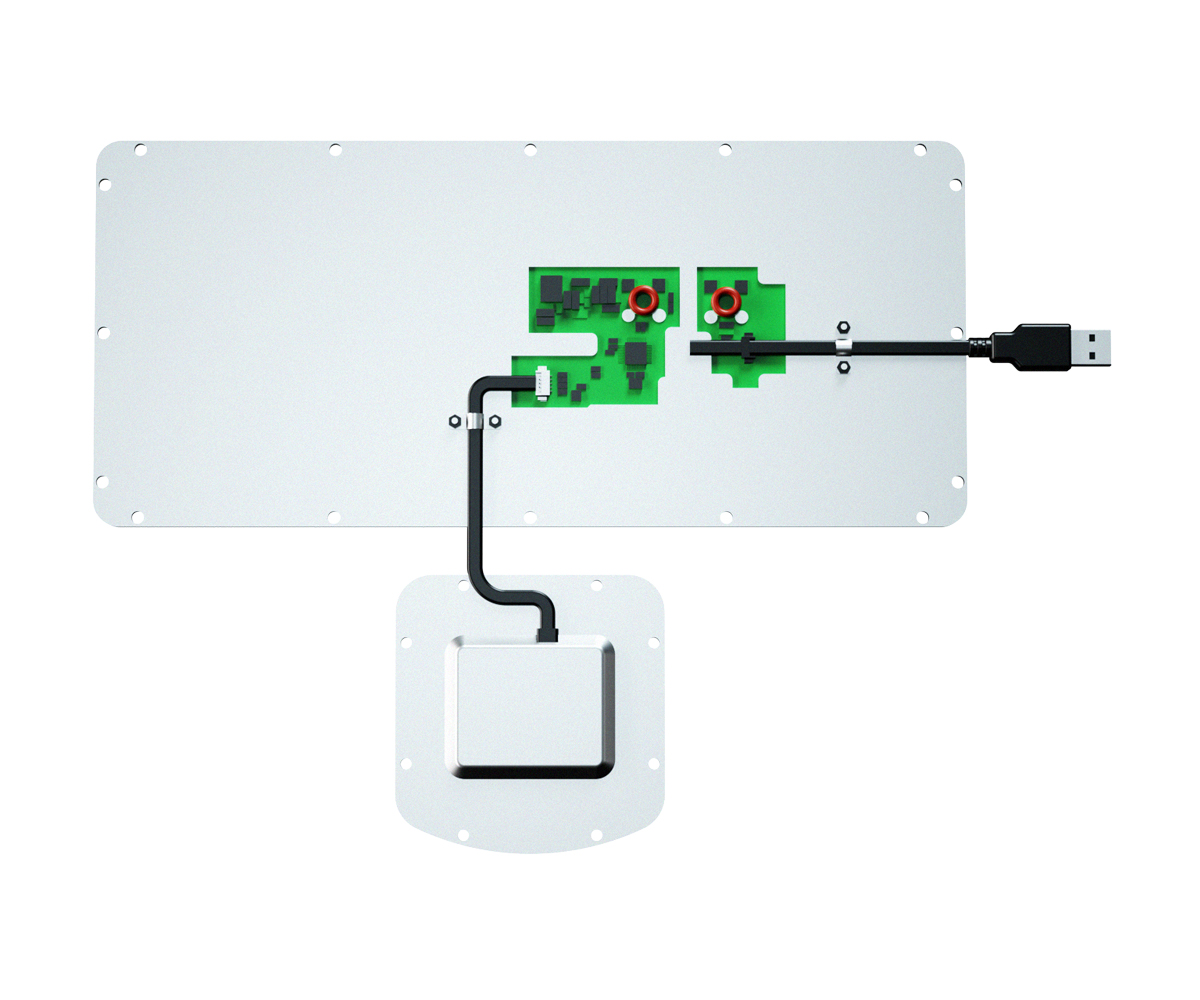

DESCRIPTION: 87 keys IP65 dynamic sealed and durable embedded silicone rubber rugged keyboard integrated with sealed tough touchpad for fast cursor position, with built-in military grade PCB, 12 function keys on top line for easy operation, with carbon-on-gold key switch technology with key stroke (1.50±0.10mm) with extremely good tactile feeling for fast and accurate data input without any noiset, with durable coating & anti-microbial keyboard surface withstand to most chemicals and liquids under harsh environment, FN + Clean combination key for easy cleaning via lock/disable whole keyboard without needing to take away the keyboard from PC, with a reinforced and rugged aluminum back plate for better shielding function and positioning of the rugged cable outlet, rear panel mounted, adjustable white backlight included. Designed to Meet MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.), which can also meet the critical military standards in these 10 aspects: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity. DIMENSION: Keyboard: 270.0mm x 113.0mm (L x W ) Touchpad: 73.0mm x 76.0mm (L x W)
MECHANICAL DATA | Keys | 87 keys + 2 mouse buttons | Key top style | Protuberant rectangular keys with tactile feeling | Key travel | 1.50mm±0.10mm | Actuation Force | 1.5N±0.2N (pressure point ) | Touch pad | sealed and ruggedized tough touchpad | Touchpad cover | Composite | More than Lifetime 10 million strokes | Mutual capacitance sensing | X/Y axis location detection resolution | 40 Counts /mm | X/Y position report | relative | Output (self-detectable depending on cable) | PS2 or USB | Tracking speed | Maximum 1,016 m/sec | Power supply voltage | 5VDC ± 0.25V | Current rating (active mode) | < 10 mA | G.W. | 0.80KGs | ELECTRICAL DATA | Supply Voltage | DC +5V±5% | Current Rating | 30mA when backlight is off, 300mA with backlight on | Meet MIL-STD-461G (EMC, EMI, EMS, ESD): | 1 | CE101 25Hz - 10kHz Conducted Emissions, Audio Frequency Currents, Power leads | 2 | CE102 10kHz -10MHz Conducted Emissions, Radio Frequency Potentials, Power leads | 3 | CS101 25Hz - 150kHz Conducted Susceptibility, Power Leads | 4 | CS106 Conducted Susceptibility, Transients, Power Leads | 5 | CS112 Electrostatic Discharge Susceptibility | 6 | CS114 4kHz -400MHz Conducted Susceptibility, Bulk Cable injection | 7 | CS115 Conducted Susceptibility, Bulk Cable injection, Impulse Excitation | 8 | CS116 10kHz - 100MHz Conducted Susceptibility, Damped Sinusoidal Transients, Cables and Power Leads | 9 | RE101 25Hz -100kHz Radiated Emissions, Magnetic Field | 10 | RE102 10kHz - 18GHz Radiated Emissions, Electric Field | 11 | RS101 25HZ - 100kHz Radiated Susceptibility, Magnetic Field | 12 | RS103 10kHz - 40GHz Radiated Susceptibility, Electric Field | MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.) | Lifespan | > 5 years | Switch Contact Material | military PCB with carbon-on-gold key switch technology | Interface | USB | OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). | ENVIRONMENTAL ADAPTABILITY | Operating temperature | -40℃ to +75℃ | Storage temperature | -45℃ to +85℃ | Operating RH | 3%~95% | Atmospheric pressure | 60-106Kpa | Saline mist | 96 hours, IEC 60512-6 | Damp heat test at +40℃ | 21 days, IEC 60512-6 | Dry heat test at +85℃ | 10 days, IEC 60512-6 | RELIABILITY | RoHS compliant, CE and FCC certified, MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.) | Protection Level | IP65 dynamic (front panel) | Key Lifespan | >5 million actuations | MTBF | >20000H | MTTR | <30min | APPLICATIONS | Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc. |
|
