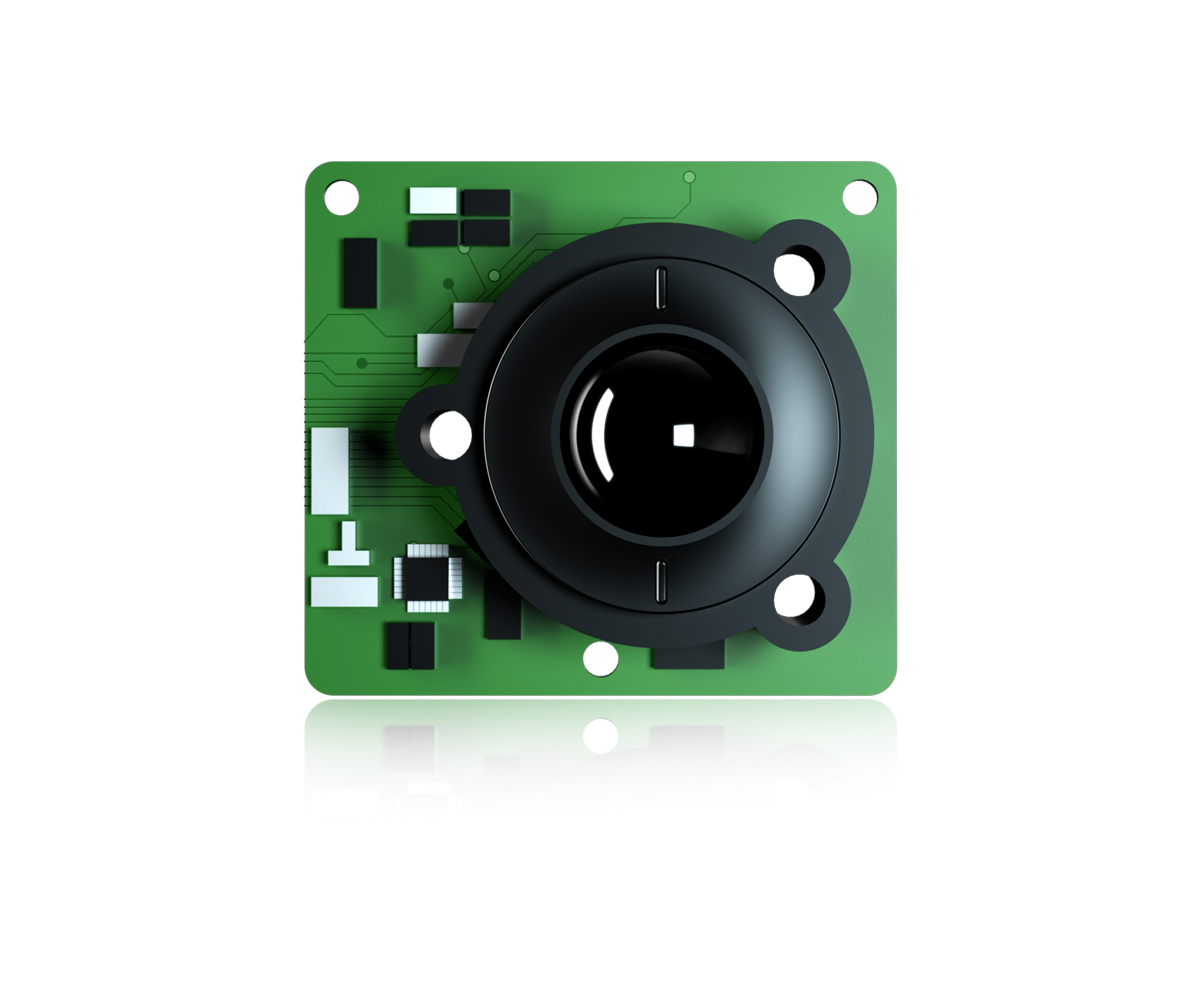

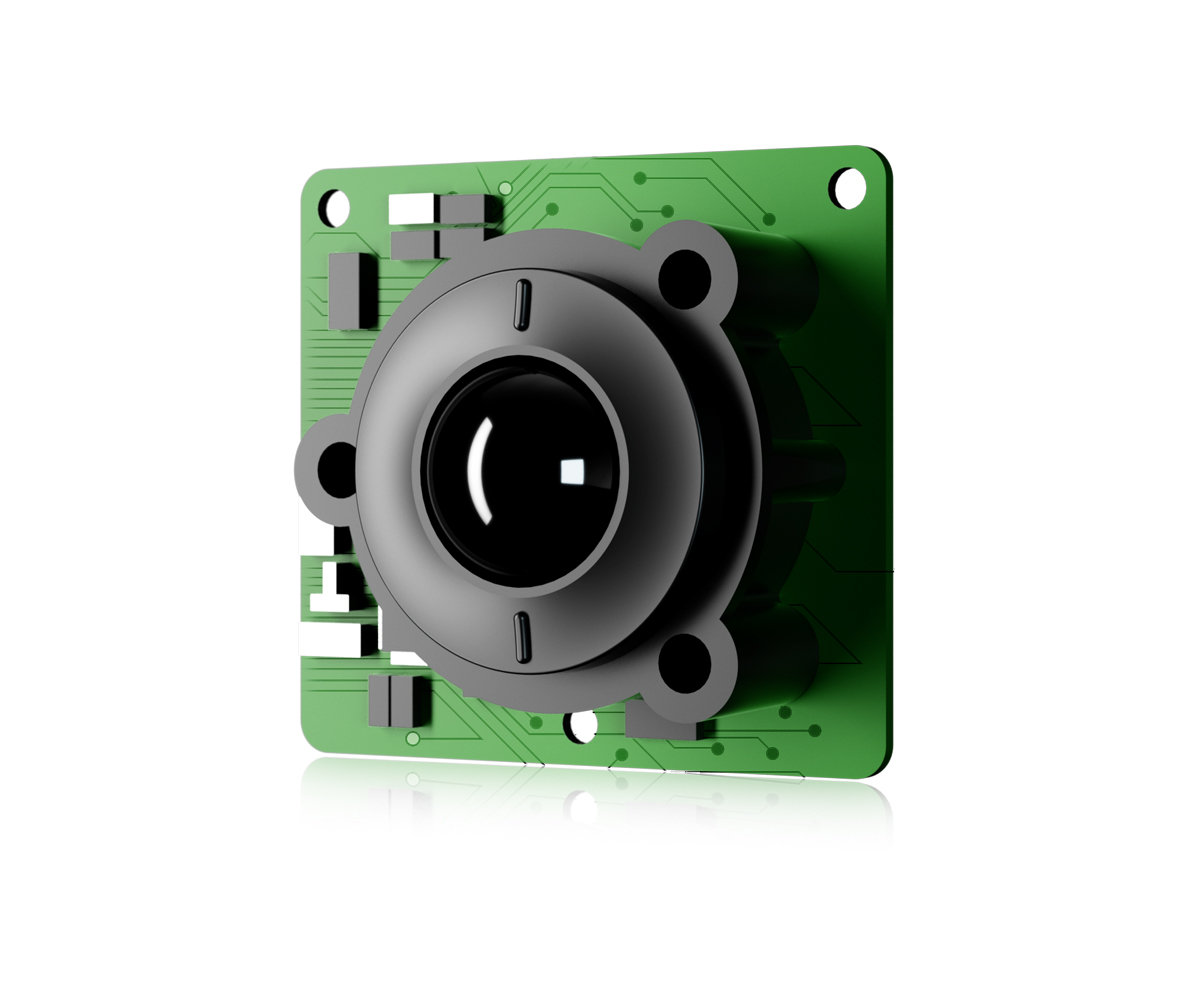

DESCRIPTION: 14.0mm IPX4 static rated waterproof MINI laser thumb ball module with 600 DPI resolutions for fast and accurate cursor movement. Built-in wide temperature military grade PCB, hardened resin ball with ABS plastic housing for panel mounted solution, with durable coating & antimicrobial surface, it can be used in harsh environments to well withstand bacteria, USB or PS2 interface. Meet MIL-STD-810F with high and low temperature, low pressure, humidity, vibration, shock, temperature shock, drop test etc, as well as designed to meet with critical military standards in these 10 aspects: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity.
DIMENSIONS: 41.0mm x 37.0mm (L X W)
MECHANICAL DATA | Mouse | ABS plastic housing+black hardened resin ball module | Mouse Switch Technology | Laser sensing | Key lifespan | ≤3 millions actuation | Trackball diameter | 14.0mm | Resolution | 600 DPI | Drive pressure | 1.0N-2.0N
| Roller encoder Lifespan | ≥10 million scrolling | MUTUAL CAPACITANCE SENSING | X/Y axis location detection resolution | 40 Counts /mm | X/Y position report | relative | Power supply voltage | 5V ± 0.25V | Current rating | < 17 mA | ELECTRICAL DATA | Supply Voltage | DC +5V±5% | Current Rating | ≈30mA | EMC standard | EN 55032:2015 EN 55035:2017 | Lifespan | > 5 years | Interface | USB or PS2, other interface can be customized | OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). | ENVIRONMENTAL ADAPTABILITY | Operating temperature | -40℃ to +55℃ | Storage temperature | -45℃ to +60℃ | Operating RH | 95% | Atmospheric pressure | 60-106Kpa | Saline mist | 96 hours, IEC 60512-6 | Damp heat test at +40℃ | 21 days, IEC 60512-6 | Dry heat test at +85℃ | 10 days, IEC 60512-6 | RELIABILITY | RoHS Compliant, CE and FCC, MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.) | Protection Level | IPX4 | MTBF | >20000H | MTTR | <30min | APPLICATION | Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas, marine etc. |
|
