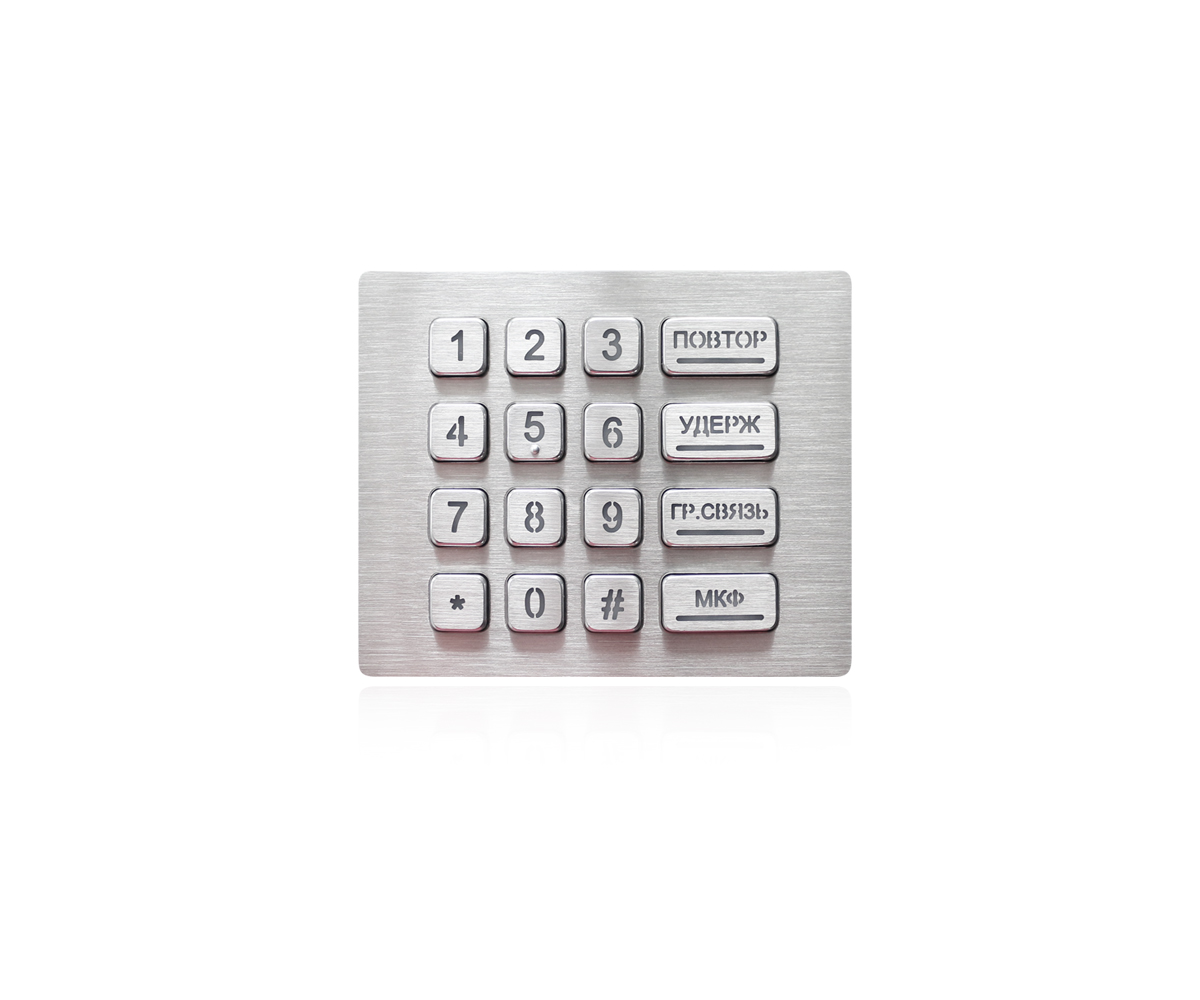

DESCRIPTION: 16 keys compact format IP65 dynamic water proof and vandal proof Stainless Steel industrial dot matrix keypad with fully

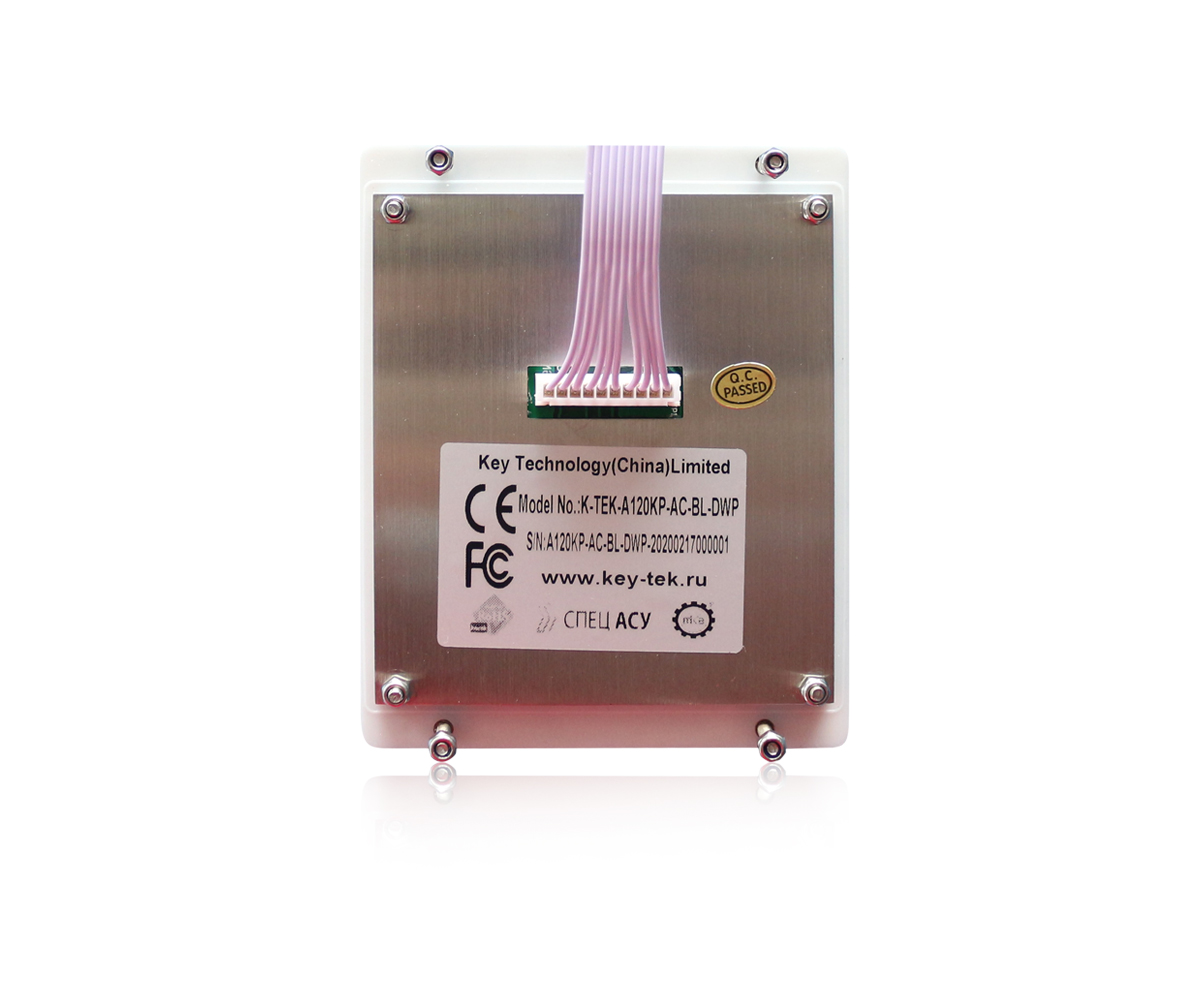

sealed industrial PCB with socket on the back panel for connecting electronics controller, with industrial PCB with carbon-on-gold key switch
technology with stroke (1.5mm) with extremely good tactile feeling for fast and accurate data input without any noise, stainless steel keys etched
out via professional way and filled with transparent epoxy for backlight out, top stainless steel plate with welded studs and water-tight gasket for

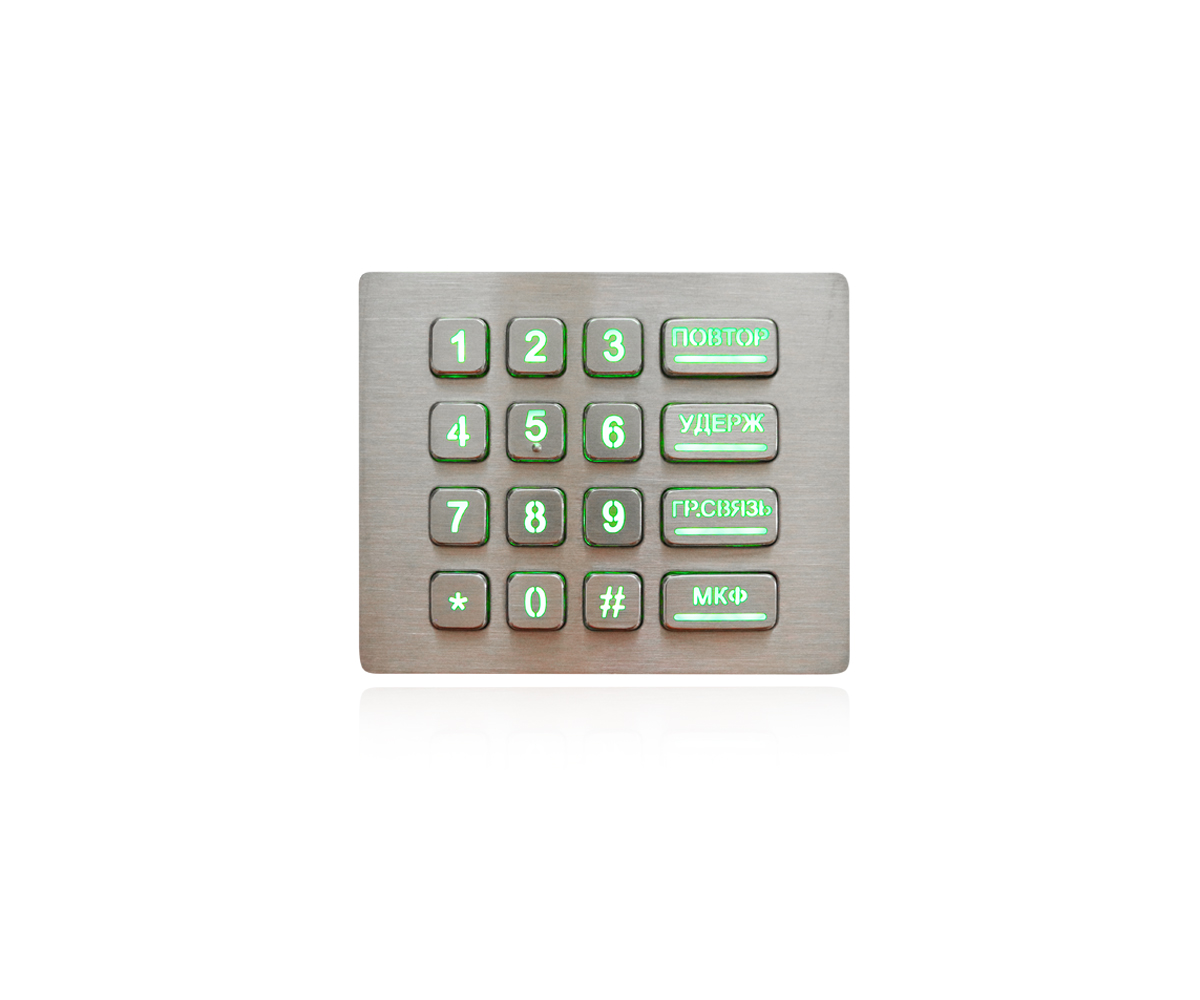

easy mounting and tightening to enclosure or panel. Industrial Backlight (red/blue/white/green) included. Which is good for outdoor application with
direct rain and very harsh dim environments with humidity, much dynamic water, oil, dirt, salt mist etc.
DIMENSIONS: 120.0mm x 98.0mm (top panel)
ELECTRICAL DATA |
|
Supply Voltage | DC +5V±5% |
Current Rating | 100mA |
EMC Standard | EN 55032:2015 EN 55035:2017 |
Lifespan | > 5 years |
Switch Contact Material | Carbon-on-Gold key switch technology PCB |
Interface | Dot matrix |
OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos-To be confirmed). |
MECHANICAL DATA |
|
Front Plate | 1.5mm thickness super quality brushed stainless steel |
Back Plate | 1.5mm thickness super quality stainless steel |
Actuator/keys | 16 keys, super quality SUS304 brushed stainless steel raised key |
Key top style | protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available |
Key Size | 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for function keys |
Key Travel | 1.5mm±0.1mm |
Actuation Force | 1.5N±0.2N (pressure point), 2.5N±0.2N for key 14.0mm x 28.0mm (pressure point) |
Switch Life | more than 5 million of operations |
G.W. | 0.80KGs |
ENVIRONMENTAL ADAPTABILITY |
|
Operating Temperature | -20℃ to +65℃ |
Storage Temperature | -30℃ to +75℃ |
Operating RH | 30-90% |
Atmospheric Pressure | 60-106Kpa |
Saline Mist | 96 hours, IEC 60512-6 |
Damp heat test at +40℃ | 21 days, IEC 60512-6 |
Dry heat test at +85℃ | 10 days, IEC 60512-6 |
RELIABILITY |
|
RoHS Compliant, CE and FCC, ESD |
|
Protection Level | IP65 dynamic (front panel) |
Vandal Resistant | IK08 |
Key Lifespan | >5 million actuations |
MTBF | >20000H |
MTTR | <30min |
APPLICATIONS | Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc. |
