Product Detail

K-TEK-M270-FN-BL-ML+M73TP

Category: Silicone keyboard
Key Number: 89 keys (including 2 mouse buttons)
Key Travel: 1.50mm±0.10mm
Backlight: White
Interface: USB
Key Switch: Carbon-on-gold
Protection Level: IP65 dynamic (front panel)
Mounting Solution: Rear panel mount
Operating Temperature: -40℃~+75℃
Application: Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc.
Description
Download

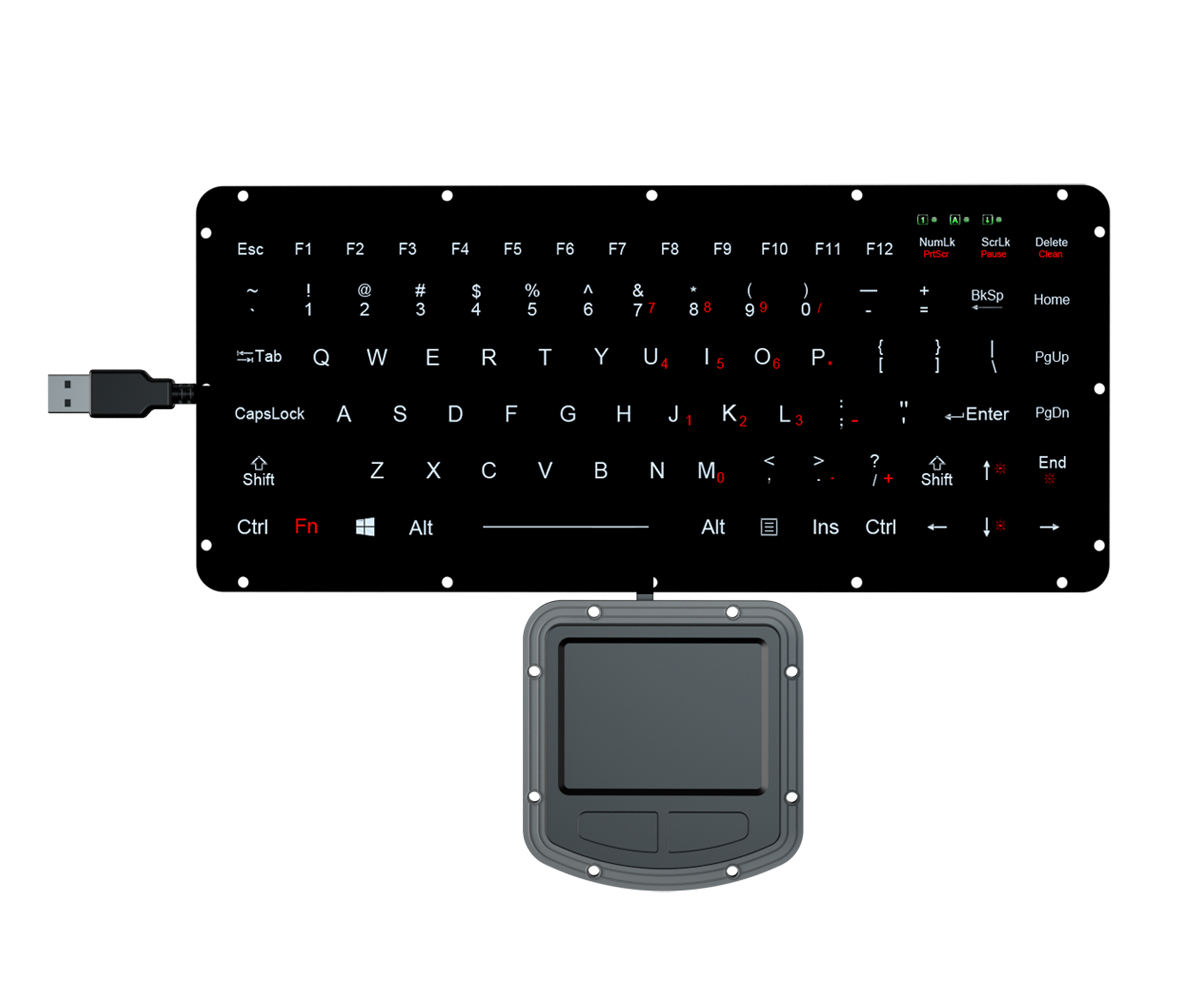

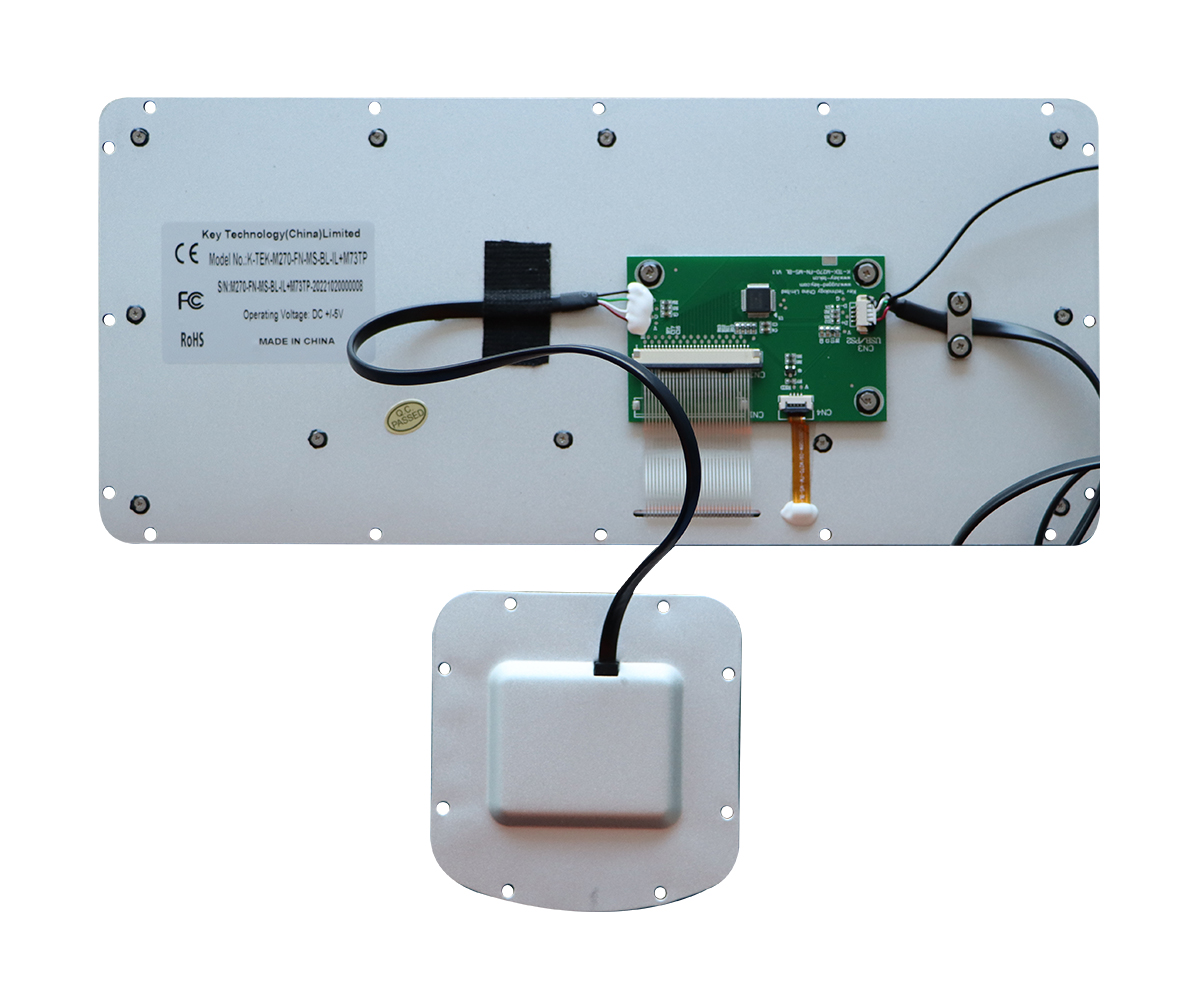

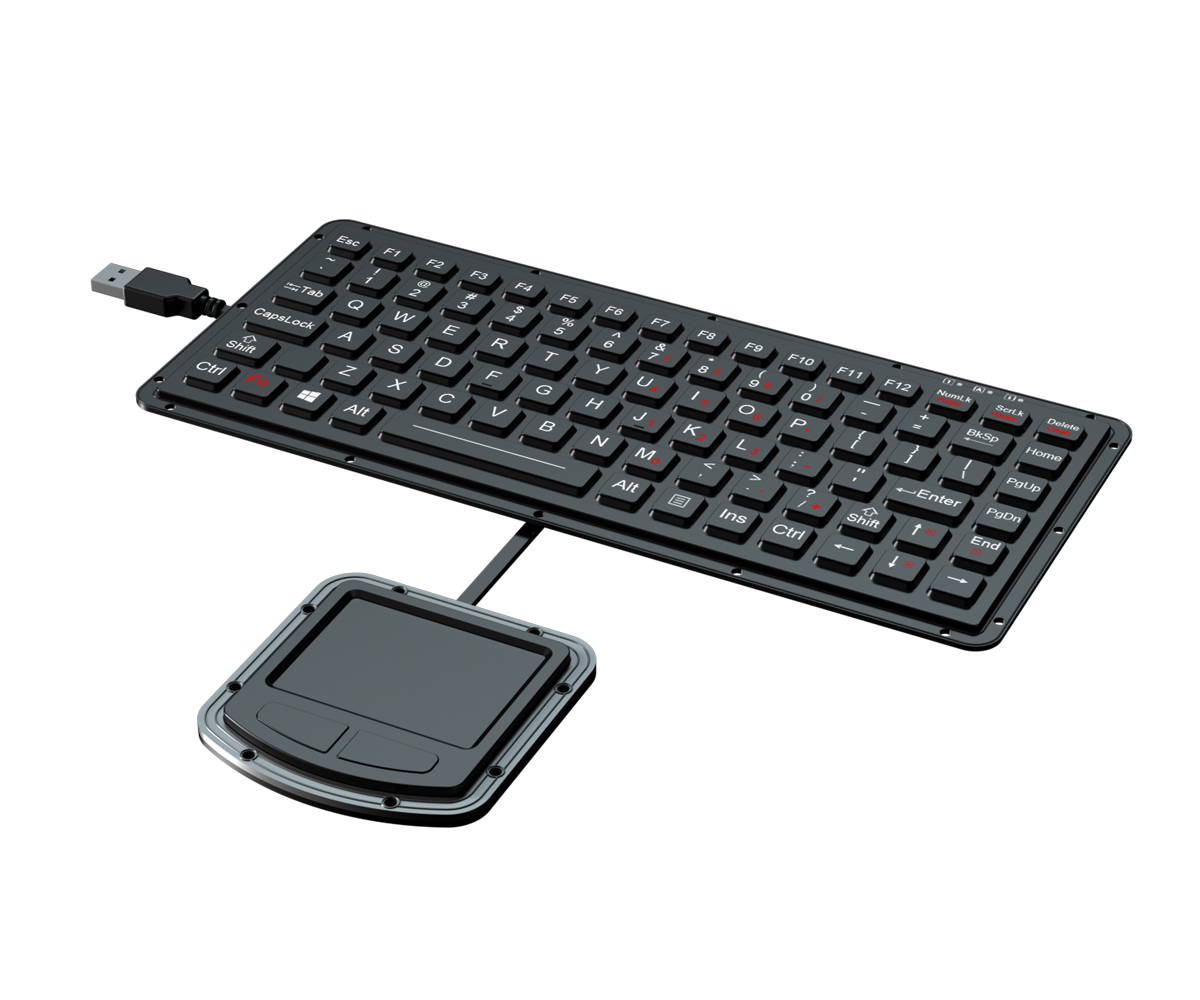

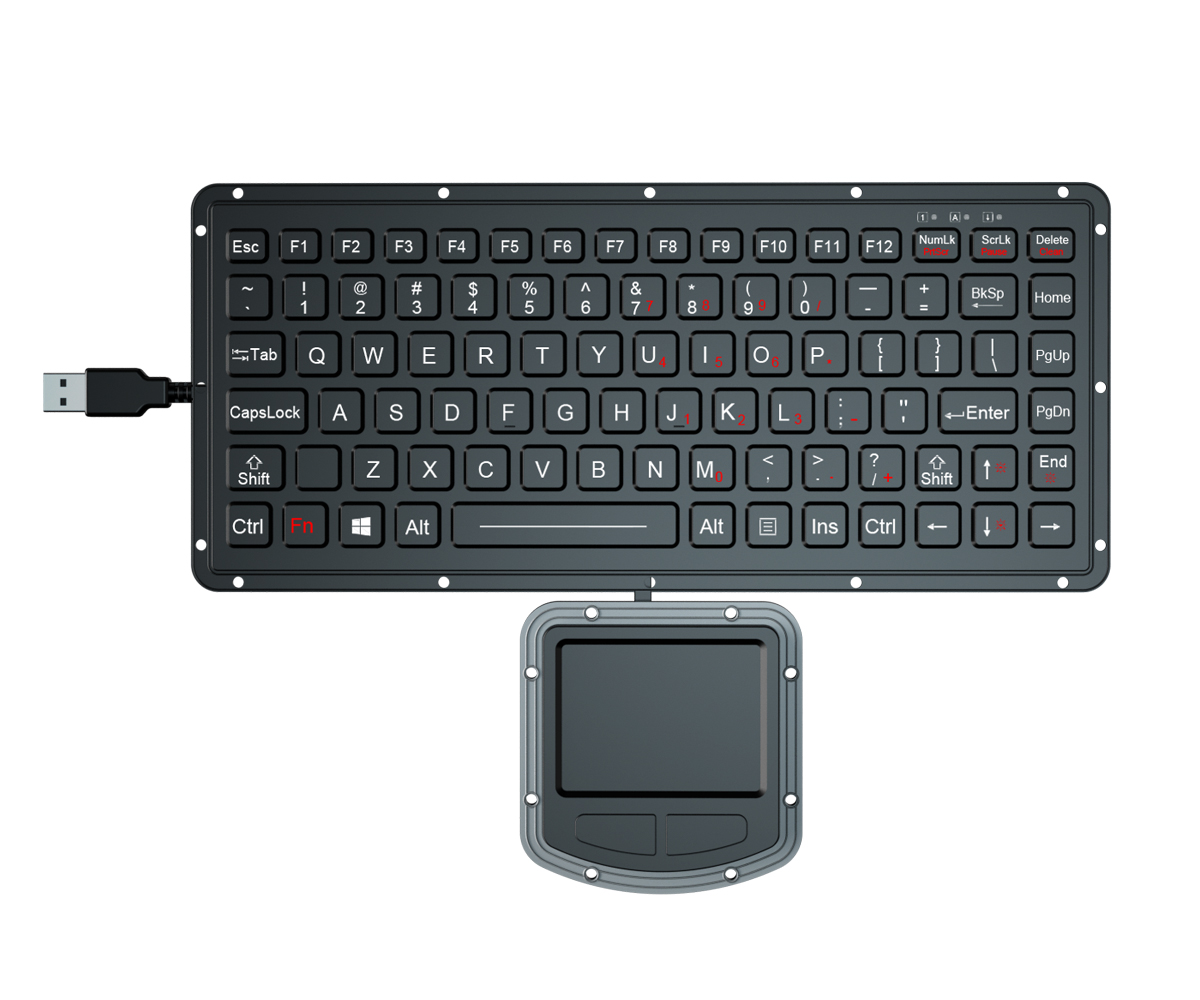

DESCRIPTION: 87 keys IP65 dynamic sealed and durable embedded silicone rubber rugged keyboard integrated with sealed tough touchpad for fast cursor position, with built-in military grade PCB, 12 function keys on top line for easy operation, with carbon-on-gold key switch technology with key stroke (1.50±0.10mm) with extremely good tactile feeling for fast and accurate data input without any noise, with durable coating & anti-microbial keyboard surface withstand to most chemicals and liquids under harsh environment, FN + Clean combination key for easy cleaning via lock/disable whole keyboard without needing to take away the keyboard from PC, rear panel mounted, with a reinforced and rugged aluminum back plate for better shielding function and positioning of the rugged cable outlet, adjustable white backlight included. Designed to Meet MIL-STD 810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.), and MIL-STD-461G (EMC, EMI, EMS, ESD) optional, which can also meet the critical military standards in these 10 aspects: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity.

DIMENSION: Keyboard: 270.0mm x 113.0mm (L x W ) Touchpad: 73.0mm x 76.0mm (L x W)


MECHANICAL DATA

Keys

87 keys + 2 mouse buttons

Switch Contact Material

Carbon-on-gold key switch technology

Key top style

Protuberant rectangular keys with tactile feeling

Key travel

1.50mm±0.10mm

Actuation Force

1.5N±0.2N (pressure point )

Touch pad

sealed and ruggedized tough touchpad

Touchpad cover

Composite

More than Lifetime 10 million strokes

Mutual capacitance sensing

X/Y axis location detection resolution

40 Counts /mm

X/Y position report

relative

Output (self-detectable depending on cable)

USB

Tracking speed

Maximum 1,016 m/sec

Power supply voltage

5VDC ± 0.25V

Current rating (active mode)

< 10 mA

G.W.

0.80KGs

ELECTRICAL DATA

Supply Voltage

DC +5V±5%

Current Rating

30mA when backlight is off, 300mA with backlight on

EMC Standard

EN 55032:2015   EN 55035:2017

Lifespan

> 5 years

Interface

USB, other interfaces can be customized.

OS

All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).

ENVIRONMENTAL ADAPTABILITY

Operating temperature

-40℃ to +75

Storage temperature

-45℃ to +85

Operating RH

3%~95%

Atmospheric pressure

60-106Kpa

Saline mist

96 hours, IEC 60512-6

Damp heat test at +40℃

21 days, IEC 60512-6

Dry heat test at +85℃

10 days, IEC 60512-6

RELIABILITY

RoHS compliant, CE and FCC certified, MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.)

Protection Level

IP65 dynamic (front panel)

Key Lifespan

>5 million actuations

MTBF

>20000H

MTTR

<30min

APPLICATIONS

Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV

ground station etc.
