Product Detail

K-TEK-B68KP-BL-DWP

Category: Stainless steel keypad
Key Number: 12 keys
Key Travel: 0.45±0.05mm

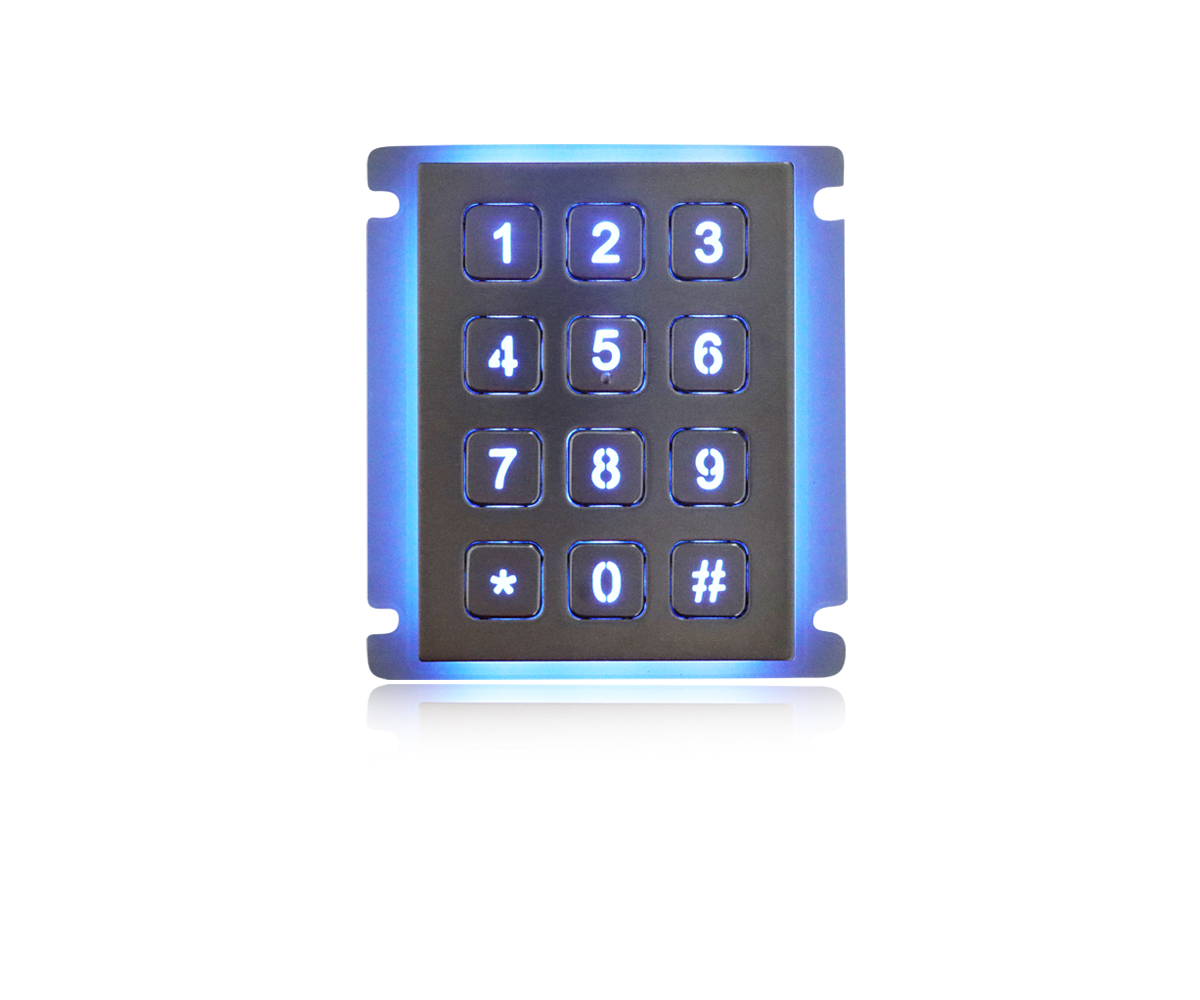

Backlight: White/Blue/Red/Green
Interface: PS2/USB/RS232/RS485
Key Switch: Metal dome gold-on-gold
Protection Level: IP65 dynamic (front panel)
Mounting Solution: Rear panel mount
Operating Temperature: -20ºC to +65 ºC
Application: Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc.
Description
Download

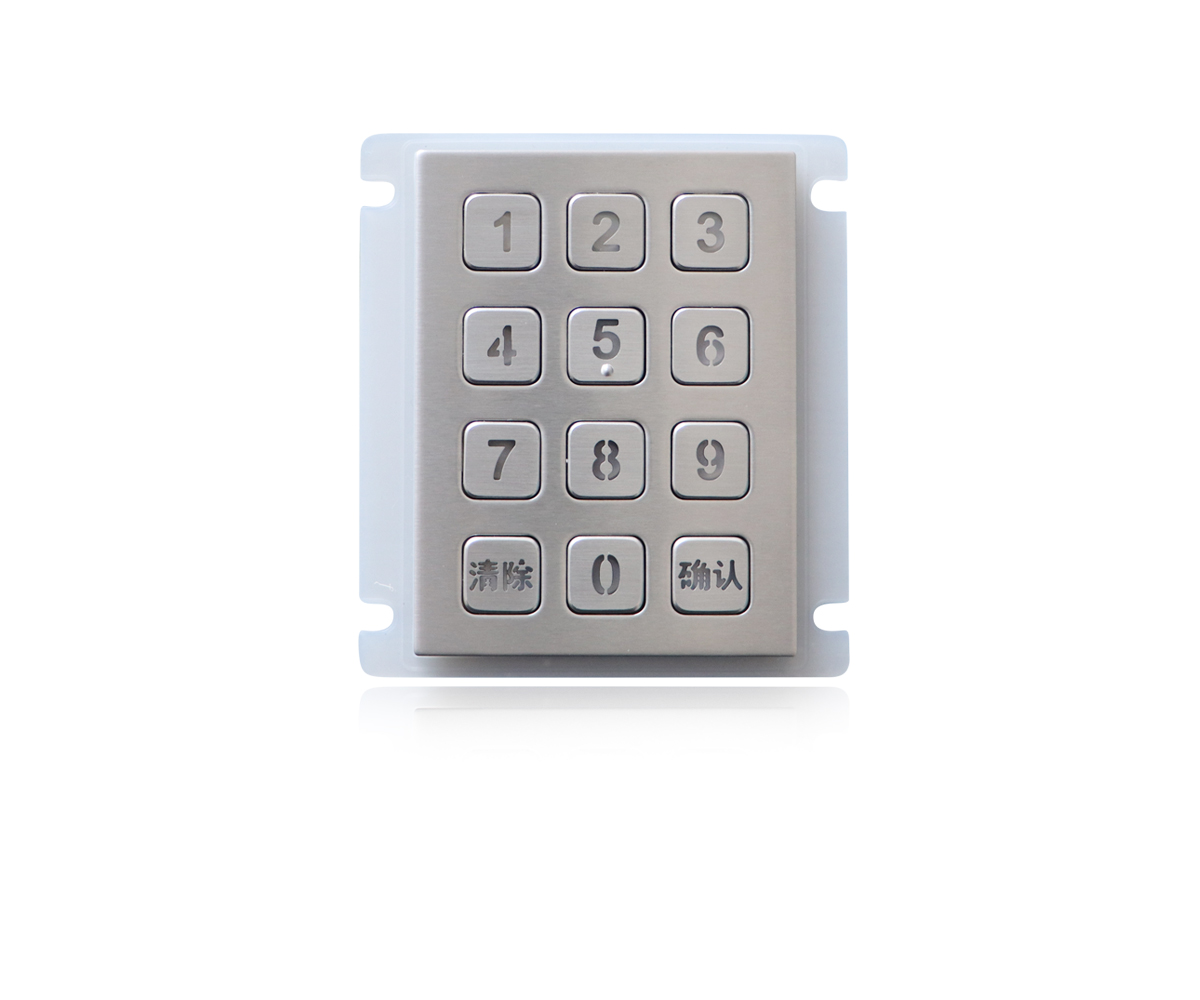

DESCRIPTION: 12 keys compact format IP65 dynamic water proof and vandal proof and Stainless Steel industrial keypad with industrial metal

dome PCB electronics controller shielded & protected by stainless steel housing, industrial metal dome PCB with gold-on-gold key switch technology

with short stroke 0.45mm with excellent tactile feeling for stable and accurate data input, with rear stainless steel plate with mounting holes and

water-tight gasket for easy mounting and tightening to enclosure or panel. Stainless steel keys etched out via professional way and filled with

transparent epoxy for backlight out. Industrial Backlight (red/blue/white/green optional) included. Which is good for outdoor application with direct

rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc.

DIMENSIONS: 68.0mm × 90.0mm (front panel)


ELECTRICAL DATA

Supply Voltage
DC +5V±5%
Current Rating
150mA
EMC Standard
EN 55032:2015   EN 55035:2017
Lifespan
> 5 years
Switch Contact Material
Gold-on-Gold key switch technology PCB
Interface
PS2, USB, RS232, RS485 available
OS
All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos-To be confirmed).
COMMUNICATION PARAMETER

PS2/USB

1
Standard PS2/USB keyboard interface
2
12 actuators: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9,*, #. 3 x 4 scanning code
RS232

1
Standard RS232 serial interface
2
Communication velocity: 9600bps
3
Data format: N, 8, 1
4

12 actuators: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9,*, #. 3 x 4 scanning code, 3 x 4 scanning

code

MECHANICAL DATA

Front Plate
1.5mm thickness super quality brushed stainless steel

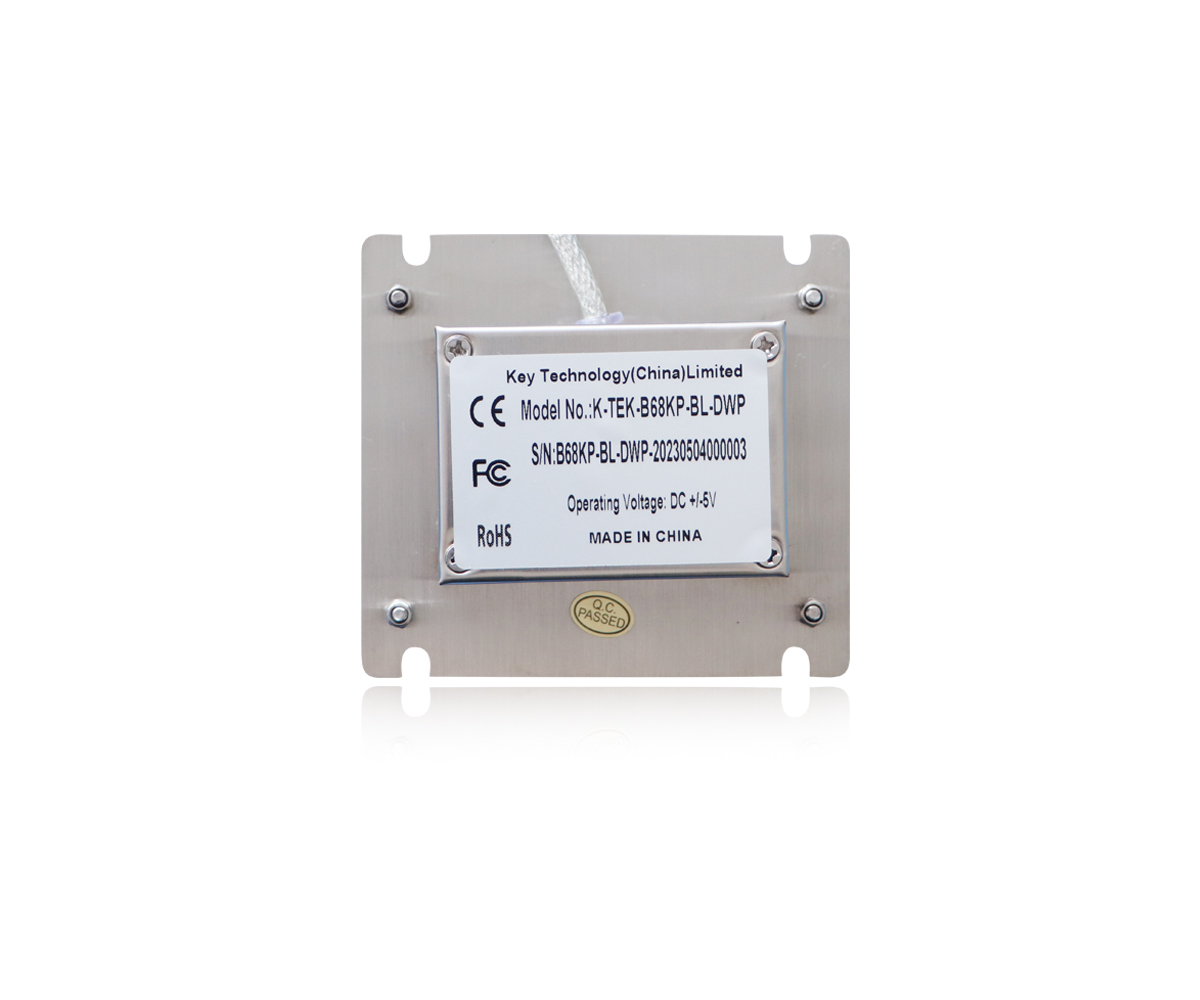

Back Plate
1.5mm thickness super quality stainless steel
Actuator/keys
12 keys, 1.50mm thickness super quality SUS304 brushed stainless steel flat key.
Key top style
Non-protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available
Key Size
14.0mm x 14.0mm for normal keys
Key Travel
0.45mm±0.05mm
Actuation Force
3.5N±0.2N for key 14.0mm x 14.0mm (pressure point)
Switch Life
more than 1 million of operations
G.W.
0.60KGs
ENVIRONMENTAL ADAPTABILITY

Operating Temperature
-20℃ to +65℃
Storage Temperature
-30℃ to +75℃
Operating RH
30-90%
Atmospheric Pressure
60-106Kpa
Saline Mist
96 hours, IEC 60512-6
Damp heat test at +40℃
21 days, IEC 60512-6
Dry heat test at +85℃
10 days, IEC 60512-6
RELIABILITY

RoHS Compliant, CE and FCC, ESD

Protection Level
IP65
Vandal Resistant
IK09
Key Lifespan
>1 million actuations
MTBF
>20000H
MTTR
<30min
APPLICATIONS

Industrial, coal and mine, medical, bank kiosk and self service terminal, public

access, explosion-proof automation, oil and gas etc.
