DESCRIPTION: 16 keys compact format IP65 washable vandal proof stainless steel industrial Compact Format Numeric keypad with dot matrix
circuit with socket on the back panel of PCB for connecting electronics controller, industrial metal dome PCB with gold-on-gold key switch technology

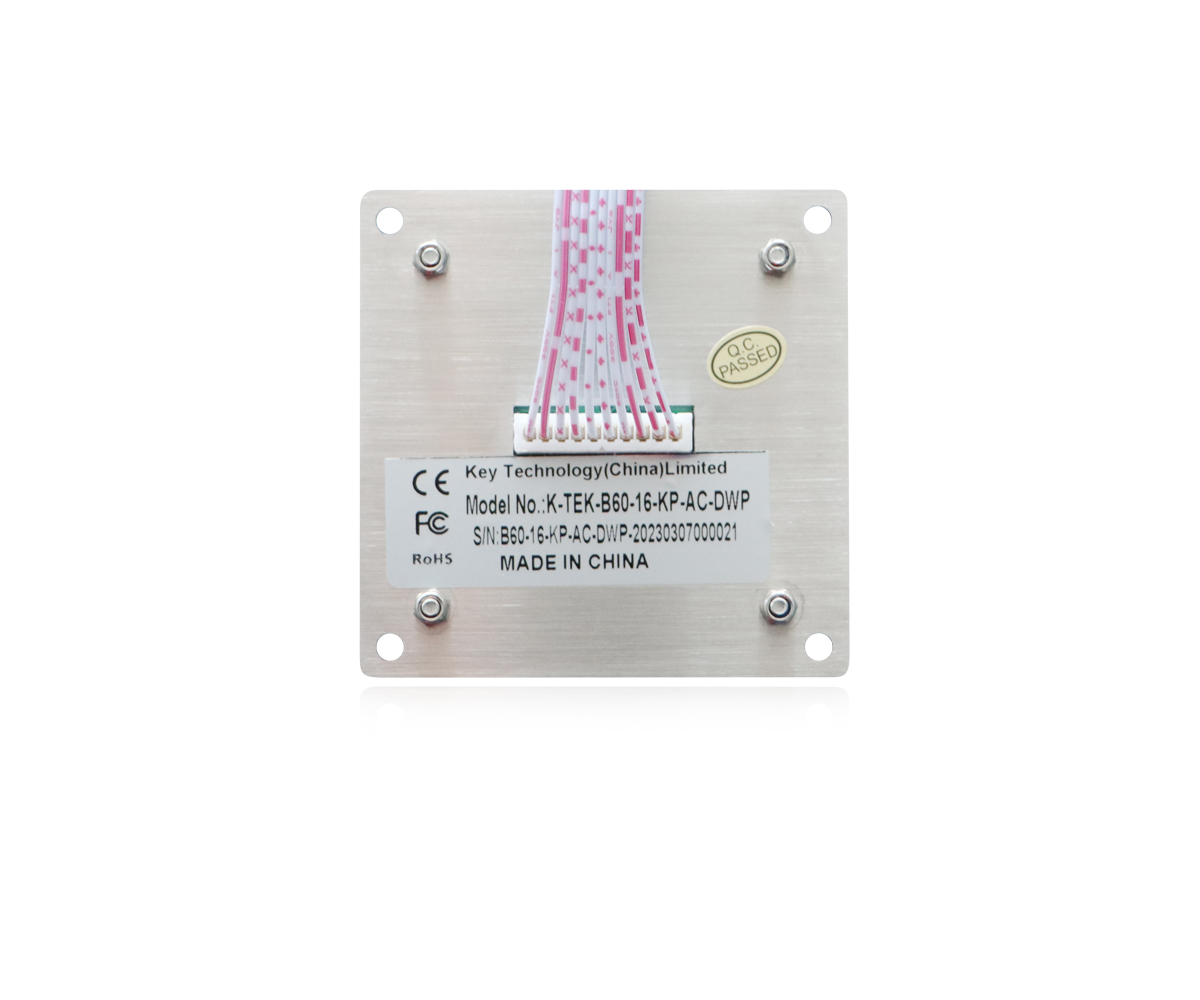

with short stroke 0.45mm with excellent tactile feeling for stable and accurate data input, high quality durable rear stainless steel plate with mounting
holes and water-tight gasket for easy mounting and tightening to enclosure or panel. With Industrial Backlight (red/blue/white/green) optional. Which is
good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc.
DIMENSIONS: 60.0mm × 60.0mm (front panel)
EN 55032:2015 EN 55035:2017
> 5 years
Switch Contact Material
Gold-on-Gold key switch technology PCB
All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos-To be confirmed).
1.5mm thickness super quality brushed stainless steel
1.0mm thickness super quality stainless steel

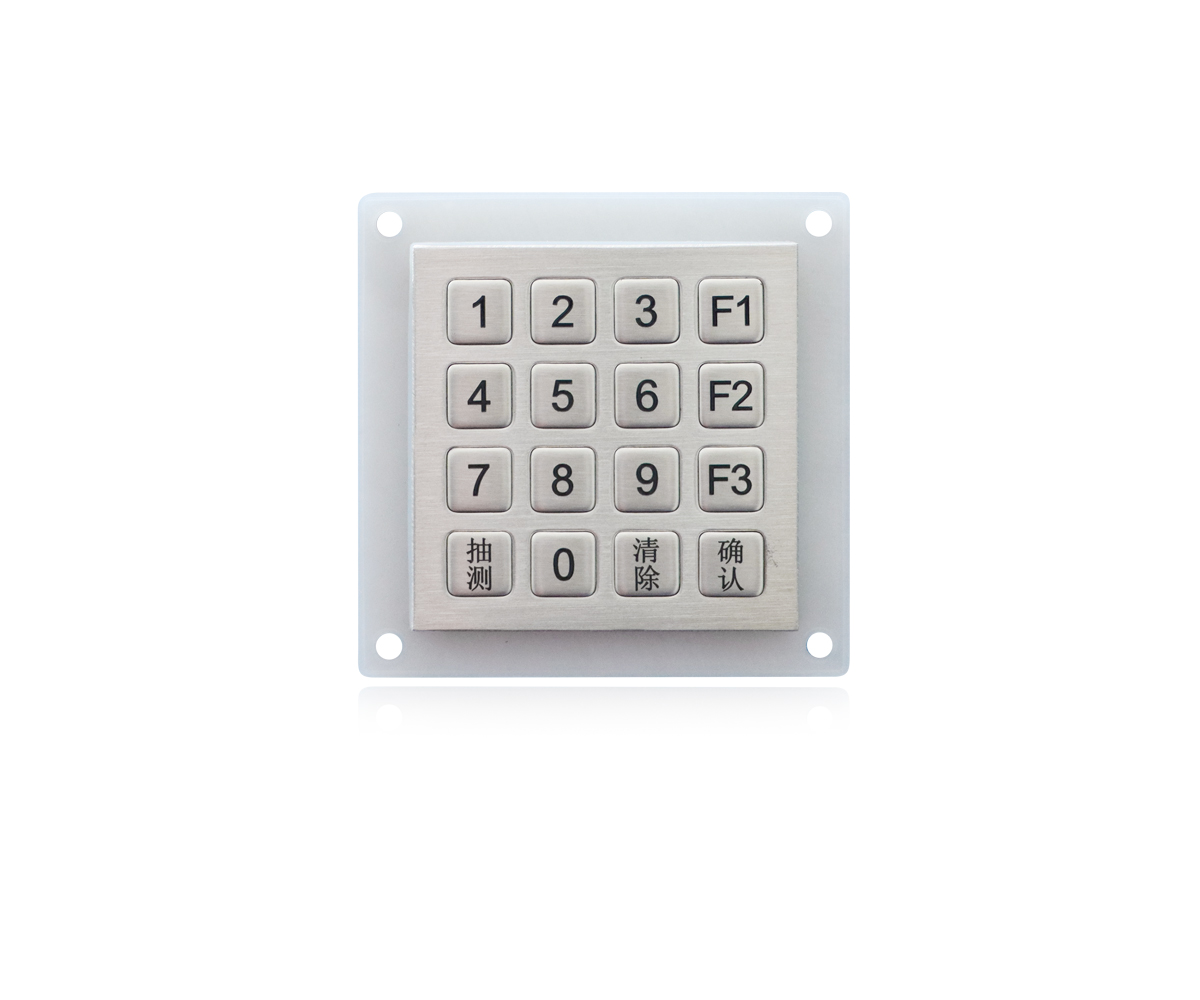

16 keys, 1.50mm thickness super quality SUS304 brushed stainless steel flat key.
Key top style
Non-protuberant rectangular keys, laser engraved & etched legends & raised braille on keys
10.0mm x 10.0mm for normal keys
2.5N±0.2N for key 10.0mm x 10.0mm (pressure point)
more than 1 million of operations
-20℃ to +65℃
-30℃ to +75℃
96 hours, IEC 60512-6
Damp heat test at +40℃
21 days, IEC 60512-6
Dry heat test at +85℃
10 days, IEC 60512-6
RoHS Compliant, CE and FCC, ESD
>1 million actuations
Industrial, coal and mine, medical, bank kiosk and self service terminal, public access,
explosion-proof automation, oil and gas etc.
