Product Detail

K-TEK-M98TP-DWT-151B-25KV-DWP

Category: Touchpad
Key Number: 2 keys
Key Travel: 1.20mm±0.10mm
Interface: USB/PS2 optional
Key Switch: Carbon-on-gold
Protection Level: IP65
Mounting Solution: Top panel mount
Operating Temperature: -40℃~+75℃
Application: Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc.
Description
Download

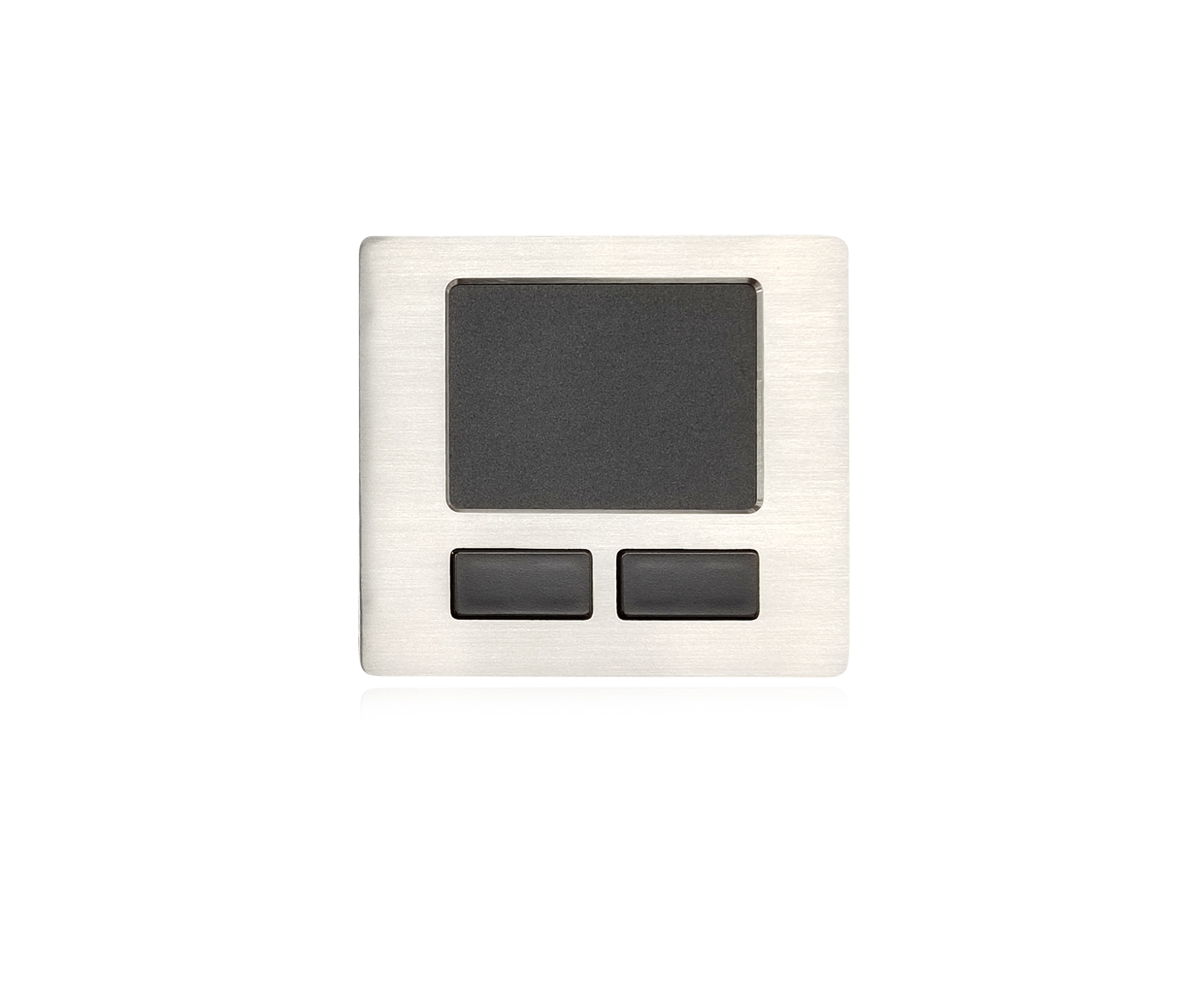

DESCRIPTION: IP65 dynamic sealed and stainless steel ruggedized tough touchpad with two high quality fully sealed resin mouse buttons,

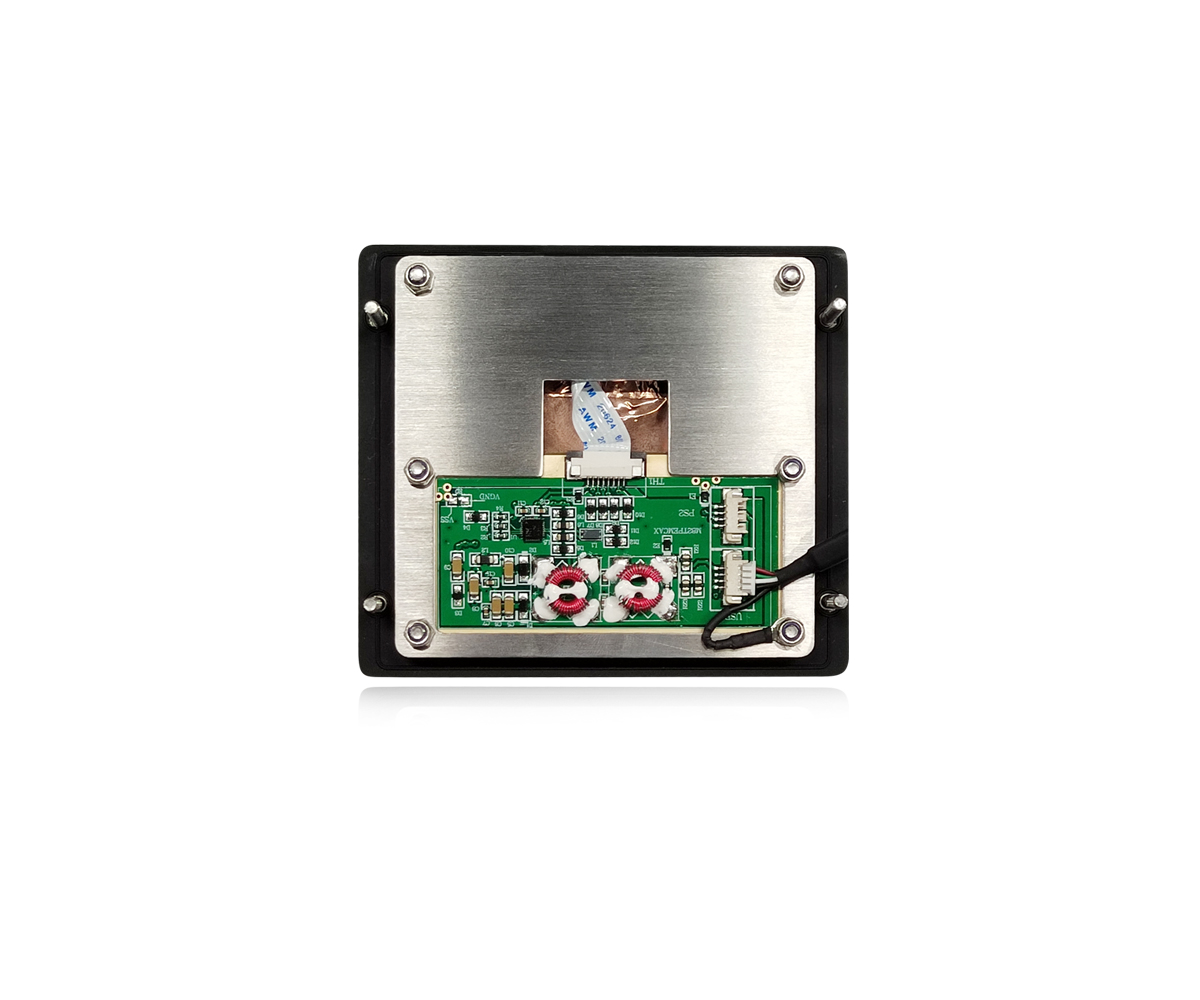

stainless steel front panel with threaded bolts for top panel mounting solution. Which is good for outdoor application with direct rain and very

harsh environments with humidity, much dynamic water,oil, dirt, salt mist metc, no rust risk and anti-salt spray corrosion. Working temperature

(-40℃ to +75℃), meet MIL-STD-461G (EMC,EMI,EMS, ESD) and MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus,

humidity etc.), which canalso meet the critical military standards in these 10 aspects: reliability, safety, maintainability, testability, supportability,

environmental adaptability, stability, compatibility, consistency, and continuity.

DIMENSIONS: 98.0mm x 88.0mm (L x W)


MECHANICAL DATA

Keys

2 keys

Key technology

Carbon-on-Gold key switch technology

Key travel

1.20mm±0.10mm

Actuation Force

2.0N±0.2N

Switch life

more than 5 million of operations

Touch pad

sealed and ruggedized tough touchpad

Touchpad cover

Composite

More than Lifetime 10 million strokes

Mutual capacitance sensing

X/Y axis location detection resolution

40 Counts /mm

X/Y position report

relative

Output (self-detectable depending on cable)

PS2 or USB

Tracking speed

Maximum 1,016 m/sec

G.W.

≈0.50KGs

ELECTRICAL DATA

Supply Voltage

DC +5V±5%

Current Rating

30mA

Lifespan

> 5 years

Interface

PS2, USB available

OS

All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).

Meet MIL-STD-461G with EMC (Electro Magnetic Compatibility) etc:

1

CE101 25Hz - 10kHz Conducted Emissions, Audio   Frequency Currents, Power leads

2

CE102 10kHz -10MHz Conducted Emissions, Radio Frequency Potentials, Power leads

3

CS101 25Hz - 150kHz Conducted Susceptibility, Power Leads

4

CS106 Conducted Susceptibility, Transients, Power Leads

5

CS112 Electrostatic Discharge Susceptibility

6

CS114 4kHz -400MHz Conducted Susceptibility, Bulk Cable injection

7

CS115 Conducted Susceptibility, Bulk Cable injection, Impulse Excitation

8

CS116 10kHz - 100MHz Conducted Susceptibility, Damped Sinusoidal Transients,

Cables and Power Leads

9

RE101 25Hz -100kHz Radiated Emissions, Magnetic Field

10

RE102 10kHz - 18GHz   Radiated Emissions, Electric Field

11

RS101 25HZ - 100kHz Radiated Susceptibility, Magnetic Field

12

RS103 10kHz - 40GHz Radiated Susceptibility, Electric Field

MIL-STD-810F (wide temperature, shock, vibration, humidity).

ENVIRONMENTAL ADAPTABILITY

Operating temperature

-40℃ to +75℃

Storage temperature

-45℃ to +80℃

Operating RH

100%

Atmospheric pressure

60-106Kpa

Saline mist

96 hours, IEC 60512-6

Damp heat test at +40℃

21 days, IEC 60512-6

Dry heat test at +85℃

10 days, IEC 60512-6

RELIABILITY

RoHS, CE, FCC, MIL-STD-461G (EMC, EMI,EMS,ESD) and MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus,

humidity etc.)

Protection Level

IP65

Key Lifespan

>5 million actuations

MTBF

>20000H

MTTR

<30min

APPLICATION

Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop,

UAV ground station etc.
