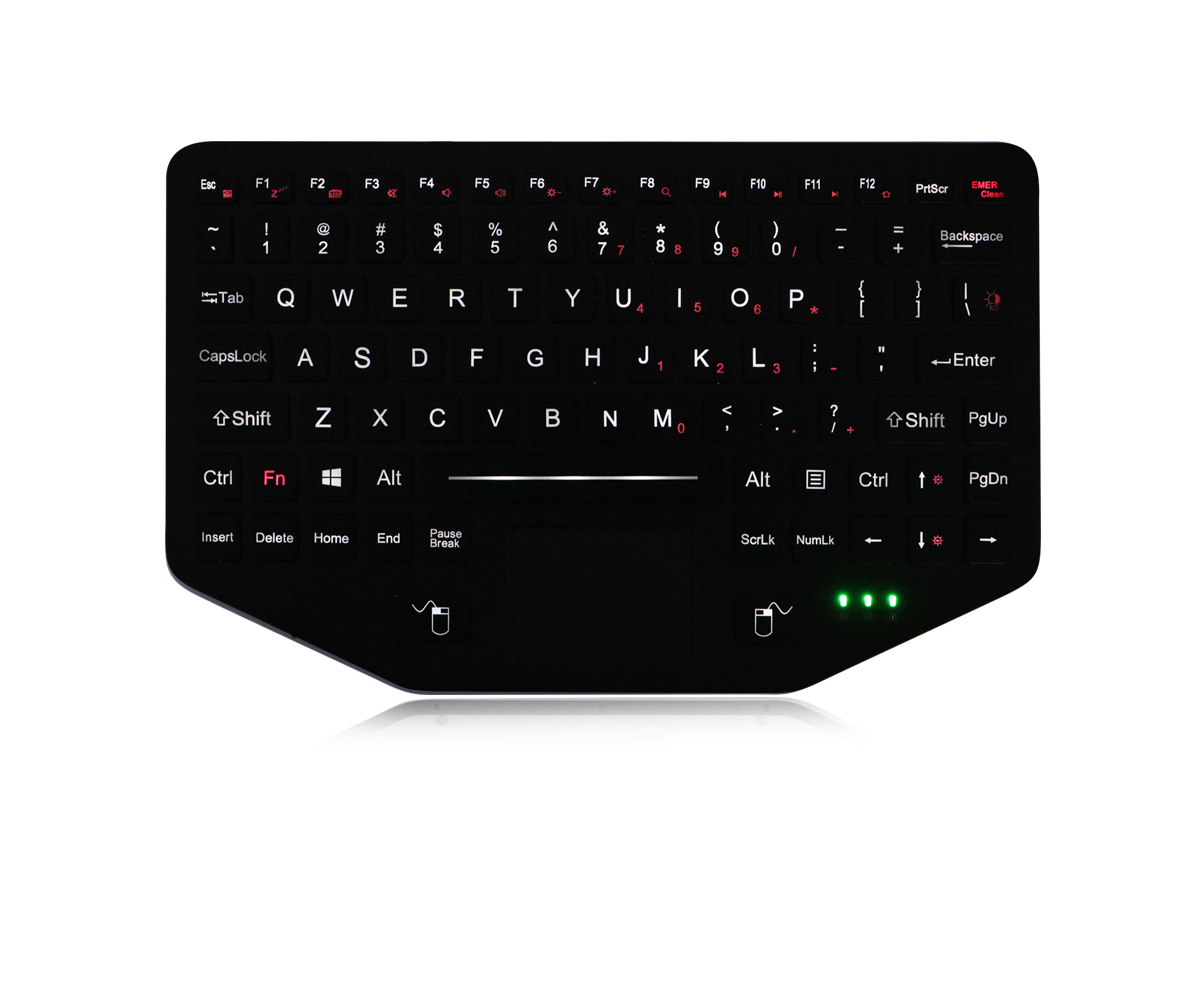

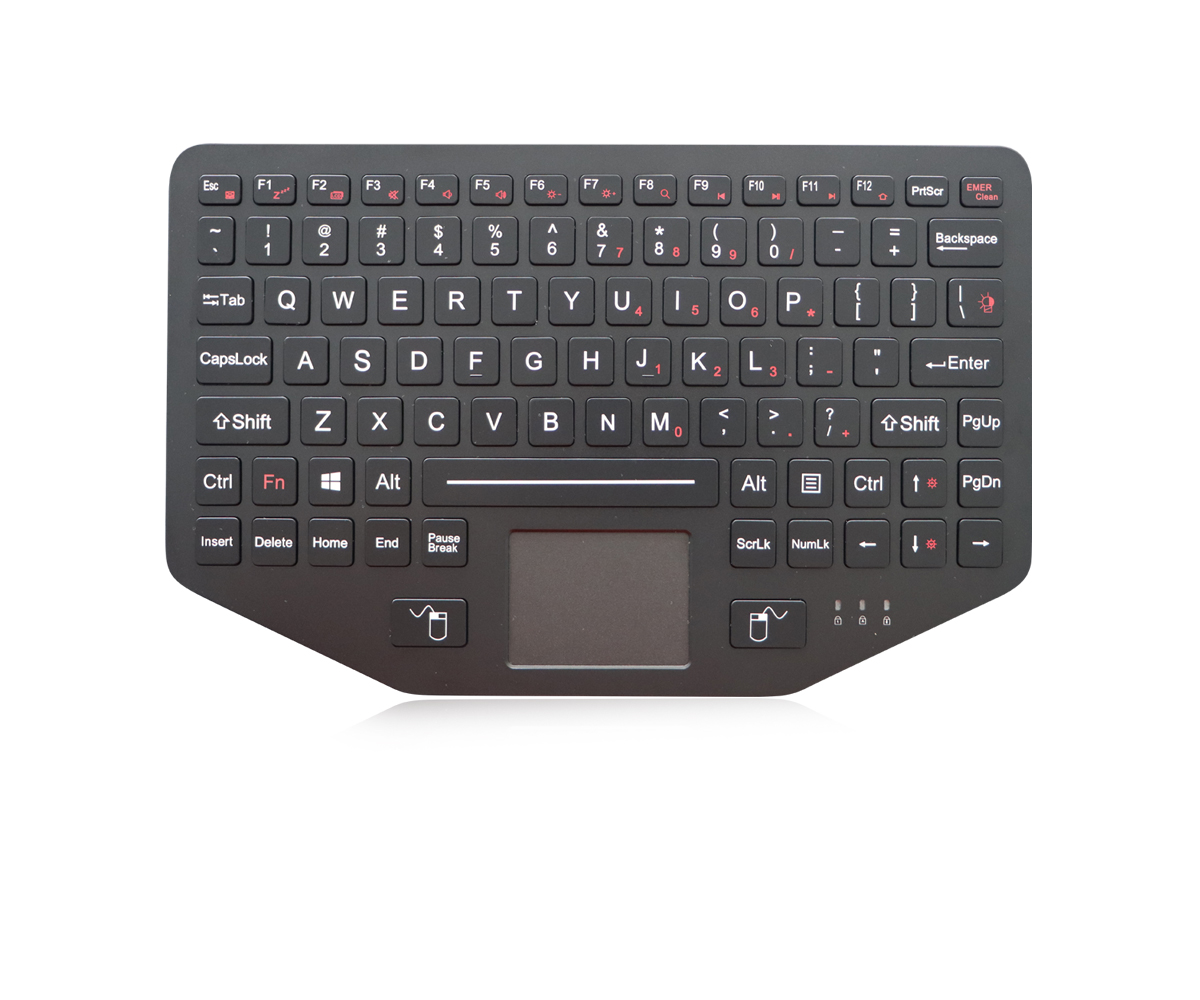

DESCRIPTION: 91 keys IP65 dynamic waterproof sealed and rugged durable embedded wide temperature keyboard with polymer keys and integrated touchpad, with built-in military PCB. 12 function keys(F1, F2, ... F12) on the top line. Which is made of CNC aluminum alloy front plate + PC key caps + carbon-on-gold key switch technology PCB, with 1.20mm key travel with extremely good tactile feeling for fast and accurate data input without any noise. One complete silicone rubber along the top panel for easy mounting & sealing tightly with cabinet, top panel mount solution. FN + Clean combination keys for easy cleaning without taking the keyboard away from PC, and avoid mis-operation or mis-typing, which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, salt mist etc. Adjustable white backlight included, built to meet MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.) Which can also meet the critical military standards in these 10 aspects: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity. Dimensions: 285.00mm x 179.69mm (L x W)
MECHANICAL DATA | Key | 91 keys (including 2 mouse buttons) | Key top style | Protuberant rectangular keys, laser engraved & etched legends are available | Key technology | Carbon-on-gold key switch technology | Key size | 14.2mm x 10.0mm for FN keys,18.6mm x 15.4mm for Tab key, 25.0mm x 15.4mm for Caps lock key, 96.6mm x 15.4mm for Space bar | Key travel | 1.20mm±0.10mm | Actuation Force | 1.0N±0.2N for normal keys and 1.5N±0.2N for Enter/Backspace/ Shift/Caps lock/Tab etc. keys | Switch life | more than 5 million of operations. | Touch pad | sealed and ruggedized tough touchpad | Touchpad cover | Composite | More than Lifetime 10 million strokes | Mutual capacitance sensing | X/Y axis location detection resolution | 40 Counts /mm | X/Y position report | relative | Output (self-detectable depending on cable) | PS2 or USB | Tracking speed | Maximum 1,016 m/sec | Power supply voltage | 5VDC ± 0.25V | Current rating (active mode) | < 10 mA | G.W. | ≈1.0kgs | ELECTRICAL DATA | Supply Voltage | DC +5V±5% | Current Rating | 50mA when backlight is off, 300mA with backlight on | Meet MIL-STD-461G with EMC (Electro Magnetic Compatibility) etc.: | 1 | CE101 25Hz - 10kHz Conducted Emissions, Audio Frequency Currents, Power leads | 2 | CE102 10kHz -10MHz Conducted Emissions, Radio Frequency Potentials, Power leads | 3 | CS101 25Hz - 150kHz Conducted Susceptibility, Power Leads | 4 | CS106 Conducted Susceptibility, Transients, Power Leads | 5 | CS112 Electrostatic Discharge Susceptibility | 6 | CS114 4kHz -400MHz Conducted Susceptibility, Bulk Cable injection | 7 | CS115 Conducted Susceptibility, Bulk Cable injection, Impulse Excitation | 8 | CS116 10kHz - 100MHz Conducted Susceptibility, Damped Sinusoidal Transients, Cables and Power Leads | 9 | RE101 25Hz -100kHz Radiated Emissions, Magnetic Field | 10 | RE102 10kHz - 18GHz Radiated Emissions, Electric Field | 11 | RS101 25HZ - 100kHz Radiated Susceptibility, Magnetic Field | 12 | RS103 10kHz - 40GHz Radiated Susceptibility, Electric Field | MIL-STD-810F (wide temperature, shock, vibration, humidity). | Lifespan | > 5 years | Interface | USB/PS2 optional | OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). | ENVIRONMENTAL ADAPTABILITY | Operating temperature | -40℃ to +75℃ | Storage temperature | -45℃ to +85℃ | Saline mist | 96h, IEC60512-6 | Damp heat test at +40℃ | 21 days, IEC 60512-6 | Dry heat test at +85℃ | 10 days, IEC 60512-6 | Humidity | 100% | Atmospheric pressure | 60-106Kpa | RELIABILITY | RoHS compliant, CE and FCC certified, MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.) | Protection Level | IP65 dynamic (front panel) | Vandal resistant | IK09 | Key Lifespan | >5 million actuations | MTBF | >20000H | MTTR | <30min | APPLICATION | Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc. |
|
