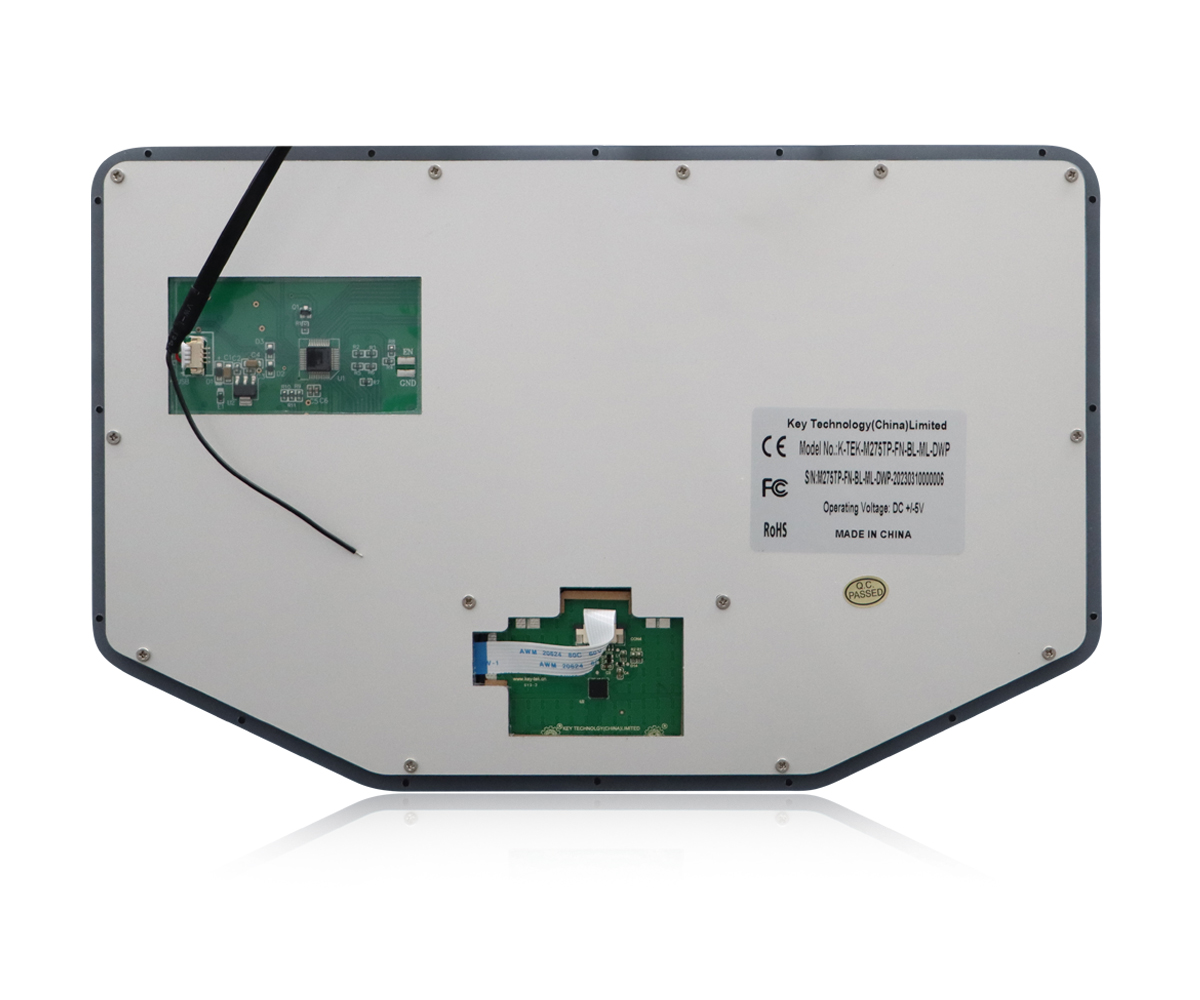

DESCRIPTION: 91 keys IP65 dynamic sealed and rugged durable embedded military keyboard with polymer keys
and touchpad. 12 function keys (F1, F2, ... F12) on the top line for easy operation. which is made of CNC aluminum
alloy front plate + PC key caps + rubber contact + ultra-thin control board, with carbon-on-gold key switch technology
with 1.20mm key travel with extremely good tactile feeling for fast and accurate data input without any noise. One
complete silicone rubber along the top panel for easy mounting & sealing tightly with cabinet. FN + Clean combination
keys for easy cleaning without taking the keyboard away from PC and avoid mis-operation or mis-typing. It is good for
outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, salt mist etc.
Top panel mount solution. Adjustable white backlight included. Built to meet MIL-STD-810F (wide temperature, shock,
salt mist, vibration, fungus, humidity etc.), MIL-STD-461G (EMC, EMI, EMS, ESD) optional. Which can also meet the
critical military standards in these 10 aspects: reliability, safety, maintainability, testability, supportability, environmental
adaptability, stability, compatibility, consistency, and continuity.
DIMENSIONS: 285.0mm x 179.7mm ( L x W )
MECHANICAL DATA |
Actuator/keys | 91 keys (including 2 mouse buttons) |
Key top style | Protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available |
Key technology | Carbon-on-gold key switch technology |
Key Size | 14.6mm x 15.4mm for normal keys, 30.4mm x 15.4mm for enter key, 13.8mm x 9.6mm for FN key, 96.2mm x 15.4mm for space bar |
Key travel | 1.20mm±0.10mm |
Actuation Force | 1.0N±0.2N for key 14.6mm x 15.4mm (pressure point ), 1.5N±0.2N for key 30.4mm x 15.4mm (pressure point) |
Switch life | more than 5 million of operations |
Touch pad | sealed and ruggedized tough touchpad |
Touchpad cover | Composite |
More than Lifetime 10 million strokes |
Mutual capacitance sensing |
X/Y axis location detection resolution | 40 Counts /mm |
X/Y position report | relative |
Output (self-detectable depending on cable) | PS2 or USB |
Tracking speed | Maximum 1,016 m/sec |
Power supply voltage | 5VDC ± 0.25V |
Current rating (active mode) | < 10 mA |
G.W. | ≈1.0KGs |
ELECTRICAL DATA |
Supply Voltage | DC +5V±5% |
Current Rating | 50mA when backlight is off, 300mA with backlight on. |
EMC Standard | EN 55032:2015 EN 55035:2017 |
Lifespan | > 5 years |
Interface | USB/PS2 optional |
OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
ENVIRONMENTAL ADAPTABILITY |
Operating temperature | -40℃ to +75℃ |
Storage temperature | -45℃ to +85℃ |
Operating RH | 100% |
Atmospheric pressure | 60-106Kpa |
Saline mist | 96 hours, IEC 60512-6 |
Damp heat test at +40℃ | 21 days, IEC 60512-6 |
Dry heat test at +85℃ | 10 days, IEC 60512-6 |
RELIABILITY |
RoHS Compliant, CE and FCC, ESD, MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.) |
Protection Level | IP65 dynamic (front panel) |
Vandal resistant | IK09 |
Key Lifespan | >5 million actuations |
MTBF | >20000H |
MTTR | <30min |
APPLICATIONS | Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc. |
