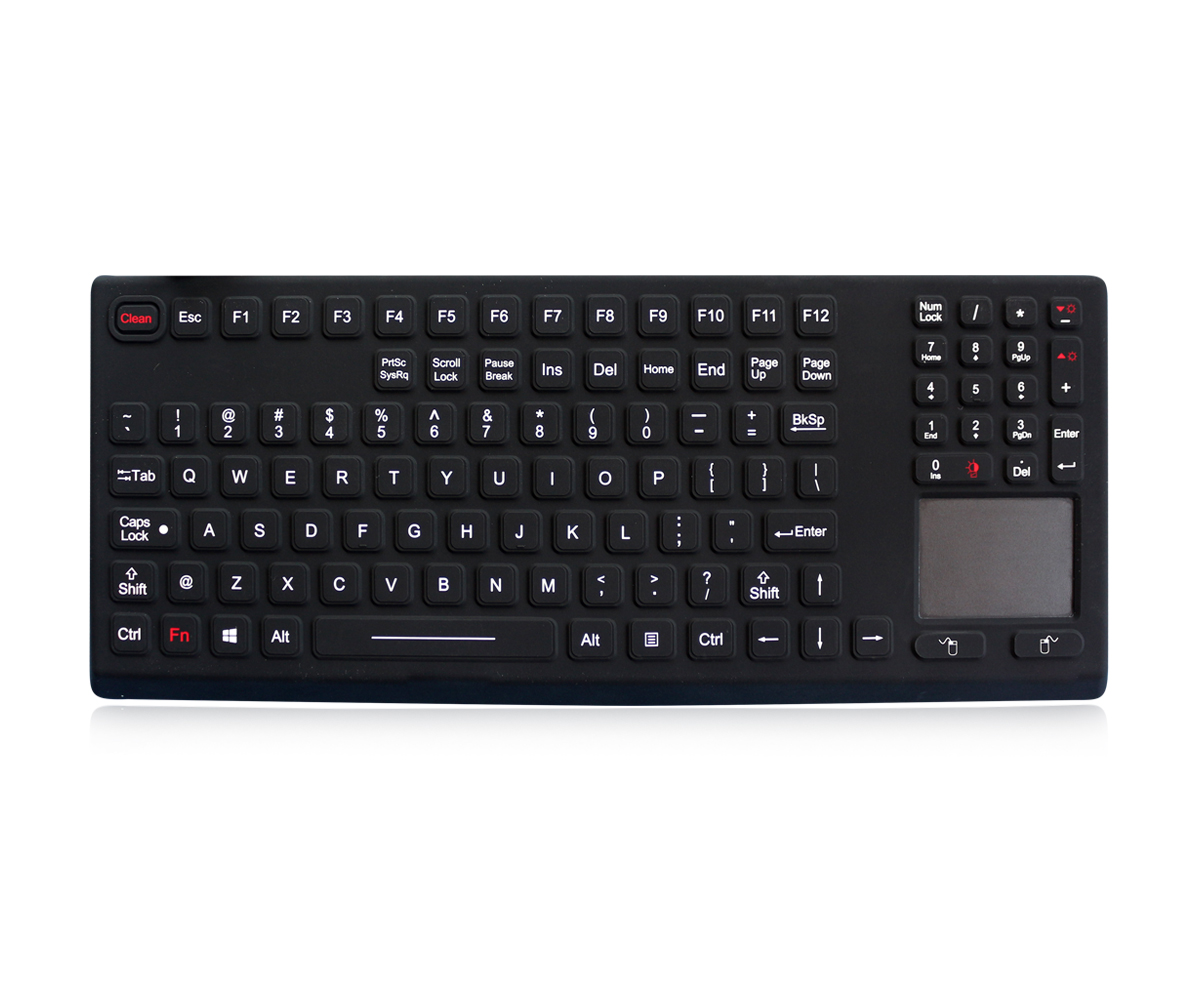

Description: 108 keys IP68 dynamic rated & ruggedized industrial silicone rubber Hygienic keyboard with full keyboard
functionalities, integrated numeric keypad, sealed & ruggedized tough touchpad for fast and accurate cursor position,
function keys (F1, F2...F11, F12) are on upper line; with industrial PCB with carbon-on-gold key switch technology with key
stroke (1.20mm) with extremely good tactile feeling for fast and accurate data input without any noise, with durable coating &
antimicrobial keyboard surface withstand to most chemicals and liquids under harsh environment, Clean key for easy cleaning
via lock/disable the keyboard without needing to take away the keyboard from PC, movable stand alone desk top version

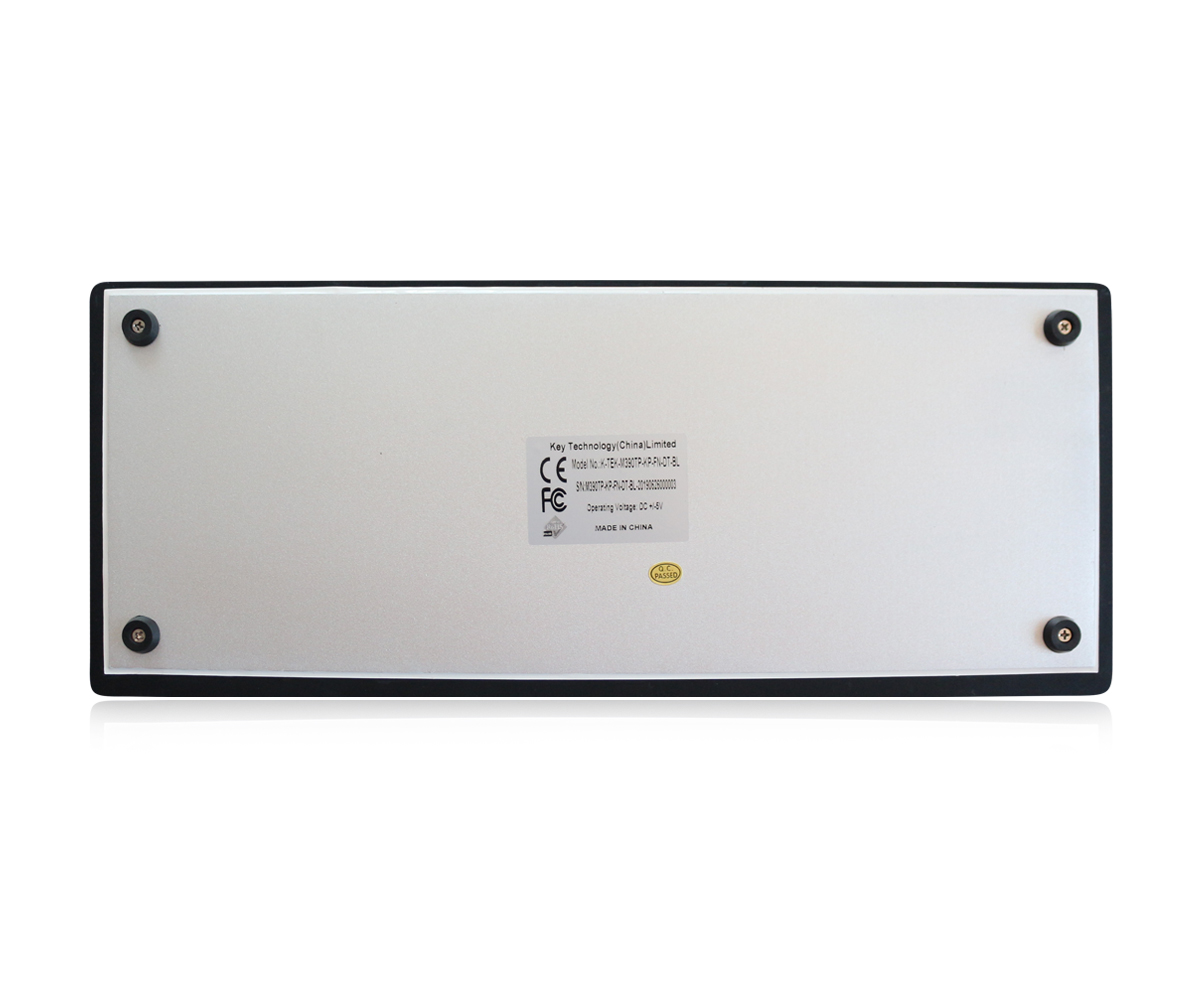

sealed & ruggedized with 5.0mm thickness aluminum back plate with sand blasting & oxygenation surface treatment,

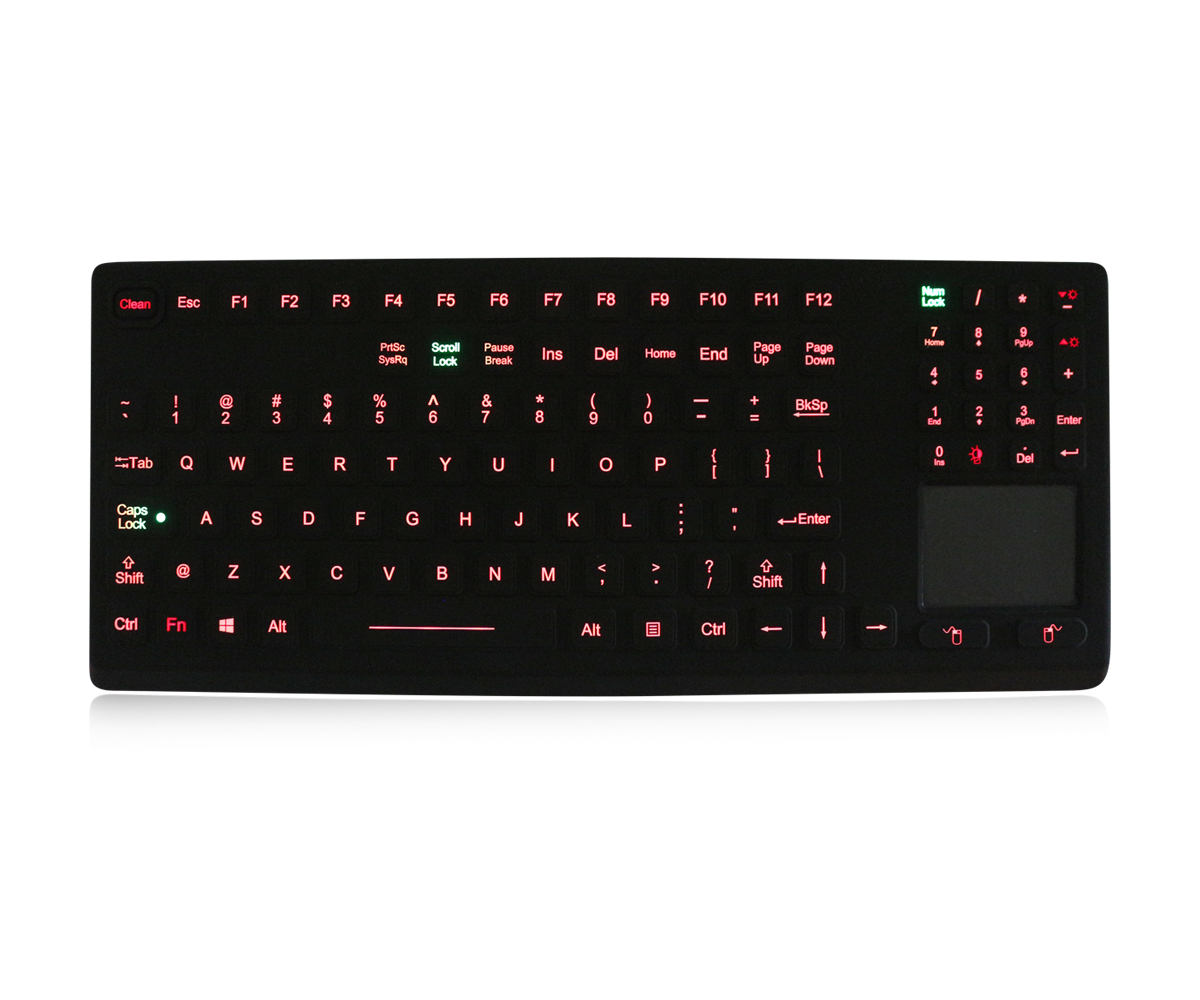

adjustable industrial backlight included.
Dimension:390.0mm x 159.0mm x 19.0mm (L x W x H)
108 keys (including 2 mouse buttons)
Key top style
Protuberant rectangular keys with tactile feeling.
1.5N±0.2N (pressure point )
more than 5 million of operations.
1.3mm thick PCB, containing polyester film
More than Lifetime 10 million strokes
Mutual capacitance sensing
X/Y axis location detection
40 Counts /mm
X/Y position report
depending on cable)
PS2 or USB
Maximum 1,016 m/sec
Power supply voltage
5V ± 0.25V
Current rating (active mode)
< 10 mA
50mA when backlight is off, 300mA with backlight on
EN 55032:2015 EN 55035:2017
> 5 years
Switch Contact Material
Carbon-on-Gold key switch technology with gold PCB
PS2, USB available
Standard 2.0m, customized length available.
All Windows, Linux, Unix, Mac OSX, Vxworks, Android,
(U-cos--To be confirmed).
-20℃ to +65℃
-30℃ to +75℃
Damp heat test at +40℃
21 days, IEC 60512-6
Dry heat test at +85℃
10 days, IEC 60512-6
RoHS compliant, CE and FCC certified
>5 million actuations
Vehicle, aerospace, naval, defense, maritime, Radar, console,
portable rugged laptop, UAV ground station etc.
