Product Detail

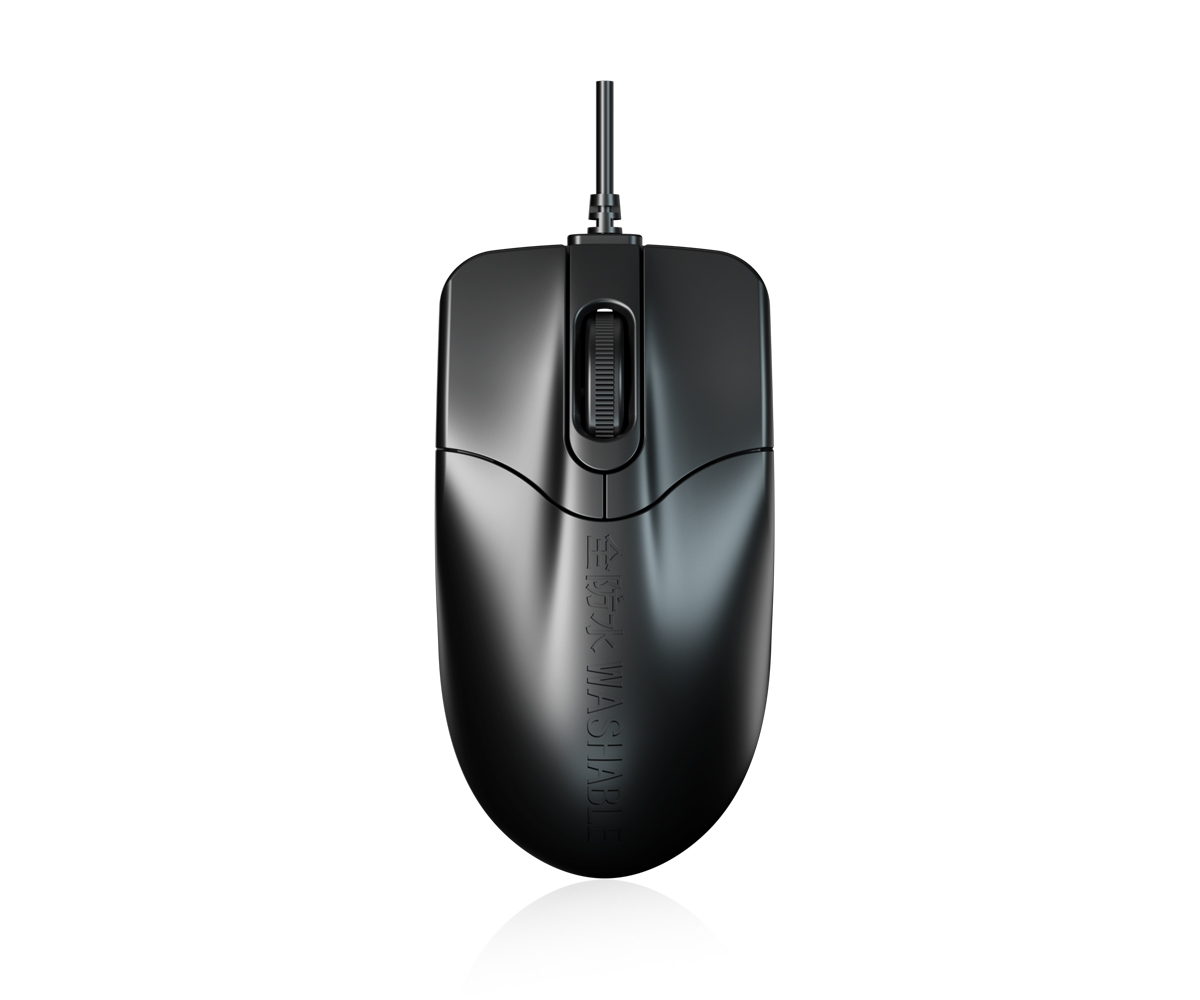

K-TEK-M58-OMS-NV-151B-DT-DWP

Category: Waterproof mouse
Key Number: 4 keys
Interface: USB
Key Switch: Micro switch + plastic mouse buttons
Protection Level: IP68
Mounting Solution: Flat desk top solution
Operating Temperature: -40ºC to +55ºC
Application: Industrial, Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged  laptop, UAV ground station, GCS, medical and pharmaceutical etc.
Description
Download

DESCRIPTION: IP68 dynamic rated sealed and rugged waterproof professional optical mouse, DPI can be adjusted and switched by mouse button, built-in wide temperature military grade PCB electronics controller, with extremely good tactile feeling for left and right mouse button, durable coating & antimicrobial surface to withstand most chemicals and liquids under harsh environments. The mouse is full sized and features a 4-buttons which are designed for right & left clicking and scrolling up and down just like a conventional non-waterproof mouse, as well as one key to adjust DPI; IP68 waterproof and dust proof rating, USB interface. Which meets MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (high and low temperature, low pressure, humidity, vibration, shock, temperature shock, drop test etc), as well as critical military standards in these 10 aspects: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity.

DIMENSIONS: 110.0mm x 58.3mm x 37.4mm (L x W x H)


MECHANICAL DATA

Actuator/keys

4 keys (Left+right mouse key+Scrolling key+DPI adjustable key)

Key Switch Technology

Micro switch + plastic mouse buttons

Key Lifespan

≤3 millions actuation

Actuation Force

0.55±0.15N

Key Gram Force

50±10gf

Resolution

400-800-1200-1600DPI

Actuation Pressure

1.0N-2.0N

Rotary Encoder Lifespan

0.8 millions scrolling

G.W.

0.25KGs

ELECTRICAL DATA

Supply Voltage

DC +5V±5%

Current Rating

≈80mA

Meet MIL-STD-461G (EMC, EMI, EMS, ESD)

1

CE101 25Hz - 10kHz Conducted Emissions, Audio Frequency Currents, Power leads

2

CE102 10kHz -10MHz Conducted Emissions, Radio Frequency Potentials, Power leads

3

CS101 25Hz - 150kHz Conducted Susceptibility, Power Leads

4

CS106 Conducted Susceptibility, Transients, Power Leads

5

CS112 Electrostatic Discharge Susceptibility

6

CS114 4kHz -400MHz Conducted Susceptibility, Bulk Cable injection

7

CS115 Conducted Susceptibility, Bulk Cable injection, Impulse Excitation

8

CS116 10kHz - 100MHz Conducted Susceptibility, Damped Sinusoidal Transients, Cables and Power Leads

9

RE101 25Hz -100kHz Radiated Emissions, Magnetic Field

10

RE102 10kHz - 18GHz Radiated Emissions, Electric Field

11

RS101 25HZ - 100kHz Radiated Susceptibility, Magnetic Field

12

RS103 10kHz - 40GHz Radiated Susceptibility, Electric Field

MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.)

Lifespan

> 5 years

Interface

USB, other interfaces can be customized

OS

All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).

ENVIRONMENTAL ADAPTABILITY

Operating temperature

-40℃ to +55

Storage temperature

-45℃ to +60

Operating RH

95%

Atmospheric pressure

60-106Kpa

Saline mist

96 hours, IEC 60512-6

Damp heat test at +40℃

21 days, IEC 60512-6

Dry heat test at +85℃

10 days, IEC 60512-6

RELIABILITY

RoHS Compliant, CE and FCC, MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus,

humidity etc.)

Protection Level

IP68

MTBF

>20000H

MTTR

<30min

APPLICATION

Industrial, Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop,

UAV ground station, GCS, medical and pharmaceutical etc.
