Product Detail

K-TEK-A120KP-DWP

Category: Stainless steel keypad
Key Number: 16 keys
Key Travel: 1.50mm±0.10mm
Backlight: No
Interface: PS2, USB, RS232, RS485 available
Key Switch: Carbon-on-gold
Protection Level: IP65 dynamic (front panel)
Mounting Solution: Top panel mount
Operating Temperature: -20ºC to +65 ºC
Application: Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc.
Description
Download

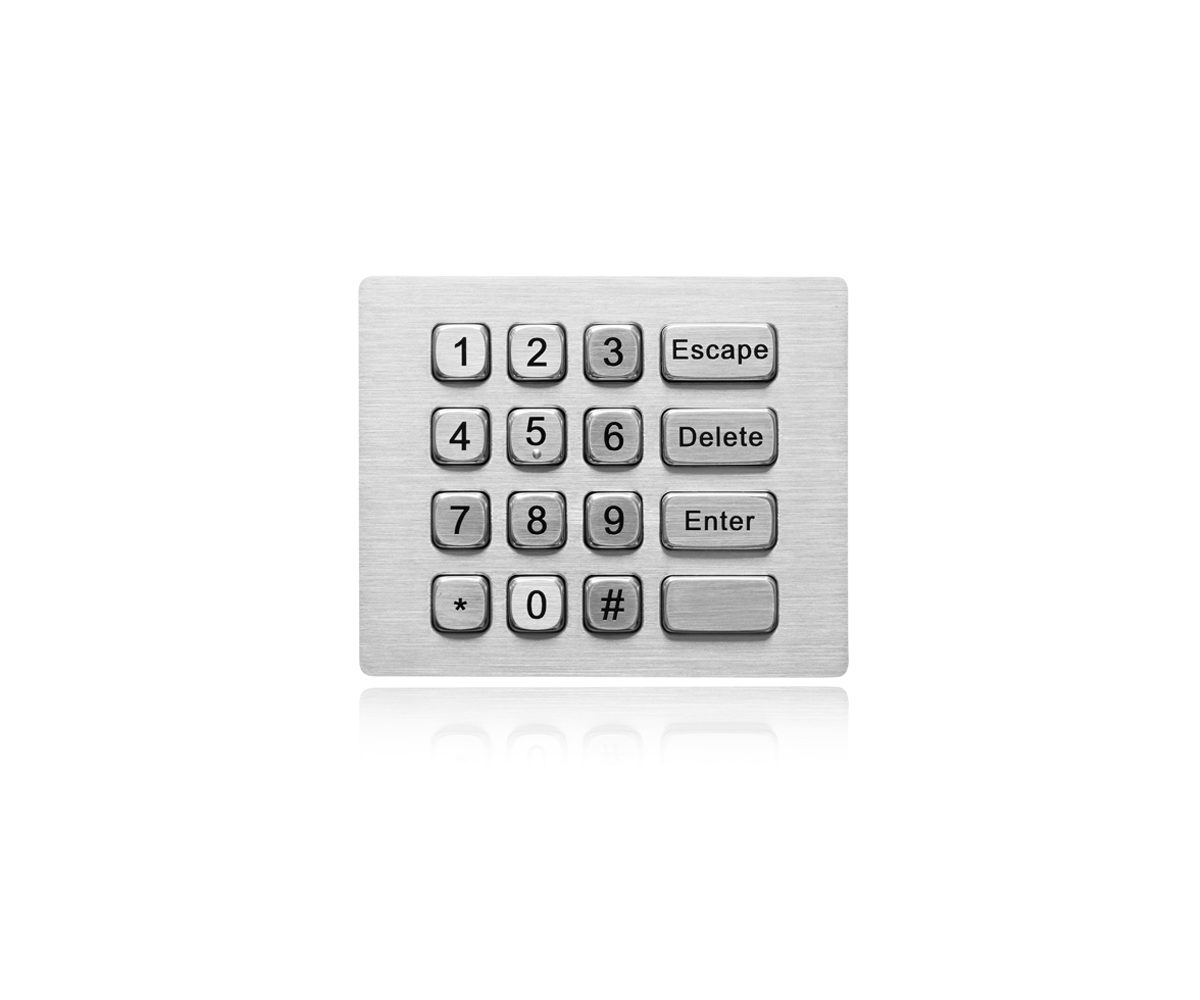

DESCRIPTION: 16 keys compact format IP65 dynamic water proof and vandal proof stainless steel industrial keypad

with fully sealed industrial PCB with industrial electronics controller shielded & protected by stainless steel housing, with

industrial PCB with carbon-on-gold key switch technology with stroke (1.5mm) with extremely good tactile feeling for fast

and accurate data input without any noise, top stainless steel plate with welded studs and water-tight gasket for easy mounting

and tightening to enclosure or panel. Industrial Backlight (red/blue/white/green) optional. Which is good for outdoor application

with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc.

DIMENSIONS: 120.0mm x 98.0mm (top panel)


ELECTRICAL DATA

Supply Voltage

DC +5V±5%

Current Rating

30mA

EMC Standard

EN 55032:2015   EN 55035:2017

Lifespan

> 5 years

Switch Contact Material

Carbon-on-Gold key switch technology PCB

Interface

PS2, USB, RS232, RS485 available

OS

All Windows, Linux, Unix, Mac OSX, Vxworks, Android,

(U-cos-To be confirmed).

COMMUNICATION PARAMETER

PS2/USB

1

Standard PS2/USB keyboard interface

2

16 actuators: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, Cancel, Clear, Enter,

backup key 3, 4 x 4 scanning code

RS232

1

Standard RS232 serial interface

2

Communication velocity: 9600bps

3

Data format: N, 8, 1

4

16 actuators: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, Cancel, Clear, Enter,

backup key 3, 4 x 4 scanning code.

MECHANICAL DATA

Front Plate

1.5mm thickness super quality brushed stainless steel

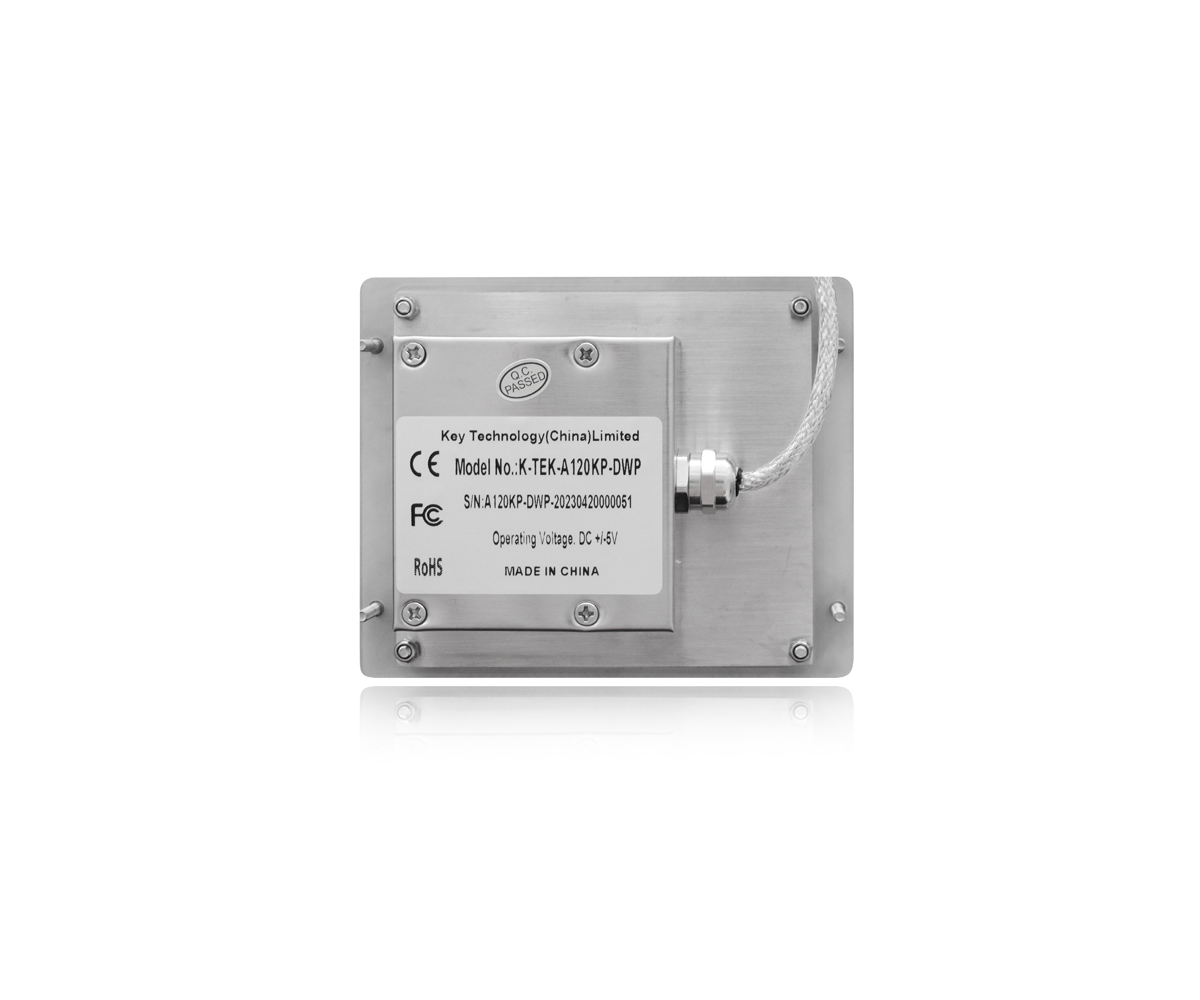

Back Plate

1.5mm thickness super quality stainless steel

Actuator/keys

16 keys, super quality SUS304 brushed stainless steel raised

key

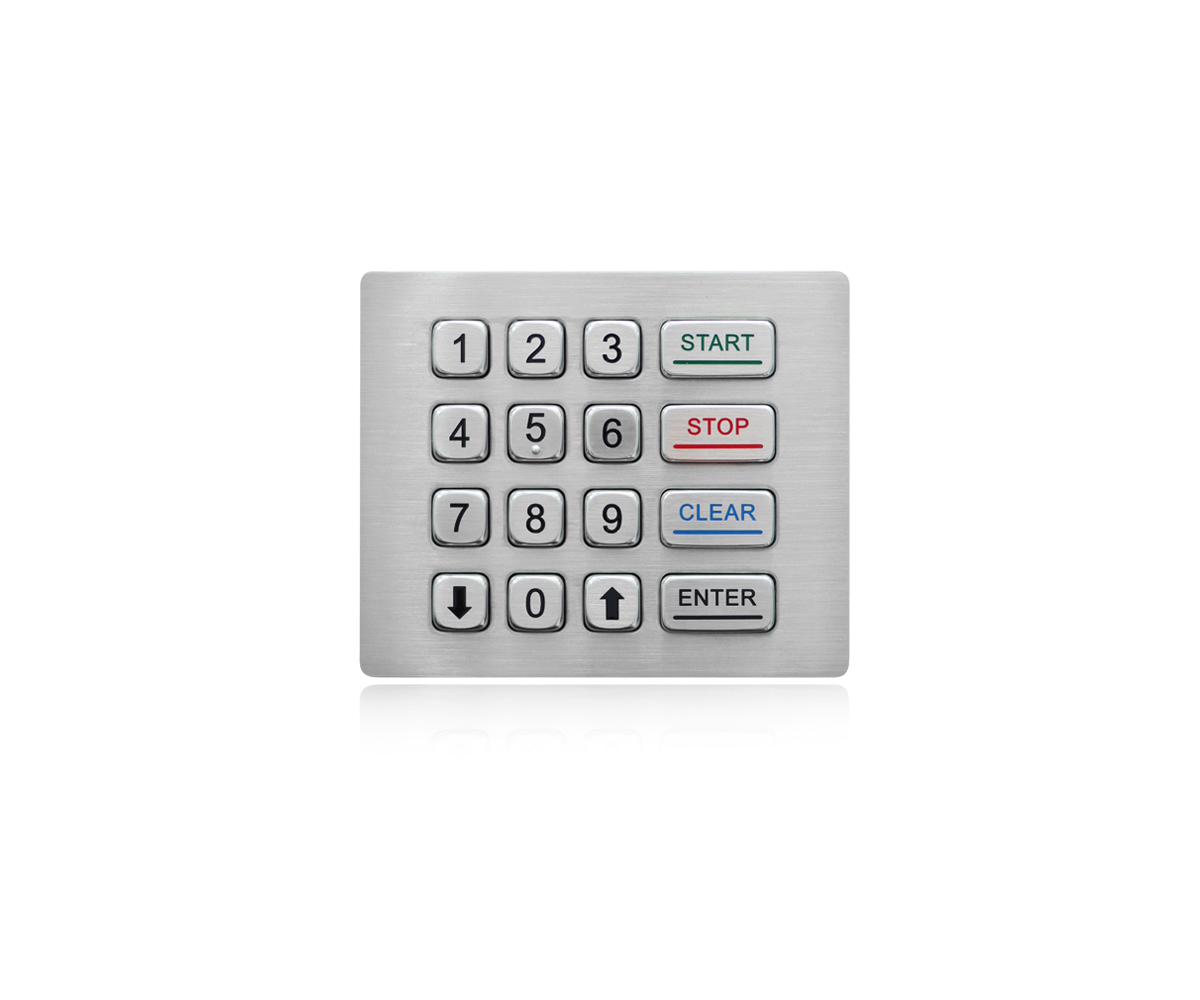

Key top style

protuberant rectangular keys, laser engraved & etched

legends & raised braille on keys are available

Key Size

14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for

function keys

Key Travel

1.5mm±0.1mm

Actuation Force

1.5N±0.2N (pressure point), 2.5N±0.2N for key 14.0mm x 28.0mm (pressure point)

Switch Life

more than 5 million of operations

G.W.

0.80KGs

ENVIRONMENTAL ADAPTABILITY

Operating Temperature

-20℃ to +65

Storage Temperature

-30℃ to +75

Operating RH

30-90%

Atmospheric Pressure

60-106Kpa

Saline Mist

96 hours, IEC 60512-6

Damp heat test at +40℃

21 days, IEC 60512-6

Dry heat test at +85℃

10 days, IEC 60512-6

RELIABILITY

RoHS Compliant, CE and FCC, ESD

Protection Level

IP65 dynamic (front panel)

Vandal Resistant

IK08

Key Lifespan

>5 million actuations

MTBF

>20000H

MTTR

<30min

APPLICATIONS

Industrial, coal and mine, medical, bank kiosk and self

service terminal, public access, explosion-proof automation,

oil and gas etc.
