Product Detail

K-TEK-M270-FN-MS-BL+TP65+2KEY

Category: Silicone keyboard
Key Number: 87 keys + 2 mouse buttons
Key Travel: 1.20mm±0.10mm
Backlight: White
Interface: USB/PS2 optional
Key Switch: Membrane key switch
Protection Level: IP65 dynamic (front panel)
Mounting Solution: Rear panel mount
Operating Temperature: -20ºC to +60ºC
Application: Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc.
Description
Download

DESCRIPTION: 87 keys IP65 dynamic sealed & ruggedized silicone rubber special professional keyboard with rugged touchpad

module and 2 external mouse keys integrated, ideal for notebooks, rugged laptops/PC and UAV drone etc. applications. 12 function

keys on top line for easy operation, using reinforced special membrane switch key technology with key stroke (1.20mm) with extremely

good tactile feeling for fast and accurate data input without any noise and error output, accurate and fast input, there will be no key

value missing, no stuck key, no repeated key value output during the keyboard operation, The keyboard built-in ultra-thin metal frame

and ultra-thin metal reinforcement bottom plate combine the keyboard seal reinforcement into a professional whole, with durable

coating & anti-microbial keyboard surface withstand to most chemicals and liquids under harsh environment, FN + Clean combination

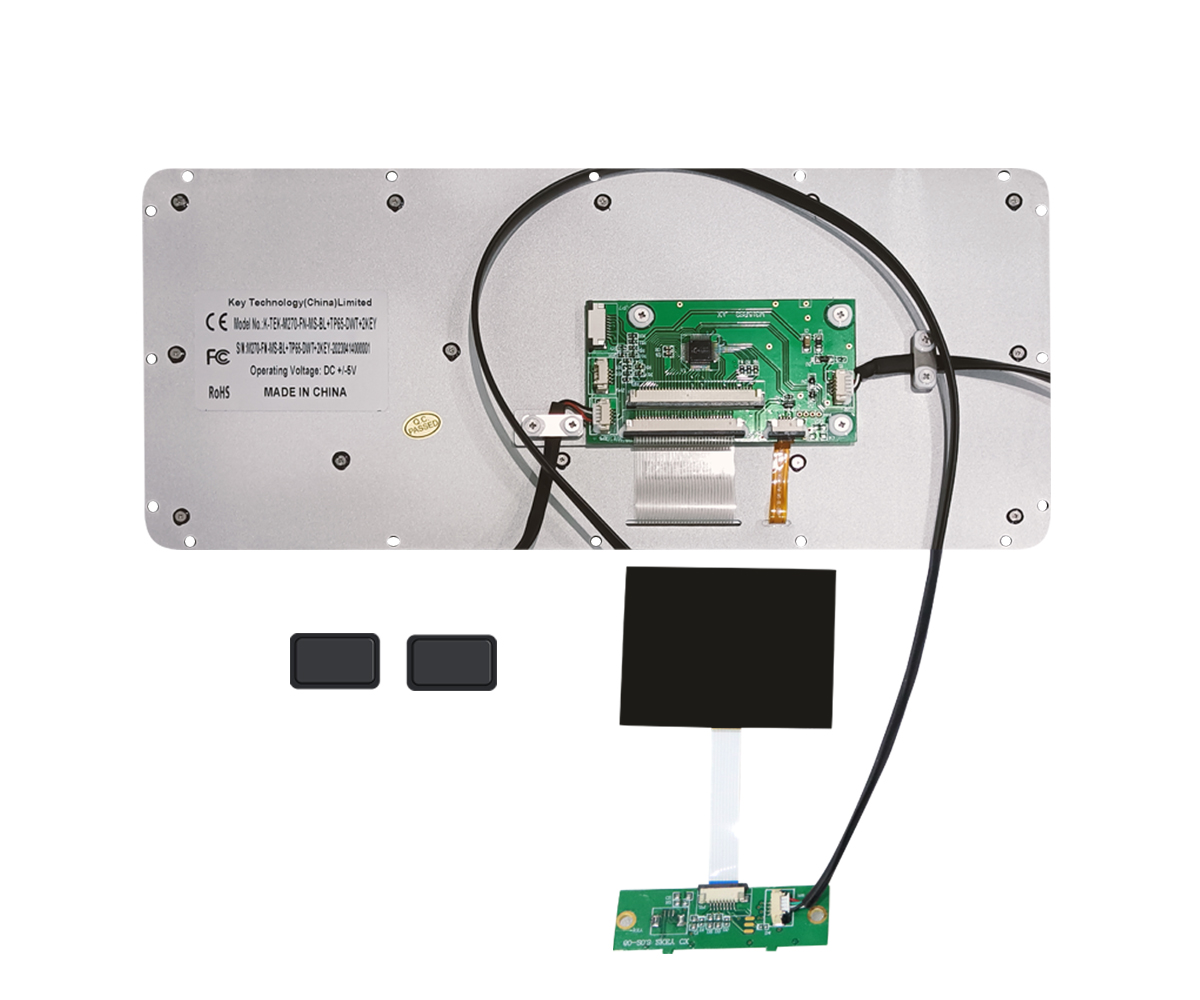

key for easy cleaning via lock/disable whole keyboard without needing to take away the keyboard from PC, panel mount with super thin

ruggedized aluminum back plate with mounting holes, adjustable industrial white backlight included. FN + End button to control keyboard

backlight and FN + or button to adjust backlight brightness. Embedded installation mode. Built to meet critical military standards in

these 10 aspects: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency,

and continuity, as well as MIL-STD-810F with high and low temperature, wet and hot, vibration, mildew Level 2, salt spray, direct rain,

direct sun, dust etc. MIL-STD-461G-EMC-EMI-EMS optional.



Dimension: Keyboard: 270.0mm x 113.0mm(L x W) Touchpad: 65.0mm x 49.0mm (L x W )


MECHANICAL DATA

Keys

87 keys + 2 mouse buttons

Key top style

Protuberant rectangular keys with tactile feeling

Key Size

12.0mm X 13.0mm for normal keys

Key travel

1.20mm±0.1mm

Actuation Force

1.2N±0.2N (pressure point )

Switch life

more than 5 million of operations

Touch pad

sealed and ruggedized tough touchpad

Touchpad cover

Composite

More than Lifetime 10 million strokes

Mutual capacitance sensing

X/Y axis location detection

resolution

40 Counts /mm

X/Y position report

relative

Output (self-detectable

depending on cable)

PS2 or USB

Tracking speed

Maximum 1,016 m/sec

Power supply voltage

5VDC ± 0.25V

Current rating (active mode)

< 10 mA

G.W.

1.20KGs

ELECTRICAL DATA

Supply Voltage

DC +5V±5%

Current Rating

50mA when backlight is off, 300mA with backlight on

EMC Standard

EN 55032:2015   EN 55035:2017

Lifespan

> 5 years

Switch Contact Material

industrial PCB with membrane key switch technology

Interface

PS2, USB available

Cable lengh

Standard 0.8m, other customized length available

OS

All Windows, Linux, Unix, Mac OSX, Vxworks, Android,

(U-cos--To be confirmed).

ENVIRONMENTAL ADAPTABILITY

Operating temperature

-20℃ to +60

Storage temperature

-30℃ to +65

Operating RH

100%

Atmospheric pressure

60-106Kpa

Saline mist

96 hours, IEC 60512-6

Damp heat test at +40℃

21 days, IEC 60512-6

Dry heat test at +85℃

10 days, IEC 60512-6

RELIABILITY

RoHS compliant, CE and FCC certified, MIL-STD-810F (wide temperature, shock, salt mist, vibration,

fungus, humidity)

Protection Level

IP65 dynamic (front panel)

Key Lifespan

>5 million actuations

MTBF

>20000H

MTTR

<30min

APPLICATIONS

Vehicle, aerospace, naval, defense, maritime, Radar, console, portable

rugged laptop, UAV ground station etc.
