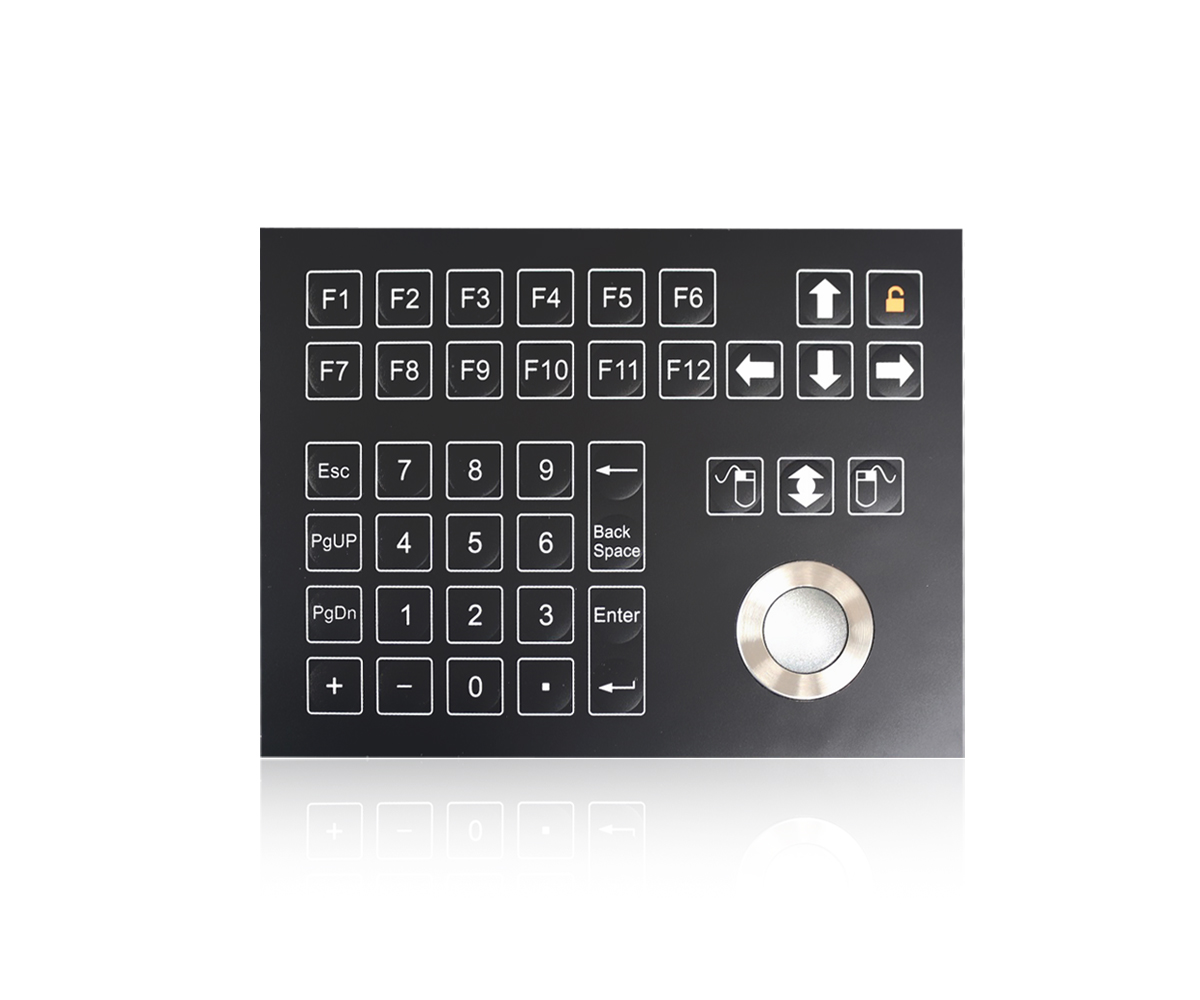

K-TEK-D185-OTB-FN-SW membrane keypad with trackball

K-TEK-D185-OTB-FN-SW membrane keypad with trackball

Category： Membrane keypad
Key Number： 38 keys (including 3 mouse buttons)
Key Travel： 0.45±0.05mm
Backlight： No
Interface： USB/PS2 optional
Key Switch： Omron micro key switch technology
Protection Level： IP65 dynamic (front panel)
Mounting Solution： Top panel mount
Operating Temperature： -20ºC to +65ºC
Ball Diameter： 25mm
Application： Industrial, marine, food and beverage, processing factory, medical and pharmaceutical, numerical control machine etc.
Description
Download

DESCRIPTION: 38 keys compact format IP65 dynamic rated membrane industrial keypad, with integrated numeric keypad and function keys on the upper line, IP68 washable 25.0mm optical trackball module with 800DPI resolutions for fast and accurate cursor position, with 3 mouse buttons for left and right and scrolling function. Industrial PCB with OMRON switch technology key switch technology with short stroke 0.45mm with extremely good tactile feeling for reliable data input, surface mounted extremely flush with anti-microbial, durable and scratch-proof polyester withstand to most chemicals and liquids under the harshest environments, ruggedized brushed stainless steel plate with shielding box to protect the whole electronics, with top panel mounted

solution.


DIMENSIONS: 185.0mm x 135.0mm (top panel)


MECHANICAL DATA

Number of keys

38 keys (including 3 mouse buttons)

Key switch Technology

OMRON switch technology with short stroke 0.45mm for stable and

accurate data input

Actuation Force

2.0N±0.2N (press point)

Key Travel

0.45±0.05mm

Mounting Type

Top panel mounting

Colors

Black

G.W.

1.0KGs

Switch life

more than 1 million of operations

Trackball

25mm stainless steel ball or hardened resin ball

Key Dimensions (print area)

11.0mm x 11.0mm

ELECTRICAL DATA

Supply Voltage

DC +5V±5%

Current Rating

50mA

EMC Standard

EN 55032:2015   EN 55035:2017

Lifespan

> 5 years

Interface

PS2, USB available

OS

All Windows, Linux, Unix, Mac OSX, Vxworks, Android,

(U-cos--To be confirmed).

ENVIRONMENTAL ADAPTABILITY

Operating temperature

-20℃ to +65℃

Storage temperature

-30℃ to +75℃

Saline mist

96h, IEC60512-6

Damp heat test at +40℃

21 days, IEC 60512-6

Dry heat test at +85℃

10 days, IEC 60512-6

Humidity

100%

Atmospheric pressure

60-106Kpa

RELIABILITY

RoHS compliant, CE and FCC certified

Protection Level

IP65 dynamic (front panel)

Key Lifespan

>1 million actuations

MTBF

>20000H

MTTR

<30min

APPLICATIONS

Industrial, marine, food and beverage, processing factory, medical and

pharmaceutical, numerical control machine etc.
