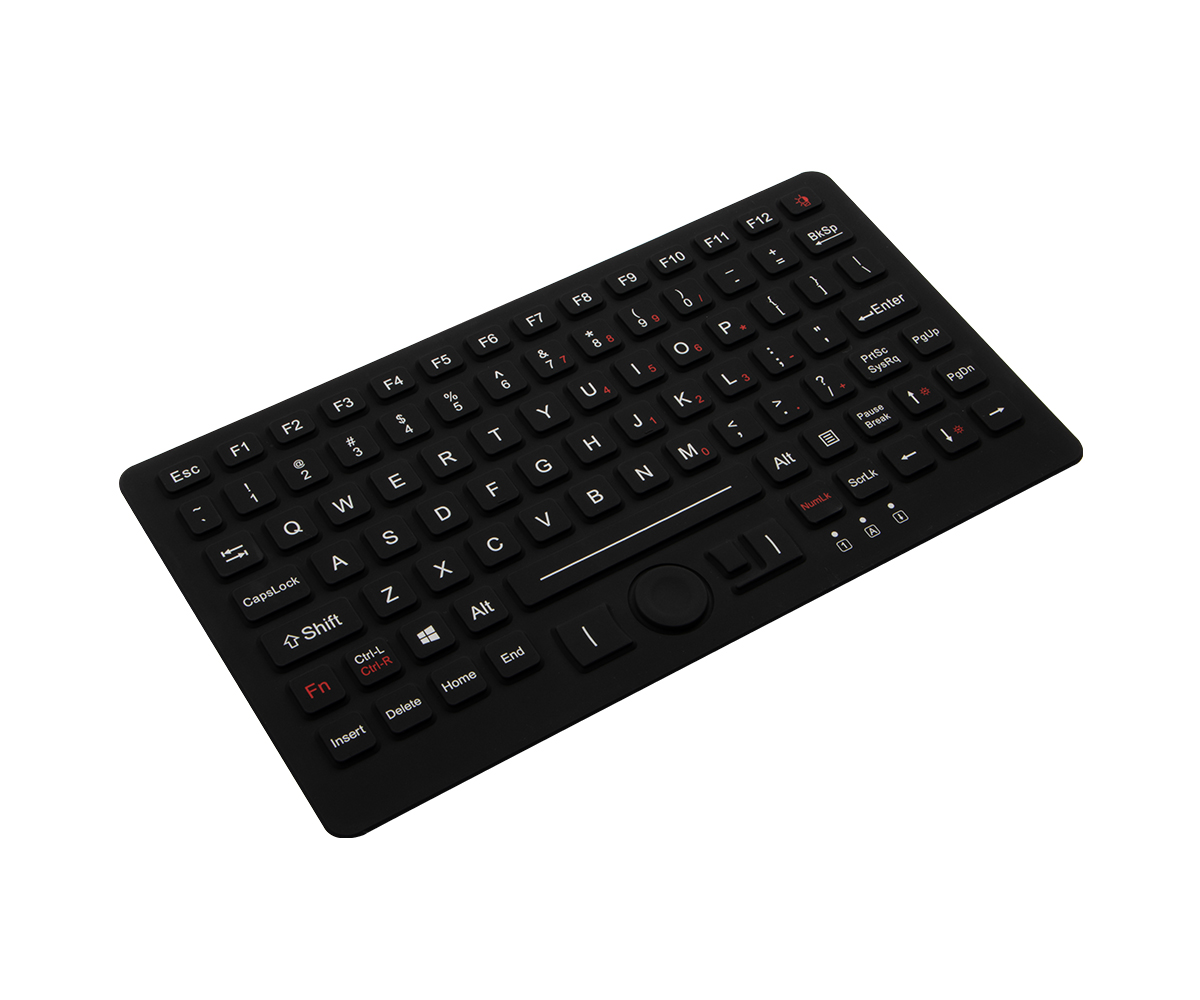

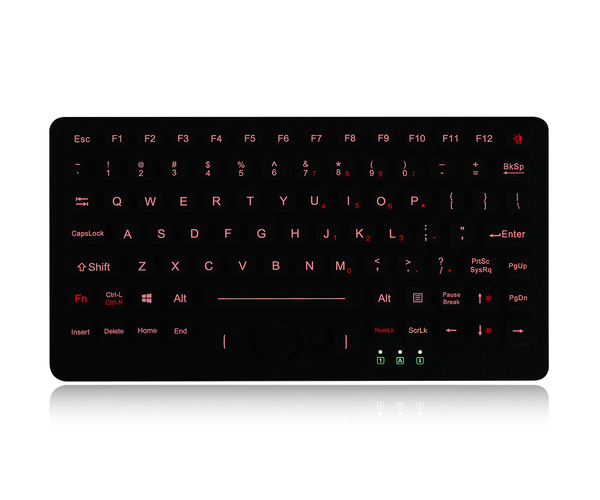

DESCRIPTION: 90 keys IP65 dynamic sealed and ruggedized silicone rubber military keyboard with a Force Sensing Resistor pointing device for fast and accurate cursor position, 12 FN keys (F1, F2...F11, F12) are on top line for easy operation, with military PCB with carbon-on-gold key switch technology with key stroke (1.20mm) with extremely good tactile feeling for fast and accurate data input without any noise, with durable coating & antimicrobial keyboard surface withstand to most chemicals and liquids under harsh environment, Top panel mounted solution with stainless steel back plate and threaded bolts, with red backlight included. With a single USB output. Military level, designed to Meet MIL-STD-461G with EMC and MIL-STD-810F (wide temperature, shock, vibration, humidity etc.)
DIMENSION: 282.4mm x 153.6mm (L x W)
90 keys (including 3 mouse buttons)
Key top style
Protuberant rectangular keys with tactile feeling.
13.6.0mm x 13.6mm for normal keys
1.5N±0.2N (pressure point )
more than 5 million of operations.
50mA when backlight is off, 300mA with backlight on
Meet MIL-STD-461G with EMC (Electro Magnetic Compatibility) etc.:
CE101 25Hz - 10kHz Conducted Emissions, Audio Frequency Currents, Power leads
CE102 10kHz -10MHz Conducted Emissions, Radio Frequency Potentials, Power leads
CS101 25Hz - 150kHz Conducted Susceptibility, Power Leads
CS106 Conducted Susceptibility, Transients, Power Leads
CS112 Electrostatic Discharge Susceptibility
CS114 4kHz -400MHz Conducted Susceptibility, Bulk Cable injection
CS115 Conducted Susceptibility, Bulk Cable injection, Impulse Excitation
CS116 10kHz - 100MHz Conducted Susceptibility, Damped Sinusoidal Transients, Cables and Power Leads
RE101 25Hz -100kHz Radiated Emissions, Magnetic Field
RE102 10kHz - 18GHz Radiated Emissions, Electric Field
RS101 25HZ - 100kHz Radiated Susceptibility, Magnetic Field
RS103 10kHz - 40GHz Radiated Susceptibility, Electric Field
MIL-STD-810F (wide temperature, shock, vibration, humidity).
> 5 years
Switch Contact Material
Carbon-on-Gold key switch technology with military PCB
Standard 1.5m, customized length available
All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
-25℃ to +60℃
-40℃ to +70℃
Damp heat test at +40℃
21 days, IEC 60512-6
Dry heat test at +85℃
10 days, IEC 60512-6
RoHS compliant, CE and FCC certified, MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F
(wide temperature, shock, salt mist, vibration, fungus, humidity)
IP65 dynamic (front panel)
>5 million actuations
Vehicle, aerospace, naval, defense, maritime, Radar, console,
portable rugged laptop, UAV ground station etc.
