Product Detail

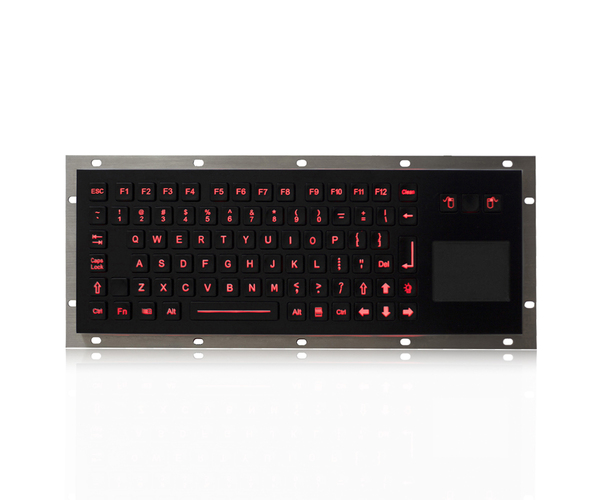

K-TEK-M343TP-FN-BL-BT-DWP

Category: Marine Keyboard
Key Number: 85 keys (including 2 mouse buttons)
Key Travel: 1.20mm±0.10mm
Backlight: Red
Interface: USB/PS2 optional
Key Switch: Carbon-on-gold
Protection Level: IP65 dynamic (front panel)
Mounting Solution: Rear panel mount
Operating Temperature: -20ºC to +65ºC
Application: Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc.
Description
Download

DESCRIPTION: 85 keys IP65 dynamic vandal proof industrial keyboard with individual durable and robust polymer keys, sealed & ruggedized tough touchpad for fast and accurate cursor position, with FN (F1,F2... F11, F12) on the top line for easy operation, with industrial PCB with carbon-on-gold key switch technology with key stroke (1.20±0.10mm) with extremely good tactile feeling for fast and accurate input without any noise, FN + Clean combination key lock/disable the keyboard for easy cleaning and washing without taking out the keyboard from PC, high quality durable black titanium electroplated on the top stainless steel plate included, adjustable industrial red backlight, rear panel mounted solution.

Dimensions: 343.0mm x 125.0mm (front panel)


MECHANICAL DATA


Actuator/keys

85 keys(including 2 mouse buttons), durable and robust polymer keys

Key top style

Protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available

Key Size

14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 68.0mm for space bar

Key travel

1.20±0.10mm

Actuation Force

2.0N±0.2N for key 14.0mm x 14.0mm (pressure point ), 3.5N±0.2N for key 14.0mm x 28.0mm

(pressure point)

Front Plate

1.5mm thickness super quality brushed stainless steel

Back Plate

1.5mm thickness super quality brushed stainless steel

Switch life

more than 5 million of operations

Touch pad

sealed and ruggedized tough touchpad

Touchpad cover

Composite

More than Lifetime 10 million strokes


Mutual capacitance sensing


X/Y axis location detection resolution

40 Counts /mm

X/Y position report

relative

Output (self-detectable depending on cable)

PS2 or USB

Tracking speed

Maximum 1,016 m/sec

Power supply voltage

5VDC ± 0.25V

Current rating (active mode)

< 10 mA

G.W.

2.0KGs

ELECTRICAL DATA


Supply Voltage

+5V DC ± 5%

Current Rating

50mA (with backlight off) ,300mA (with backlight on)

EMC Standard

EN 55032:2015   EN 55035:2017

Lifespan

> 5 years

Switch Contact Material

Carbon-on-Gold key switch technology PCB

Interface

PS2, USB available

OS

All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).

ENVIRONMENTAL ADAPTABILITY


Operating temperature

-20℃ to +65

Storage temperature

-30℃ to +75

Operating RH

30-90%

Atmospheric pressure

60-106Kpa

Saline mist

96 hours, IEC 60512-6

Damp heat test at +40℃

21 days, IEC 60512-6

Dry heat test at +85℃

10 days, IEC 60512-6

RELIABILITY


RoHS Compliant, CE and FCC, ESD


Protection Level

IP65

Vandal resistant

IK09

Key Lifespan

>1 million actuations

MTBF

>20000H

MTTR

<30min

APPLICATIONS

Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop,

UAV ground station etc.
