Product Detail

K-TEK-D392TP-KP

Category: Membrane keyboard
Key Number: 83 keys (including 2 mouse buttons)
Key Travel: 0.45±0.05mm
Backlight: No
Interface: USB/PS2 optional
Key Switch: Metal dome gold-on-gold
Protection Level: IP65 dynamic (front panel)
Mounting Solution: Rear panel mount
Operating Temperature: -20ºC to +65ºC
Application: Industrial, marine, food and beverage, processing factory, medical and pharmaceutical, numerical control machine etc.
Description
Download

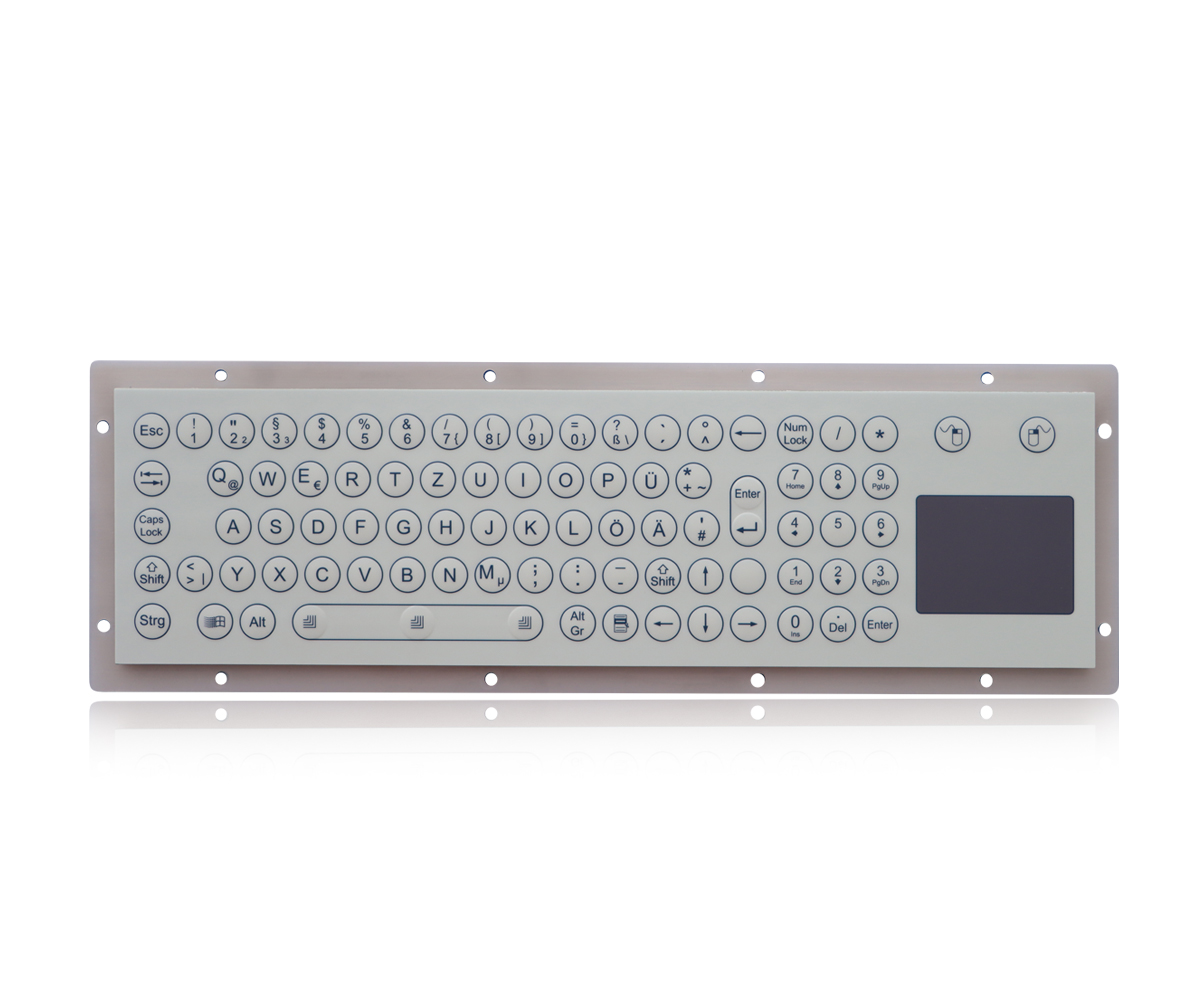

DESCRIPTION: 83 keys compact format IP65 dynamic rated membrane industrial keyboard with integrated numeric keypad, with IP65 dynamic sealed and ruggedized tough touchpad for fast and accurate cursor position, industrial metal dome PCB with gold-on-gold key switch technology with short stroke 0.45mm±0.05mm with extremely good tactile feeling for reliable data input, rear panel mount solution with mounting holes, with anti-microbial, durable and scratch-proof polyester withstand to most chemicals and liquids under the harshest environments


DIMENSIONS: 392.0mm x 110.0mm (top panel)


MECHANICAL DATA

Number of Keys

83 keys (including 2 mouse buttons)

Key switch Technology

metal dome PCB with gold-on-gold key switch technology

Actuation Force

3.5N±0.2N (press point)

Key Travel

0.45mm ± 0.05mm

Key switch Lifetime

1 mil. operations

Mounting Type

rear panel mounting.

G.W.

1.50KGs

Touch pad

sealed and ruggedized tough touchpad

Touchpad cover

Composite

Method

capacitive

More than Lifetime 10 million strokes

Mutual capacitance sensing

X/Y axis location detection resolution

40 Counts /mm

X/Y position report

relative

Output (self-detectable depending on cable)

PS2 or USB

Tracking speed

Maximum 1,016 m/sec

Power supply voltage

5VDC ± 0.25V

Current rating (active mode)

< 10 mA

ELECTRICAL DATA

Supply Voltage

DC +5V±5%

Current Rating

50mA

EMC Standard

EN 55032:2015   EN 55035:2017

Lifespan

> 5 years

Interface

PS2, USB available

OS

All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).

ENVIRONMENTAL ADAPTABILITY

Operating temperature

-20℃ to +65

Storage temperature

-30℃ to +75

Operating RH

100%

Atmospheric pressure

60-106Kpa

Saline mist

96 hours, IEC 60512-6

Damp heat test at +40℃

21 days, IEC 60512-6

Dry heat test at +85℃

10 days, IEC 60512-6

RELIABILITY

RoHS, CE, FCC

Protection Level

IP65 dynamic (front panel)

Key Lifespan

>1 million actuations

MTBF

>20000H

MTTR

<30min

APPLICATION

Industrial, marine, food and beverage, processing factory, medical and pharmaceutical,

numerical control machine etc.
