Product Detail

K-TEK-M418TP-FN-BL-ML-OEM

Category: Silicone keyboard
Key Number: 85 keys (including 2 mouse buttons)
Key Travel: 1.50mm±0.10mm
Backlight: No
Interface: USB/PS2 optional
Key Switch: Carbon-on-gold
Protection Level: IP65 dynamic (front panel)
Mounting Solution: Top panel mount
Operating Temperature: -40℃~+75℃
Application: Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc.
Description
Download

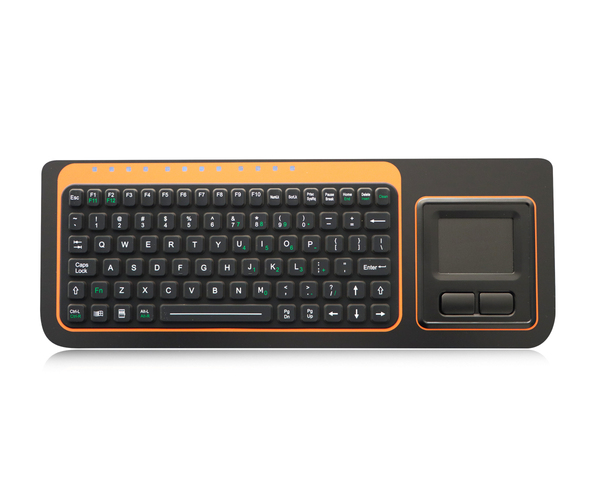

DESCRIPTION: 85 keys IP65 dynamic sealed and ruggedized silicone rubber keyboard with sealed & ruggedized tough touchpad, 12 FN keys (F1, F2...F11, F12) are on top line for easy operation, with carbon-on-gold key switch technology with long stroke (1.50mm±0.1mm) with extremely good tactile feeling for fast and accurate data input without any noise, with durable coating & antimicrobial keyboard surface withstand to most chemicals and liquids under harsh environment, FN + CLEAN combination key to lock/disable the keyboard for easy cleaning without needing to take away the keyboard from PC, with ruggedized stainless steel plate and surface covered with a black film, top panel mounted with threaded bolts, backlight optional. Military level, meet MIL-STD-810F with wide temperature, shock, salt mist, vibration, fungus, humidity etc.

DIMENSIONS: 418.0mm x 154.2mm(L x W)


MECHANICAL DATA

Keys

85 keys (including 2 mouse buttons)

Key top style

Protuberant rectangular keys with tactile feeling

Key travel

1.50mm±0.10mm

Actuation Force

1.2N±0.2N (pressure point )

Switch life

more than 5 million of operations

Touch pad

sealed and ruggedized tough touchpad

Touchpad cover

Composite

More than Lifetime 10 million strokes

Mutual capacitance sensing

X/Y axis location detection resolution

40 Counts /mm

X/Y position report

relative

Output (self-detectable depending on cable)

PS2 or USB

Tracking speed

Maximum 1,016 m/sec

Power supply voltage

5V ± 0.25V

Current rating (active mode)

< 10 mA

G.W.

1.80KGs

ELECTRICAL DATA

Supply Voltage

DC +5V±5%

Current Rating

50mA when backlight is off, 300mA with backlight on

EMC Standard

EN 55032:2015   EN 55035:2017

Lifespan

> 5 years

Switch Contact Material

Carbon-on-gold key switch technology

Interface

PS2, USB available

Cable length

Standard 1.5m, other customized length available

OS

All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).

ENVIRONMENTAL ADAPTABILITY

Operating temperature

-40℃ to +75

Storage temperature

-45℃ to +85

Operating RH

100%

Atmospheric pressure

60-106Kpa

Saline mist

96 hours, IEC 60512-6

Damp heat test at +40℃

21 days, IEC 60512-6

Dry heat test at +85℃

10 days, IEC 60512-6

RELIABILITY

RoHS compliant, CE and FCC certified, MIL-STD-810F

(wide temperature, shock, salt mist, vibration, fungus, humidity etc.)

Protection Level

IP65 dynamic (front panel)

Key Lifespan

>5 million actuations

MTBF

>20000H

MTTR

<30min

APPLICATIONS

Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop,

UAV ground station etc.
