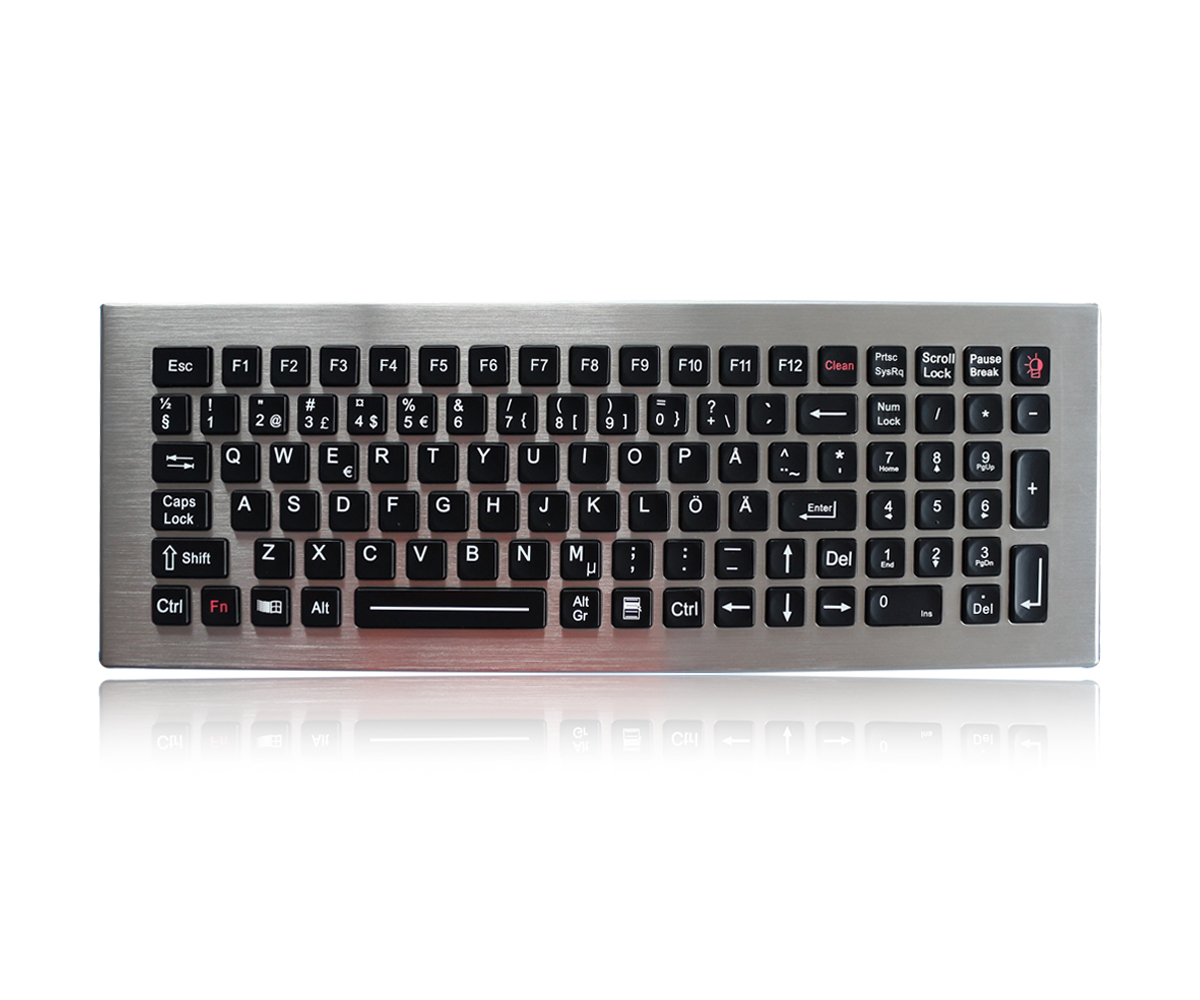

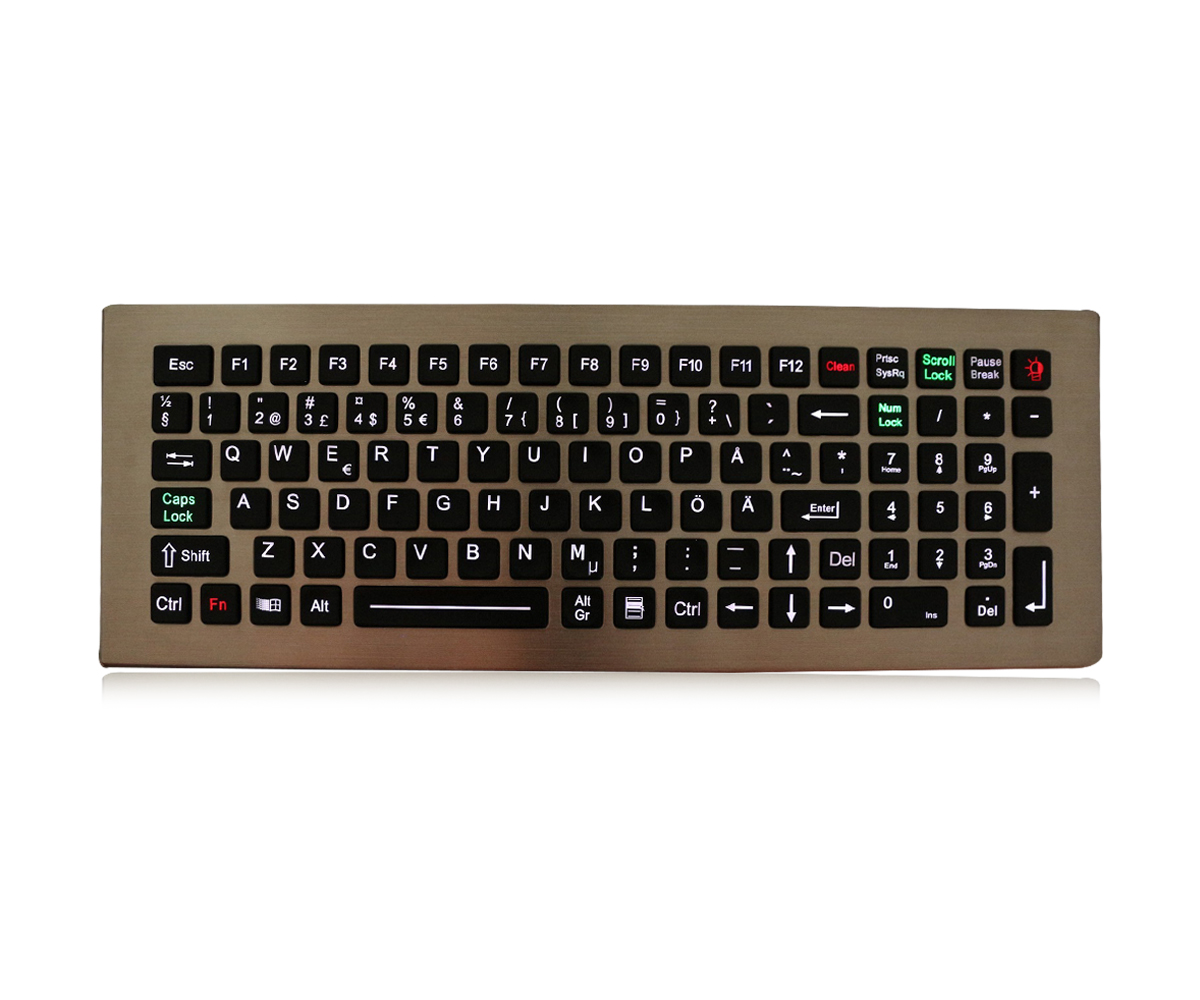

DESCRIPTION: 100 keys compact format IP68 dynamic waterproof vandal proof stainless steel industrial keyboard with durable polymer keys with full keyboard functionalities, function keys F1, F2, ...F12 are on the top line for easy operation, with numeric keypad, sealed and ruggedized military PCB with carbon-on-gold key switch technology with stroke (1.20±0.10mm) with extremely good tactile feeling for fast and accurate data input without any noise, with optional high quality durable black titanium electroplated on the stainless steel housing, movable desk top version. Meet MIL-STD-461G with EMC (Electro Magnetic Compatibility) and MIL-STD-810F (wide temperature, shock, vibration, humidity etc.) Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc. Adjustable white backlight included.
Dimension: 366.0mm x 133.0mm x 21.5mm (L x W x H)
MECHANICAL DATA | Key | 100 keys, durable and robust polymer keys | Key top style | Protuberant rectangular keys with tactile feeling. | Key travel | 1.20±0.10mm | Key Size | 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 68.2mm for space bar | Actuation Force | 2.0N±0.2N for key 14.0mm x 14.0mm (pressure point ), 3.5N±0.2N for key 14.0mm x 28.0mm (pressure point) | Switch life | more than 5 million of operations. | Front and Back Plate | Super quality SUS304 brushed stainless steel | G.W. | 2.5kgs | ELECTRICAL DATA | Supply Voltage | DC +5V±5% | Current Rating | 30mA (with backlight off) ,300mA (with backlight on) | Meet MIL-STD-461G with EMC (Electro Magnetic Compatibility) etc.: | 1 | CE101 25Hz - 10kHz Conducted Emissions, Audio Frequency Currents, Power leads | 2 | CE102 10kHz -10MHz Conducted Emissions, Radio Frequency Potentials, Power leads | 3 | CS101 25Hz - 150kHz Conducted Susceptibility, Power Leads | 4 | CS106 Conducted Susceptibility, Transients, Power Leads | 5 | CS112 Electrostatic Discharge Susceptibility | 6 | CS114 4kHz -400MHz Conducted Susceptibility, Bulk Cable injection | 7 | CS115 Conducted Susceptibility, Bulk Cable injection, Impulse Excitation | 8 | CS116 10kHz - 100MHz Conducted Susceptibility, Damped Sinusoidal Transients, Cables and Power Leads | 9 | RE101 25Hz -100kHz Radiated Emissions, Magnetic Field | 10 | RE102 10kHz - 18GHz Radiated Emissions, Electric Field | 11 | RS101 25HZ - 100kHz Radiated Susceptibility, Magnetic Field | 12 | RS103 10kHz - 40GHz Radiated Susceptibility, Electric Field | MIL-STD-810F (wide temperature, shock, vibration, humidity etc.). | Lifespan | > 5 years | Switch Contact Material | Military PCB with carbon-on-gold key switch technology. | Interface | USB | Cable length | Standard 2.0M, customized length available. | OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). | ENVIRONMENTAL ADAPTABILITY | Operating temperature | -40℃ to +75℃ | Storage temperature | -45℃ to +85℃ | Saline mist | 96h, IEC60512-6 | Damp heat test at +40℃ | 21 days, IEC 60512-6 | Dry heat test at +85℃ | 10 days, IEC 60512-6 | Humidity | 100% | Atmospheric pressure | 60-106Kpa | RELIABILITY | RoHS compliant, CE and FCC certified, MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.) | Protection Level | IP68 dynamic | Key Lifespan | >5 million actuations | MTBF | >20000H | MTTR | <30min | APPLICATION | Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc. |
|
