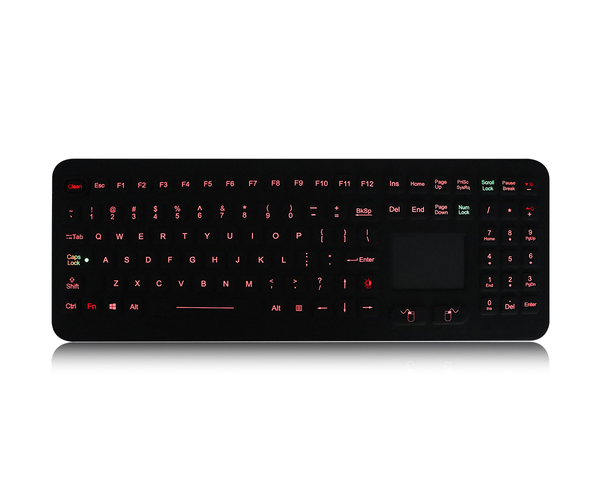

K-TEK-M399TP-KP-FN-BL

Category：	Silicone keyboard
Key Number：	107 keys (including 2 mouse buttons)
Key Travel：	1.50mm±0.10mm
Backlight：	Red
Interface：	USB/PS2 optional
Key Switch：	Carbon-on-gold
Protection Level：	IP65 dynamic (front panel)
Mounting Solution：	Top panel mount
Operating Temperature：	-20ºC to +65 ºC
Application：	Vehicle, aerospace, naval, defense, maritime, Radar, console, UAV ground station etc.

Prev： K-TEK-M344KP-FN-BL-ML-EMC-DT-DWP

Next： K-TEK-A361-OTB-BL-DWP

Description

Download

DESCRIPTION: 107 keys IP65 dynamic sealed & ruggedized silicone rubber industrial Hygienic keyboard with full keyboard functionalities with FN (F1, F2...F11, F12) on upper line, integrated numeric keypad, sealed & ruggedized tough touchpad for fast and accurate cursor position, industrial PCB with carbon-on-gold key switch technology with long stroke (1.50mm) with extremely good tactile feeling for fast and accurate data input without any noise, with durable coating & antimicrobial keyboard surface withstand to most chemicals and liquids under harsh environment, FN+CLEAN key for easy cleaning keyboard via lock/disable the keyboard without needing to take away the keyboard from PC, top panel mounted with 3.0mm oxygenation surface treatment aluminum back plate sealed with top ruggedized industrial silicone cover & Industrial carbon-on-gold PCB, adjustable industrial backlight included, military level optional.

DIMENSIONS: 405.0mm x 155.0 (L x W )

MECHANICAL DATA
Keys	107 keys (including 2 mouse buttons)
Key top style	Protuberant rectangular keys with tactile feeling
Key Size	16.0mm x 15.8mm for normal keys
Key travel	1.50±0.10mm
Actuation Force	1.2N±0.2N (pressure point )
Switch life	more than 5 million of operations
Touch pad	sealed and ruggedized tough touchpad
Touchpad cover	Composite
More than Lifetime 10 million strokes
Mutual capacitance sensing
X/Y axis location detection resolution	40 Counts /mm
X/Y position report	relative
Output (self-detectable depending on cable)	PS2 or USB
Tracking speed	Maximum 1,016 m/sec
Power supply voltage	5V ± 0.25V
Current rating (active mode)	< 10 mA
G.W.	1.50KGs
ELECTRICAL DATA
Supply Voltage	DC +5V±5%
Current Rating	50mA when backlight is off, 300mA with backlight on
EMC Standard	EN 55032:2015 EN 55035:2017
Lifespan	> 5 years
Switch Contact Material	Carbon-on-gold key switch technology
Interface	PS2, USB available
Cable length	Standard 2.0m, other customized length available
OS	All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
ENVIRONMENTAL ADAPTABILITY
Operating temperature	-20℃ to +65℃
Storage temperature	-30℃ to +75℃
Operating RH	100%
Atmospheric pressure	60-106Kpa
Saline mist	96 hours, IEC 60512-6
Damp heat test at +40℃	21 days, IEC 60512-6
Dry heat test at +85℃	10 days, IEC 60512-6
RELIABILITY
RoHS compliant, CE and FCC certified, MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity)(OPTIONAL)
Protection Level	IP65 dynamic (front panel)
Key Lifespan	>5 million actuations
MTBF	>20000H
MTTR	<30min
APPLICATIONS	Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc.

K-TEK-M399TP-KP-FN-BL--mechanical drawing
