Product Detail

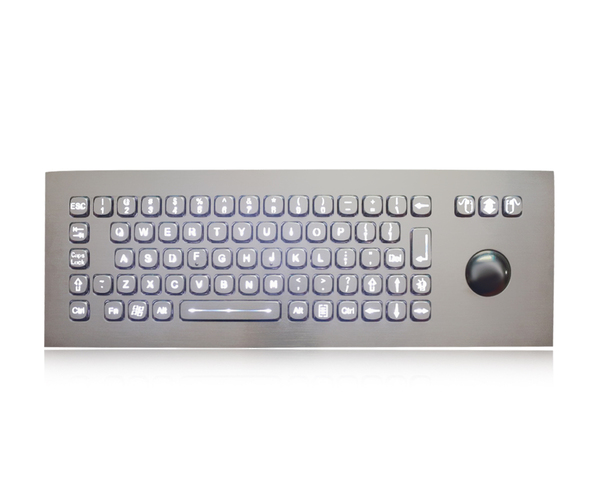

K-TEK-A361-OTB-BL-DWP

Category: Stainless steel keyboard
Key Number: 71 keys (including 3 mouse buttons)
Key Travel: 1.50mm±0.10mm
Backlight: White/Red
Interface: USB/PS2 optional
Key Switch: Carbon-on-gold
Protection Level: IP65 dynamic (front panel)
Mounting Solution: Top panel mount
Operating Temperature: -20ºC to +65ºC
Ball Diameter: 38mm
Application: Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc.
Description
Download

DESCRIPTION: 71 keys compact format IP65 dynamic vandal proof stainless steel industrial keyboard with IP68 dynamic washable 38.0mm stainless steel optical trackball module(Silver Harden Resin is available) with 800 DPI resolutions for fast and accurate cursor position with extremely smooth operation without any noise,industrial PCB with carbon-on-gold key switch technology with long stroke(1.50±0.10mm) with extremely good tactile feeling for fast and accurate data input without any noise, 3 mouse buttons designed for right & left clicking and scrolling up and down with ball rolling, stainless steel top plate with threaded bolts for toppanel mounting solution. IP68 dynamic trackball module with direct drain pipe is optional, no rust risk and anti-salt spray Corrosion.Stainless steel key caps etched out via special professional way and filled with transparent epoxy for

backlight out, with adjustable industrial red or white backlight included.

DIMENSIONS: 361.0mm x 125.0mm (front panel)


MECHANICAL DATA

Actuator/keys

71 keys (including 3 mouse buttons), super quality SUS304 brushed stainless steel

Key top style

Protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available

Key Size

14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 70.0mm for space bar

Key travel

1.50±0.10mm

Actuation Force

1.5N±0.2N for key 14.0mm x 14.0mm (pressure point ), 2.5N±0.2N for key 14.0mm x 28.0mm (pressure point)

Front Plate

1.5mm thickness super quality brushed stainless steel

Back Plate

3.0mm thickness brushed & oxidized aluminium

Switch life

more than 5 million of operations

Tracker ball

38.0mm optical trackball module(Stainless steel or Silver Harden Resin is available)

G.W.

2.00KGs

ELECTRICAL DATA

Supply Voltage

+5V DC ± 5%

Current Rating

50mA (with backlight off) ,300mA (with backlight on)

EMC Standard

EN 55032:2015   EN 55035:2017

Lifespan

> 5 years

Switch Contact Material

Carbon-on-Gold key switch technology PCB

Interface

PS2, USB available

OS

All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).

ENVIRONMENTAL ADAPTABILITY

Operating temperature

-20℃ to +65

Storage temperature

-30℃ to +75

Operating RH

30-90%

Atmospheric pressure

60-106Kpa

Saline mist

96 hours, IEC 60512-6

Damp heat test at +40℃

21 days, IEC 60512-6

Dry heat test at +85℃

10 days, IEC 60512-6

RELIABILITY

RoHS Compliant, CE and FCC, ESD

Protection Level

IP65 dynamic (front panel)

Vandal resistant

IK08

Key Lifespan

>5 million actuations

MTBF

>20000H

MTTR

<30min

APPLICATIONS

Industrial, coal and mine, medical, bank kiosk and self service terminal, public access,

explosion-proof automation, oil and gas etc.
