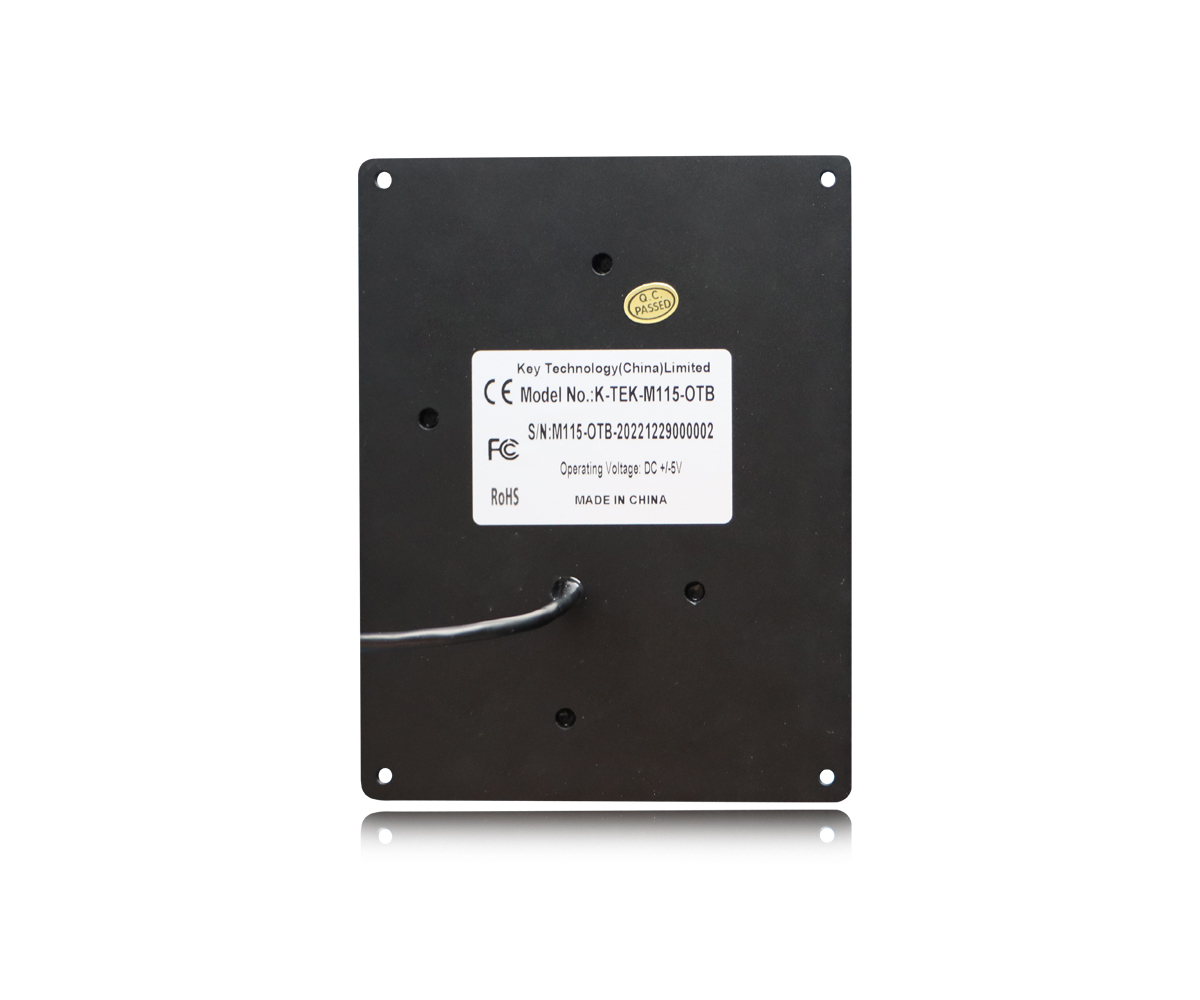

K-TEK-M115-OTB

Category：	Trackball
Key Number：	4 keys
Key Travel：	0.3mm-0.5mm
Interface：	USB
Key Switch：	Omron micro key switch technology
Protection Level：	IP52
Mounting Solution：	Front panel mount with sinking holes
Operating Temperature：	-20ºC to +60ºC
Ball Diameter：	34mm
Application：	Vehicle, aerospace, navy, maritime, Radar, console, navigation controls etc.

Prev： K-TEK-A19U-MTB-KP-FN 19U industrial metal trackball keyboard

Next： K-TEK-M379TP-KP-FN-BL-IL-SS

Description

Download

DESCRIPTION: IP52 static rated ergonomic commercial level mouse with key switch mouse buttons for right/left clicking, as well as middle wheel for scrolling function, integrated with a 34mm optical trackball module with 600~1600 DPI resolutions for fast and accurate fixing cursor position with extreme smoothoperation without any noise. The DPI can be adjusted and switched by mouse key (resolutions of 600, 800, 1200, 1600 optional) to meet requirements. Rugged black color mounting aluminum plate with 4 sinking holes for easy mounting to user's device, top panel mounted solution, with 15 degree angle ergonomic tilt design to be fit for user's hand than conventional mouse, as well as to reduce the fatigue after long time operation, USB interface.

DIMENSIONS: 115.00mm x 150.00mm(top panel)

MECHANICAL DATA
Keys	4 keys
Key switch	Omron micro key switch technology
Key travel	0.3mm-0.5mm
Actuation Force	1.0N±0.3N
Trackball	34mm ergonomic handheld thumb ball
G.W.	0.6KGs
ELECTRICAL DATA
Supply Voltage	DC +5V±5%
Current Rating	<20mA
EMC Standard	EN 55032:2015, EN 55035:2017
Lifespan	> 5 years
Interface	USB
OS	All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
ENVIRONMENTAL ADAPTABILITY
Operating temperature	-20℃ to +60℃
Storage temperature	-40℃ to +70℃
Operating RH	100%
Atmospheric pressure	60-106Kpa
Saline mist	96 hours, IEC 60512-6
Damp heat test at +40℃	21 days, IEC 60512-6
Dry heat test at +85℃	10 days, IEC 60512-6
RELIABILITY
RoHS, CE, FCC
Protection Level	IP52
Key Lifespan	>1 million actuations
MTBF	>20000H
MTTR	<30min
APPLICATION	Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc.

K-TEK-M115-OTB--mechanical drawing
