Product Detail

K-TEK-M379-OTB-KP-FN-IL-SS

Category: Silicone keyboard
Key Number: 121 keys (including 3 mouse buttons)
Key Travel: 1.50mm±0.10mm
Backlight: Red
Interface: USB/PS2 optional
Key Switch: Carbon-on-gold
Protection Level: IP65 dynamic (front panel)
Mounting Solution: Top panel mount
Operating Temperature: -20ºC to +65ºC
Ball Diameter: 25mm
Application: Vehicle, aerospace, naval, defense, maritime, Radar, console, UAV ground station etc.
Description
Download

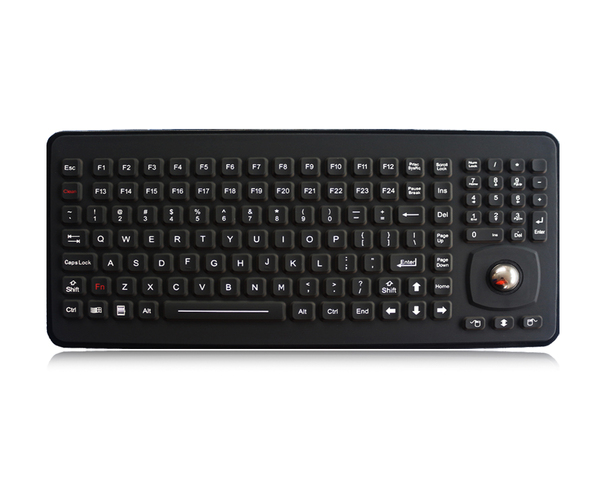

DESCRIPTION: 121 keys IP65 dynamic rated ruggedized industrial silicone rubber Hygienic keyboard with full keyboard functionalities, integrated numeric keypad and 24 FN keys (F1, F2...F11, F12...F23, F24), sealed & ruggedized IP68 dynamic 25.0mm optical trackball module with 800 DPI resolution for fast and accurate cursor position, industrial PCB with carbon-on-gold key switch technology with long stroke (1.50mm±0.10mm) with extremely good tactile feeling for fast and accurate data input without any noise, with durable coating & antimicrobial keyboard surface withstand to most chemicals and liquids under harsh environment, FN + Clean combination key for easy cleaning via lock/disable whole keyboard without needing to take away the keyboard from PC, top panel mounted solution with rugged stainless steel back plate with mounting studs to protects the electronics. Adjustable industrial backlight optional, industrial level.

DIMENSIONS: 389.3mm x 179.2mm(L x W )


MECHANICAL DATA

Key

121 keys (including 3 mouse buttons)

Key top style

Protuberant rectangular keys with tactile feeling.

Key Size

11.33mm x 12.67mm for normal keys

Key travel

1.50±0.10mm

Actuation Force

1.5N±0.2N (pressure point )

Switch life

more than 5 million of operations.

Trackball

25.0mm diameter

G.W.

1.50KGs

ELECTRICAL DATA

Supply Voltage

DC +5V±5%

Current Rating

100mA

EMC Standard

EN 55032:2015   EN 55035:2017

Lifespan

> 5 years

Switch Contact Material

Carbon-on-Gold key switch technology with gold PCB

Interface

PS2, USB available

Cable length

Standard 2.0m, customized length available.

OS

All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).

ENVIRONMENTAL ADAPTABILITY

Operating temperature

-20℃ to +65

Storage temperature

-30℃ to +75

Saline mist

96h, IEC60512-6

Damp heat test at +40℃

21 days, IEC 60512-6

Dry heat test at +85℃

10 days, IEC 60512-6

Humidity

100%

Atmospheric pressure

60-106Kpa

RELIABILITY

RoHS compliant, CE and FCC certified

Protection Level

IP65 dynamic (front panel)

Key Lifespan

>5 million actuations

MTBF

>20000H

MTTR

<30min

APPLICATIONS

Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop,

UAV ground station etc.
