Product Detail

K-TEK-M379-OTB-KP-FN-BL-IL

Category: Silicone keyboard
Key Number: 121 keys (including 3 mouse buttons)
Key Travel: 1.50mm±0.10mm
Backlight: Red
Interface: USB/PS2 optional
Key Switch: Carbon-on-gold
Protection Level: IP65 dynamic (front panel)
Mounting Solution: Top panel mount
Operating Temperature: -20ºC to +65 ºC
Ball Diameter: 25mm
Application: Vehicle, aerospace, naval, defense, maritime, Radar, console, UAV ground station etc.
Description
Download

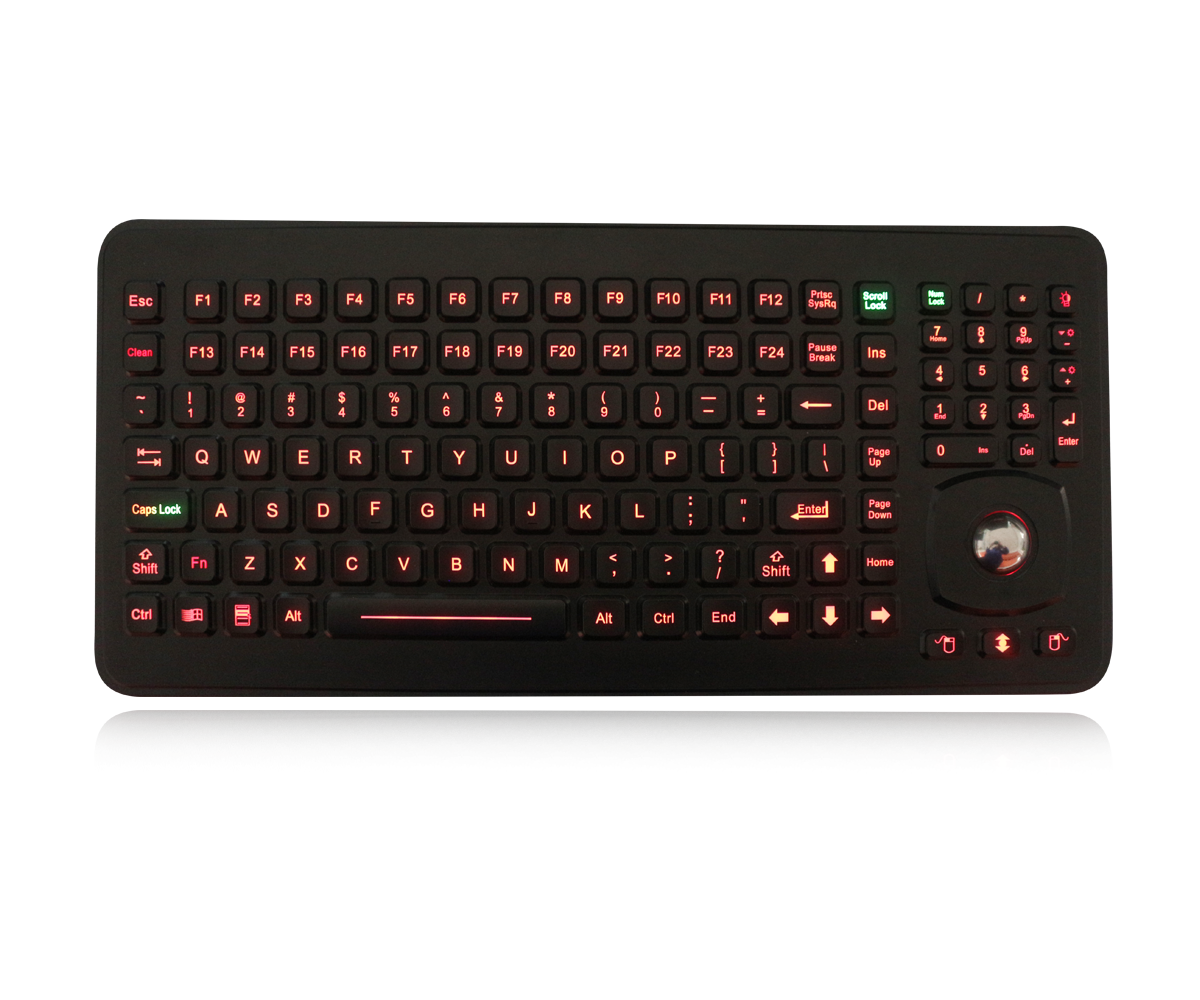

DESCRIPTION: 121 keys IP65 dynamic rated ruggedized industrial silicone rubber Hygienic keyboard with full keyboard functionalities, integrated numeric keypad and 24 FN keys (F1, F2...F11, F12...F23, F24), sealed & ruggedized IP68 dynamic 25.0mm optical trackball module with 800 DPI resolution for fast and accurate cursor position, industrial PCB with carbon-on-gold key switch technology with long stroke (1.50mm±0.10mm) with extremely good tactile feeling for fast and accurate data input without any noise, with durable coating &

antimicrobial keyboard surface withstand to most chemicals and liquids under harsh environment, FN+ CLEAN combination key for easy cleaning via locking/disable the entire keyboard without needing to take away the keyboard from PC, top panel mounted solutions with sealed & ruggedized robust polycarbonate frame with mounting studs, adjustable industrial backlight included, industrial level.

DIMENSIONS: 389.0mm x 179.2mm(L x W )


MECHANICAL DATA

Key

121 keys (including 3 mouse buttons)

Key top style

Protuberant rectangular keys with tactile feeling.

Key Size

11.33mm x 12.67mm for normal keys

Key travel

1.50mm±0.10mm

Actuation Force

1.5N±0.2N (pressure point )

Switch life

more than 5 million of operations.

Trackball

25.0mm diameter

G.W.

1.00KGs

ELECTRICAL DATA

Supply Voltage

DC +5V±5%

Current Rating

50mA when backlight is off, 300mA with backlight on

EMC Standard

EN 55032:2015   EN 55035:2017

Lifespan

> 5 years

Switch Contact Material

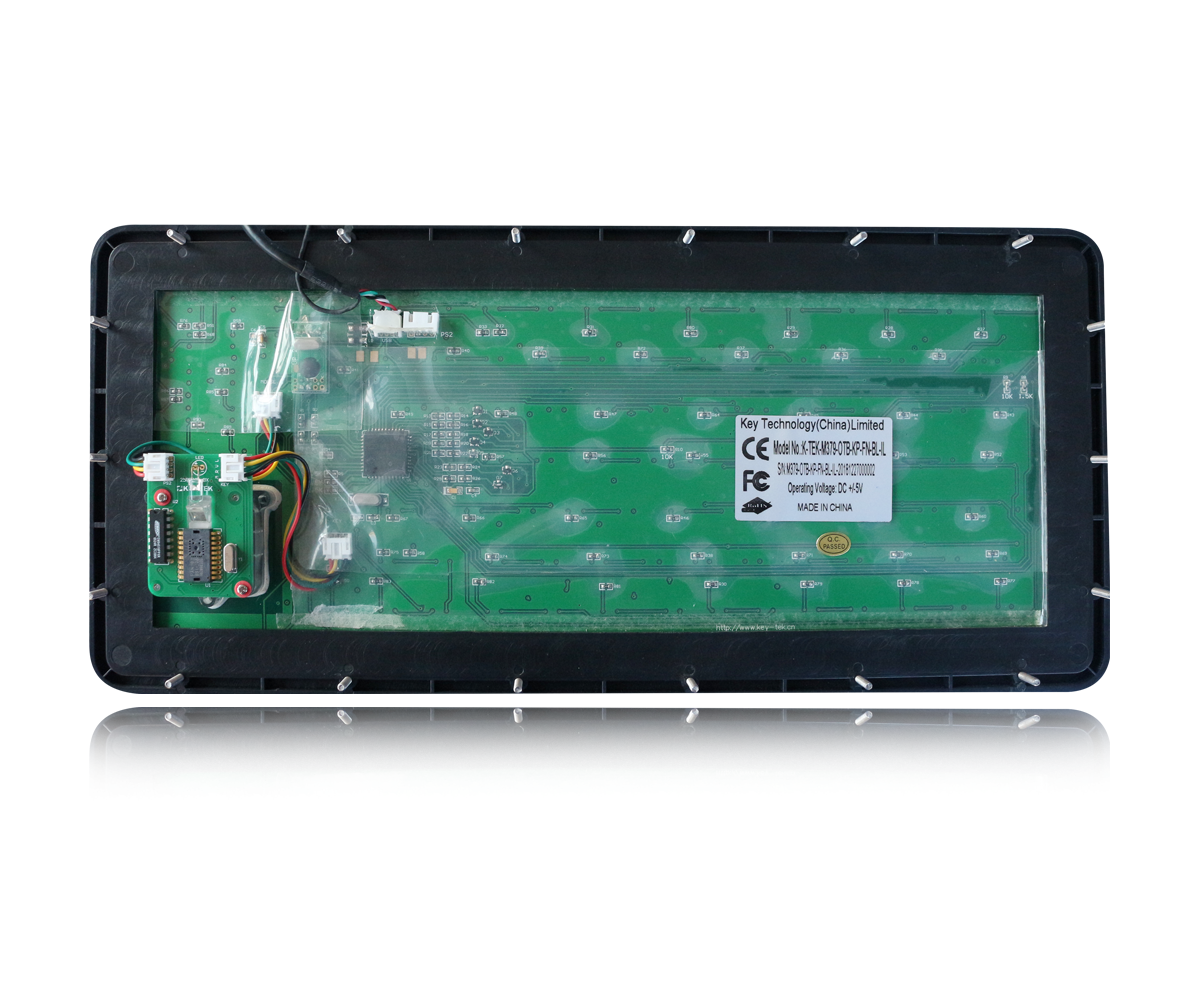

Carbon-on-Gold key switch technology with gold PCB

Interface

PS2, USB available

Cable length

Standard 2.0m, customized length available.

OS

All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).

ENVIRONMENTAL ADAPTABILITY

Operating temperature

-20℃ to +65

Storage temperature

-30℃ to +75

Saline mist

96h, IEC60512-6

Damp heat test at +40℃

21 days, IEC 60512-6

Dry heat test at +85℃

10 days, IEC 60512-6

Humidity

100%

Atmospheric pressure

60-106Kpa

RELIABILITY

RoHS compliant, CE and FCC certified

Protection Level

IP65 dynamic (front panel)

Key Lifespan

>5 million actuations

MTBF

>20000H

MTTR

<30min

APPLICATIONS

Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop,

UAV ground station etc.
