K-TEK-M376KP-FN-IL-OEM

Category：	Silicone keyboard
Key Number：	119 keys
Key Travel：	1.50mm±0.10mm
Backlight：	No
Interface：	USB/PS2 optional
Key Switch：	Carbon-on-gold
Protection Level：	IP65 dynamic (front panel)
Mounting Solution：	Rear panel mount
Operating Temperature：	-20ºC to +65 ºC
Application：	Vehicle, aerospace, naval, defense, maritime, Radar, console, UAV ground station etc.

Prev： K-TEK-M396TP-KP-FN-BL-EMC-151B

Next： K-TEK-M399KP-FN

Description

Download

DESCRIPTION: 119 keys IP65 dynamic sealed & ruggedized industrial silicone rubber industrial keyboard, integrated sealed numeric keypad, 24 function keys (F1, F2...F11, F12...F23, F24) and industrial PCB with carbon-on-gold key switch technology with long stroke (1.50mm) with extremely good tactile feeling for fast and accurate data input without any noise, with durable coating & antimicrobial keyboard surface withstand to most chemicals and liquids under harsh environment, FN+Clean key for easy cleaning via locking/disable the whole keyboard without needing to take away the keyboard from PC, panel mounted solution. Adjustable backlight optional.

DIMENSIONS : 349.0mm x 139.0mm (Front panel)

MECHANICAL DATA
Key	119 keys
Key top style	Protuberant rectangular keys with tactile feeling.
Key travel	1.50mm±0.10mm
Actuation Force	1.5N±0.2N (pressure point )
Switch life	more than 5 million of operations.
G.W.	0.80KGs
ELECTRICAL DATA
Supply Voltage	DC +5V±5%
Current Rating	30mA
EMC Standard	EN 55032:2015 EN 55035:2017
Lifespan	> 5 years

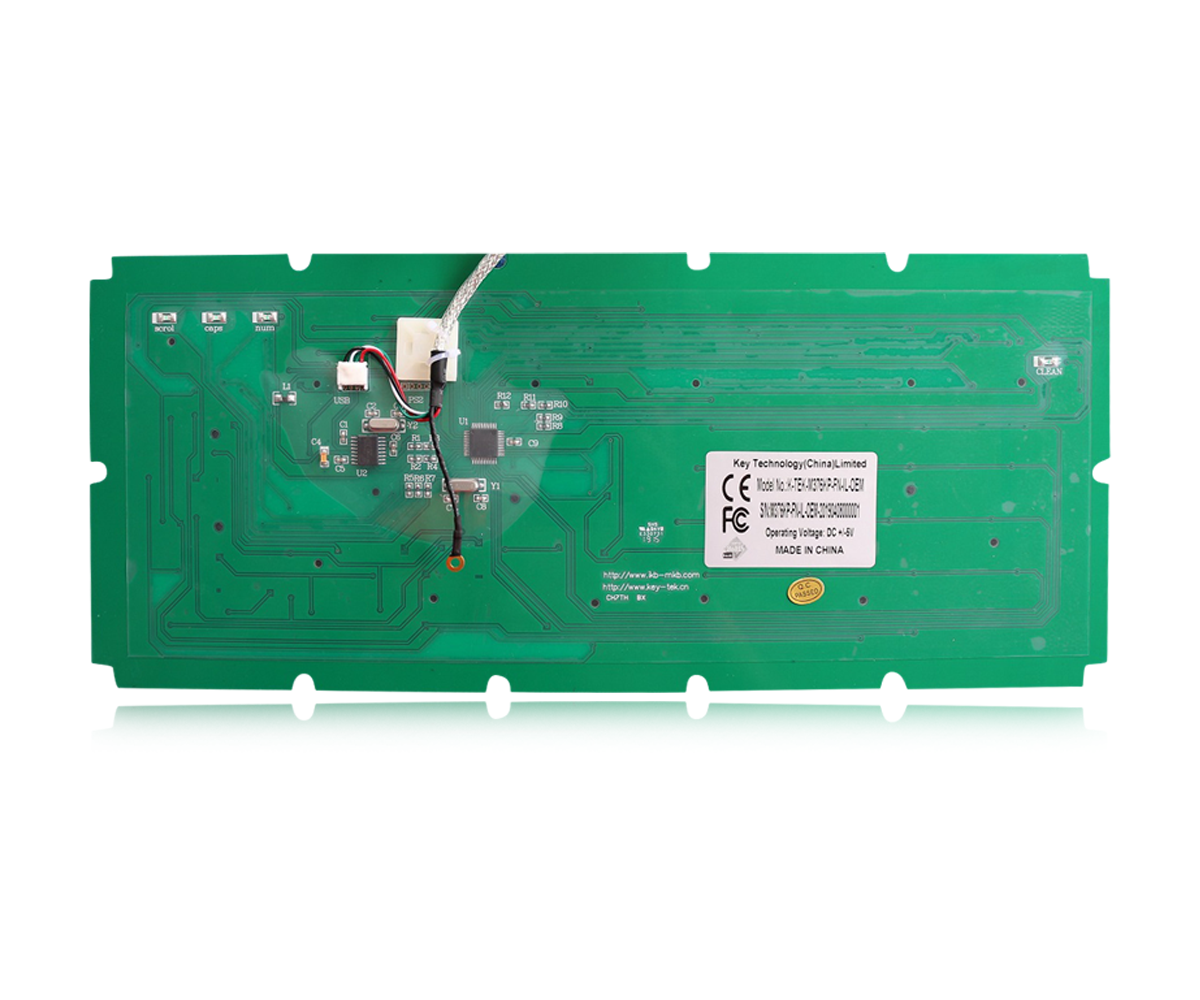

Switch Contact Material	Carbon-on-Gold key switch technology with gold PCB
Interface	PS2, USB available
Cable length	Standard 2.0m, customized length available.
OS	All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
ENVIRONMENTAL ADAPTABILITY
Operating temperature	-20℃ to +65℃
Storage temperature	-30℃ to +75℃
Saline mist	96h, IEC60512-6
Damp heat test at +40℃	21 days, IEC 60512-6
Dry heat test at +85℃	10 days, IEC 60512-6
Humidity	100%
Atmospheric pressure	60-106Kpa
RELIABILITY
RoHS compliant, CE and FCC certified
Protection Level	IP65 dynamic (front panel)
Key Lifespan	>5 million actuations
MTBF	>20000H
MTTR	<30min
APPLICATIONS	Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc.

K-TEK-M376KP-FN-IL-OEM--mechanical drawing
