Product Detail

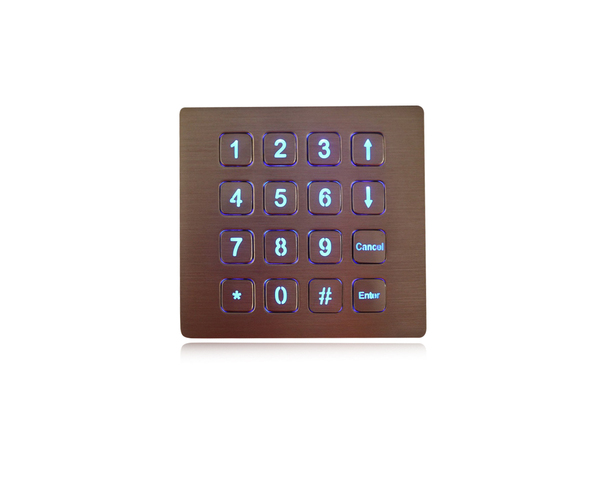

K-TEK-B86KP-AC-BL-DWP

Category: Stainless steel keypad
Key Number: 16 keys
Key Travel: 0.45±0.05mm
Backlight: White/Blue/Red/Green
Interface: Dot Matrix
Key Switch: Metal dome gold-on-gold
Protection Level: IP65 dynamic (front panel)
Mounting Solution: Top panel mount with thread bolts
Operating Temperature: -20ºC to +65 ºC
Application: Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc.
Description
Download

DESCRIPTION: 16 keys compact format IP65 dynamic vandal proof Stainless Steel industrial dot matrix numeric keypad with industrial metal dome PCB with socket on the back for connecting electronics controller, industrial metal dome PCB with gold-on-gold key switch technology with short stroke 0.45mm with excellent tactile feeling for stable and accurate data input, stainless steel key caps etched out via special professional way and filled with transparent epoxy for backlight out, with industrial backlight included. (red/blue/white/green optional), top stainless steel plate with sealing gasket for easy & tight sealing and mounting to enclosure or panel, with threaded bolts under top stainless steel plate for top panel mounting solution.

DIMENSIONS: 106.0mm × 99.0mm (front panel)


ELECTRICAL DATA

Supply Voltage

DC +5V±5%

Current Rating

100mA

EMC Standard

EN 55032:2015   EN 55035:2017

Lifespan

> 5 years

Switch Contact Material

Gold-on-Gold key switch technology PCB

Interface

4 x 4 dot matrix

OS

All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos-To be confirmed).

MECHANICAL DATA

Front Plate

1.5mm thickness super quality brushed stainless steel

Back Plate

1.5mm thickness super quality stainless steel

Actuator/keys

16 keys, 1.50mm thickness super quality SUS304 brushed stainless steel flat key

Key top style

Non-protuberant rectangular keys, laser engraved & etched legends on keys are available

Key Size

14.0mm x 14.0mm for normal keys

Key Travel

0.45mm±0.05mm

Actuation Force

3.5N±0.2N for key 14.0mm x 14.0mm (pressure point)

Switch Life

more than 1 million of operations

G.W.

0.80KGs

ENVIRONMENTAL ADAPTABILITY

Operating Temperature

-20℃ to +65

Storage Temperature

-30℃ to +75

Operating RH

30-90%

Atmospheric Pressure

60-106Kpa

Saline Mist

96 hours, IEC 60512-6

Damp heat test at +40℃

21 days, IEC 60512-6

Dry heat test at +85℃

10 days, IEC 60512-6

RELIABILITY

RoHS Compliant, CE and FCC, ESD

Protection Level

IP65 dynamic (front panel)

Vandal Resistant

IK09

Key Lifespan

>1 million actuations

MTBF

>20000H

MTTR

<30min

APPLICATIONS

Industrial, coal and mine, medical, bank kiosk and self service terminal, public access,

explosion-proof automation, oil and gas etc.
