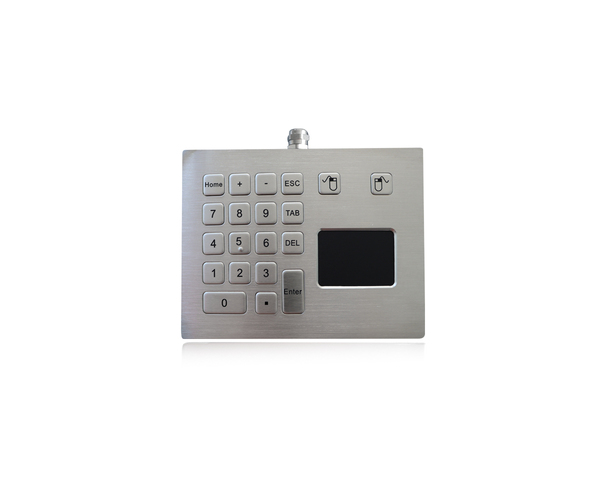

DESCRIPTION: IP65 static sealed and ruggedized tough touchpad with scroll function (optional) for fast and accurate cursor position, with numeric keypad integrated, with, industrial metal dome PCB with gold-on-gold key switch technology with short stroke 0.45±0.05m with excellent tactile feeling for stable and accurate data input, movable stand alone desk top version with stainless steel housing.
DIMENSIONS: 160.0mm x 125.0mm x 20mm (L x W x H)
TECHNICAL SPECIFICATION
ITEM | SPECIFICATION |
Mechanical | Front Plate | Quality brushed stainless steel |
Touchpad thickness | 1.3 mm PCB thickness inclusive of mylar layer |
Validated touch width | 45.0mm (max) |
Validated touch length | 60.0mm (max) |
| Touchpad lifespan | > 10 Million times |
Dimension | Touchpad: 60.0mm x 45.0mm; Keyboard: 160.0mm x 125.0mm x 20.0mm |
Interface | PS2 and USB both available |
Electrical | Power supply | DC +5V±5% |
Work current | 17 mA (normal) |
X/Y position sensing resolution: | 1000 points/inch (40 points/mm) |
X/Y position reporting: | Relative |
Tracking speed: | Maximum 1,016 m/sec |
Protection level: | IP65 static (front panel) |
Static Release: | 15 KV (front panel) |
EMC Standard: | EN 55032:2015, EN 55035:2017 |
Environmental | Operating temperature: | -20°C to +65°C |
Storage temperature: | -30°C to + 75°C |
Operating RH: | 10%-95% |
Atmospheric pressure: | 60-106Kpa |
Reliability | MTBF | >20000H |
MTTR | < 30min |
Key switch lifespan | >1 million actuations |
OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed) |
Packing Details | Each unit to a suitable brown inner box, suitable brown inner boxes to a standard export carton. |
Application | Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc. |
