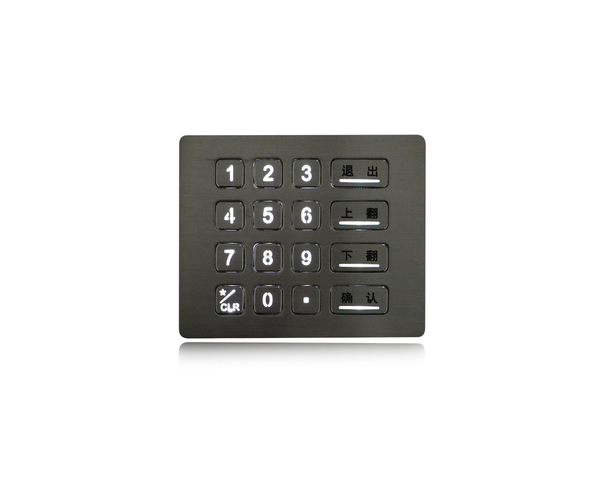

DESCRIPTION: 16 keys compact format IP65 dynamic vandal proof Stainless Steel industrial keypad with industrial electronics controller shielded and protected via stainless steel housing, industrial metal dome PCB with gold-on-gold key switch technology with short stroke 0.45mm with excellent tactile feeling for stable and accurate data input, stainless steel key caps etched out via special professional way and filled with transparent epoxy for backlight out, with industrial backlight included (red/blue/white/green optional), top stainless steel plate with welded studs and water-tight gasket for easy mounting and tightening to enclosure or panel. Which is good for outdoor application with direct rain and very harsh environments withhumidity, much dynamic water, oil, dirt, salt mist etc. DIMENSIONS: 120.0mm × 98.0mm (front panel)
ELECTRICAL DATA | Supply Voltage | DC +5V±5% | Current Rating | 150mA | EMC Standard | EN 55032:2015 EN 55035:2017 | Lifespan | > 5 years | Switch Contact Material | Gold-on-Gold key switch technology PCB | Interface | PS2, USB, RS232, RS485 available | OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos-To be confirmed). | COMMUNICATION PARAMETER | PS2/USB | 1 | Standard PS2/USB keyboard interface | 2 | 16 actuators: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, Cancel, Clear, Enter, backup key 3, 4 x 4 scanning code | 3 | Any customized layout/codes are available upon customers’ requirements | RS232 | 1 | Standard RS232 serial interface | 2 | Communication velocity: 9600bps | 3 | Data format: N, 8, 1 | 4 | 16 actuators: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, Cancel, Clear, Enter, backup key 3, 4 x 4 scanning code. | 5 | Any customized layout/codes are available upon customers’ requirements | MECHANICAL DATA | Front Plate | 1.5mm thickness super quality brushed stainless steel | Back Plate | 1.5mm thickness super quality stainless steel | Actuator/keys | 16 keys, 1.50mm thickness super quality SUS304 brushed stainless steel flat key. | Key top style | Non-protuberant rectangular keys, laser engraved & etched legends on keys are available | Key Size | 14.0mm x 14.0mm for normal keys, 14.0mm*28.0mm for longer keys | Key Travel | 0.45mm±0.05mm | Actuation Force | 3.5N±0.2N for key 14.0mm x 14.0mm (pressure point) 7.0N±0.4N for key 14.0mm x 28.0mm (pressure point) | Switch Life | more than 1 million of operations | G.W. | 0.60KGs | ENVIRONMENTAL ADAPTABILITY | Operating Temperature | -20℃ to +65℃ | Storage Temperature | -30℃ to +75℃ | Operating RH | 30-90% | Atmospheric Pressure | 60-106Kpa | Saline Mist | 96 hours, IEC 60512-6 | Damp heat test at +40℃ | 21 days, IEC 60512-6 | Dry heat test at +85℃ | 10 days, IEC 60512-6 | RELIABILITY | RoHS Compliant, CE and FCC, ESD | Protection Level | IP65 dynamic (front panel) | Vandal Resistant | IK09 | Key Lifespan | >1 million actuations | MTBF | >20000H | MTTR | <30min | APPLICATIONS | Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc. |
|
