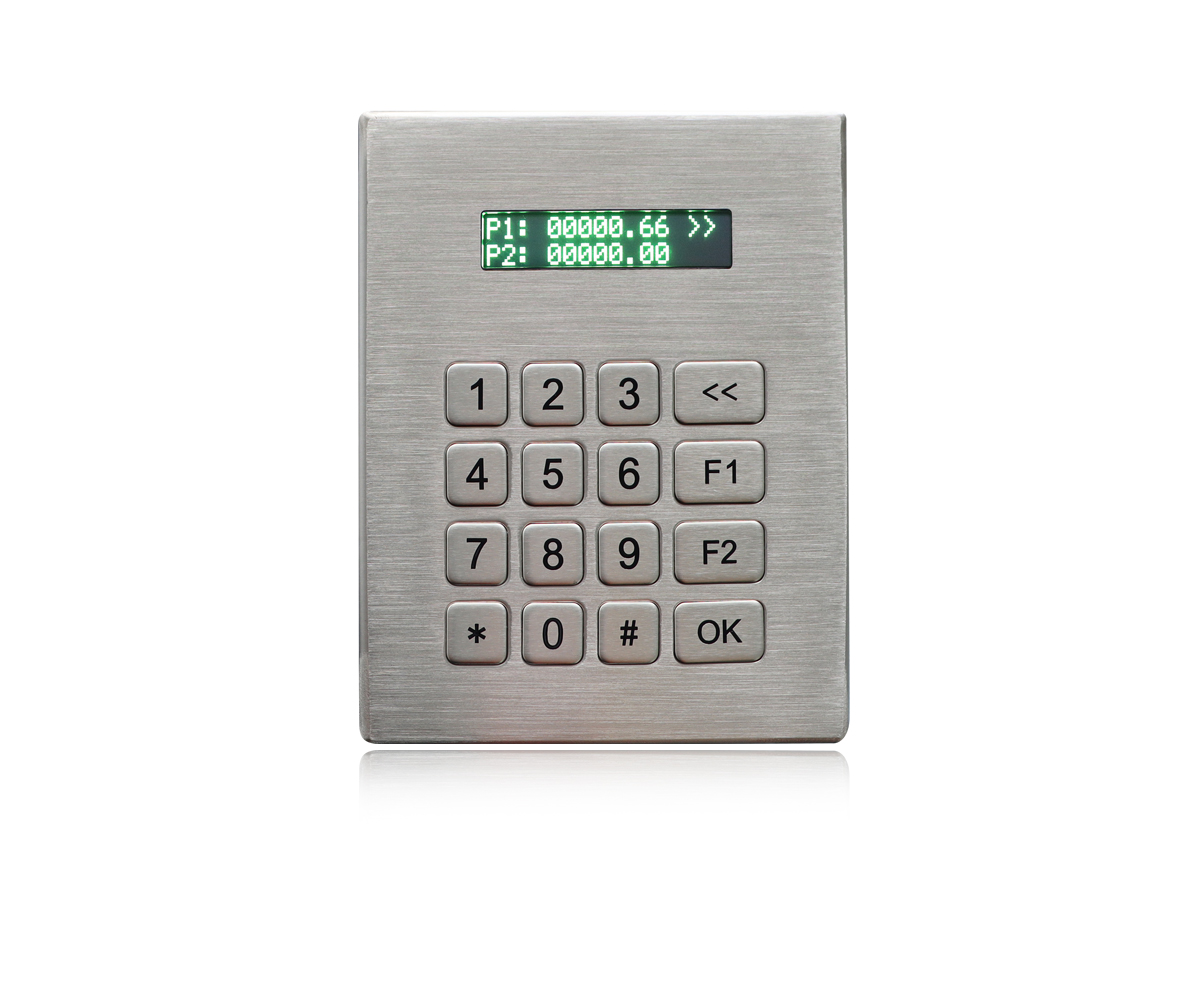

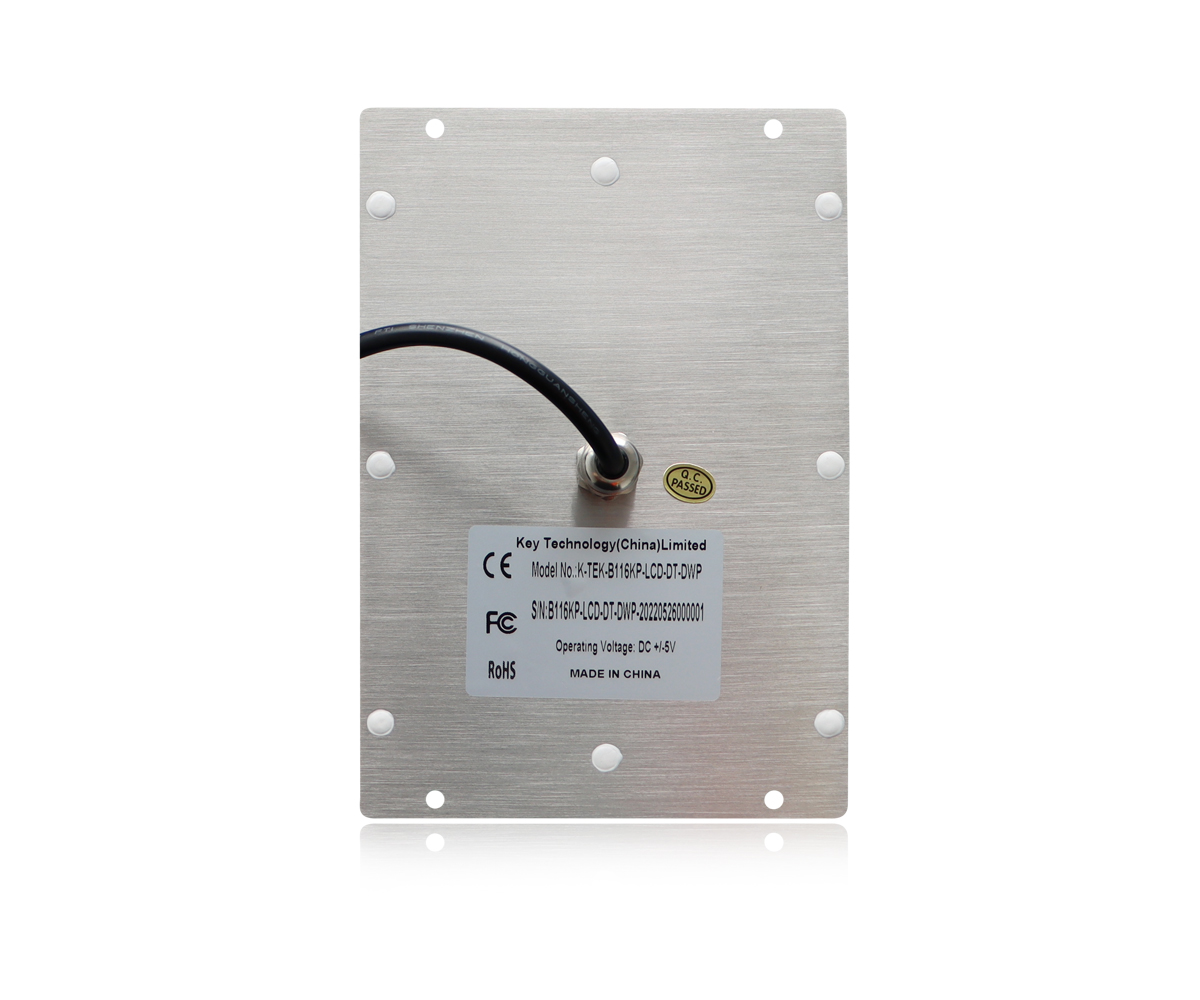

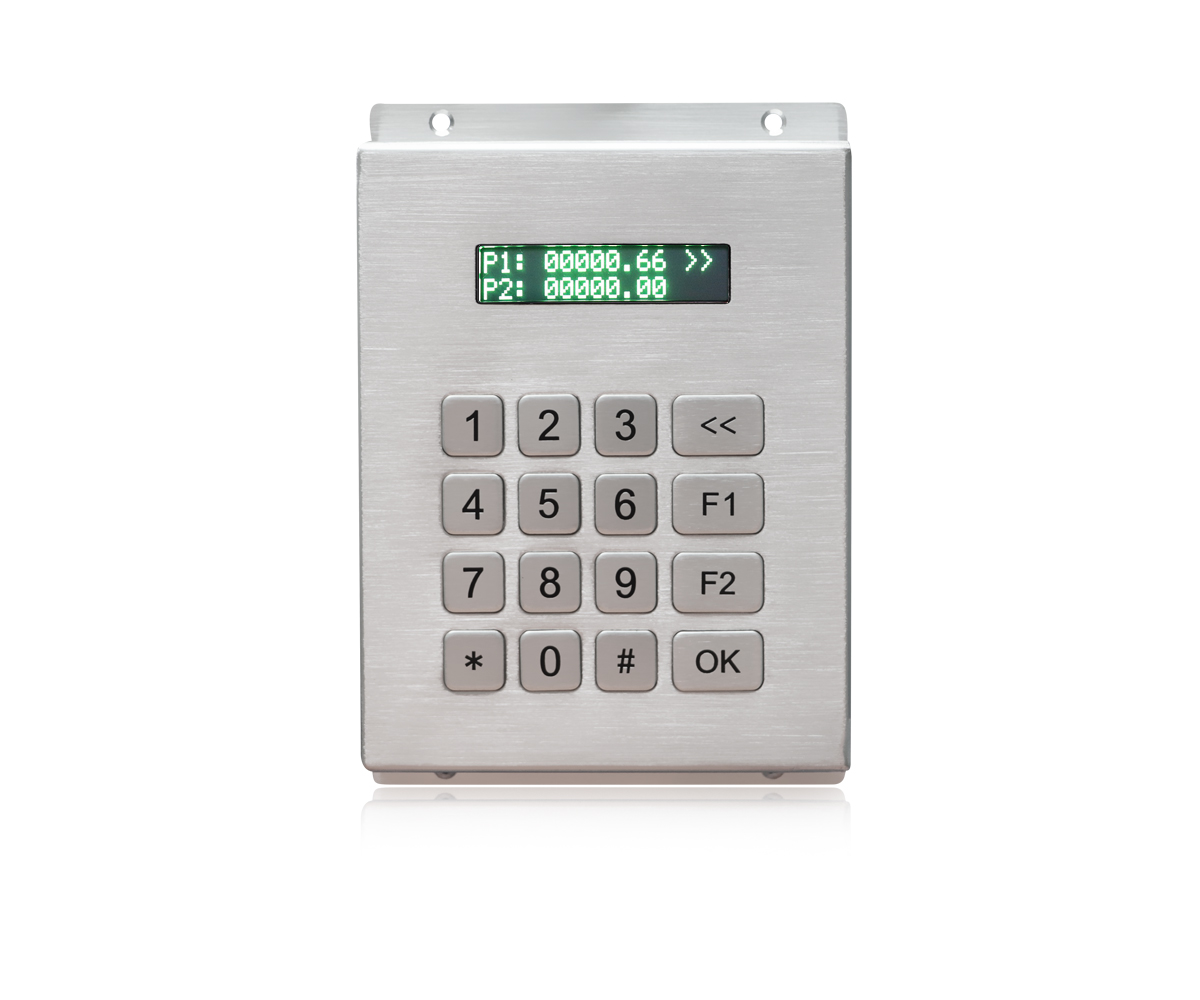

DESCRIPTION: 16 keys compact format IP68 dynamic waterproof vandal proof Stainless Steel industrial keypad with LCD display integrated, industrial metal dome PCB with gold-on-gold key switch technology with short stroke 0.45mm with excellent tactile feeling for stable and accurate data input, mountable desktop version with mounting holes. Backlight (red/blue/white/green) optional. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc., LCD keypad of VFD keypad optional.
DIMENSIONS: 116.0mm x 166.0mm x 30.5mm
ELECTRICAL DATA |
Supply Voltage | DC +5V±5% |
Current Rating | 30mA |
EMC Standard | EN 55032:2015 EN 55035:2017 |
Lifespan | > 5 years |
Switch Contact Material | Gold-on-Gold key switch technology PCB |
Interface | RS232 |
OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos-To be confirmed). |
MECHANICAL DATA |
Front Plate | 1.5mm thickness super quality brushed stainless steel |
Back Plate | 1.5mm thickness super quality stainless steel |
Actuator/keys | 16 keys, 1.50mm thickness super quality SUS304 brushed stainless steel flat key. |
Key top style | Non-protuberant rectangular keys, laser engraved & etched legends on keys are available. |
Key Size | 14.0mm x 14.0mm for normal keys, 14.0mm x 21.0mm for longer keys, |
Key Travel | 0.45mm±0.05mm |
Actuation Force | 3.5N±0.2N for key 14.0mm x 14.0mm (pressure point) 3.5N±0.2N for key 14.0mm x 21.0mm (pressure point) |
Switch Life | more than 1 million of operations |
G.W. | 1.10KGs |
ENVIRONMENTAL ADAPTABILITY |
Operating Temperature | -20℃ to +65℃ |
Storage Temperature | -30℃ to +75℃ |
Operating RH | 30-90% |
Atmospheric Pressure | 60-106Kpa |
Saline Mist | 96 hours, IEC 60512-6 |
Damp heat test at +40℃ | 21 days, IEC 60512-6 |
Dry heat test at +85℃ | 10 days, IEC 60512-6 |
RELIABILITY |
RoHS Compliant, CE and FCC, ESD |
Protection Level | IP68 |
Vandal Resistant | IK09 |
Key Lifespan | >1 million actuations |
MTBF | >20000H |
MTTR | <30min |
APPLICATIONS | Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc. |
