DESCRIPTION: 16 keys compact format IP65 dynamic water proof and vandal proof Stainless Steel industrial numeric keypad with fully sealed & ruggedized industrial metal dome PCB with industrial electronics controller shielded and protected by stainless steel housing, industrial metal dome PCB with gold-on-gold key switch technology with short stroke 0.45mm with excellent tactile feeling for stable and accurate data input, stainless steel key caps etched out via special professional way and filled with transparent epoxy for backlight out, industrial backlight included (Red/blue/white/green optional), stainless steel back plate with holes for rear mounting solution. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc.

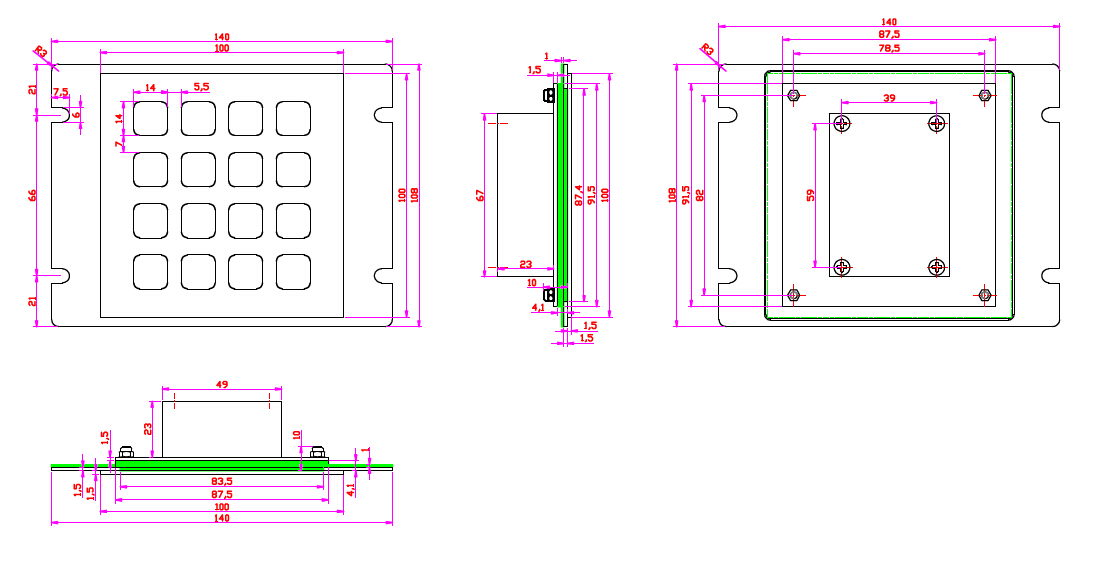

DIMENSIONS: 100.0mm x 100.0mm (front panel)
EN 55032:2015 EN 55035:2017
> 5 years
Switch Contact Material
Gold-on-Gold key switch technology PCB
PS2, USB, RS232, RS485 available
All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos-To be confirmed).
1.5mm thickness super quality brushed stainless steel
1.5mm thickness super quality stainless steel
16 keys, 1.50mm thickness super quality SUS304 brushed stainless steel flat key.
Key top style
Non-protuberant rectangular keys, laser engraved & etched legends on keys are available
14.0mm x 14.0mm for normal keys
3.5N±0.2N for key 14.0mm x 14.0mm (pressure point)
more than 1 million of operations
-20℃ to +65℃
-30℃ to +75℃
96 hours, IEC 60512-6
Damp heat test at +40℃
21 days, IEC 60512-6
Dry heat test at +85℃
10 days, IEC 60512-6
RoHS Compliant, CE and FCC, ESD
IP65 dynamic (front panel)
>1 million actuations
Industrial, coal and mine, medical, bank kiosk and self service terminal, public access,
explosion-proof automation, oil and gas etc.
