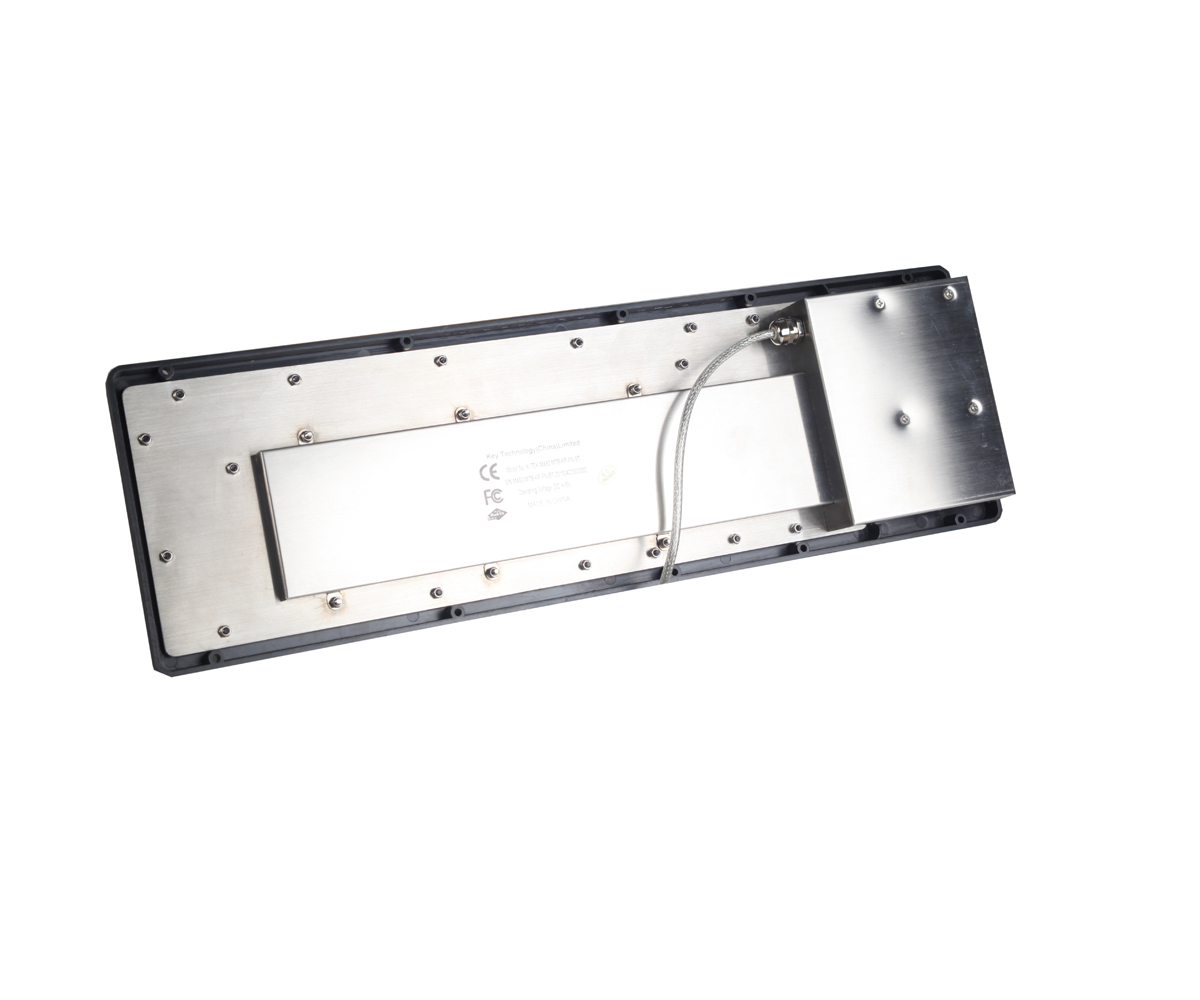

DESCRIPTION: 106 keys IP65 vandal proof industrial & marine keyboard with full keyboard functionalities, integrated IP68 dynamic washable 38mm stainless steel optical trackball module with 800 DPI resolutions for fast and accurate cursor position, with numeric keypad and function keys (F1, F2…F11, F12) on the top line, with industrial PCB with carbon-on-gold key switch technology with key stroke 1.50mm with extremely good tactile feeling for fast and accurate input without any noise, with FN+CLEAN key lock/disable the keyboard for easy cleaning and washing without needing to take out the keyboard from PC, high quality durable black titanium electroplated on the top stainless steel plate, rear panel mounted, adjustable red backlight included to fit for dark environments.
DIMENSIONS: 460.0mm x 129.5mm (top panel)
MECHANICAL DATA |
Actuator/keys | 106 keys(Including 3 mouse buttons), durable and robust polymer keys |
Key top style | Protuberant rectangular keys, laser engraved & etched legends on keys are available |
Actuator/keys materials | Polymer |
Key travel | 1.50mm±0.10mm |
Actuation Force | 1.5N±0.2N for normal keys, 2.0N±0.2N for Enter key (pressure point) |
Track ball | IP68 dynamic washable 38.0mm stainless steel optical trackball module, silver harden resin optical trackball module optional. |
Switch life | more than 5 million of operations |
Lettering | laser-etched or high quality ink print |
G.W. | 2.50KGs |
ELECTRICAL DATA |
Supply Voltage | DC +5V±5% |
Current Rating | 50mA for keyboard without backlight. 300mA for keyboard with backlight on. |
EMC Standard | EN 55032:2015 EN 55035:2017 |
Lifespan | > 5 years |
Switch Contact Material | Carbon-on-Gold key switch technology PCB |
Interface | PS2, USB available |
OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
ENVIRONMENTAL ADAPTABILITY |
Operating temperature | -20℃ to +65℃ |
Storage temperature | -30℃ to +75℃ |
Operating RH | 100% |
Atmospheric pressure | 60-106Kpa |
Saline mist | 96 hours, IEC 60512-6 |
Damp heat test at +40℃ | 21 days, IEC 60512-6 |
Dry heat test at +85℃ | 10 days, IEC 60512-6 |
RELIABILITY |
RoHS Compliant, CE and FCC, ESD |
Protection Level | IP65 |
Vandal resistant | IK09 |
Key Lifespan | >5 million actuations |
MTBF | >20000H |
MTTR | <30min |
APPLICATIONS | Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc. |
