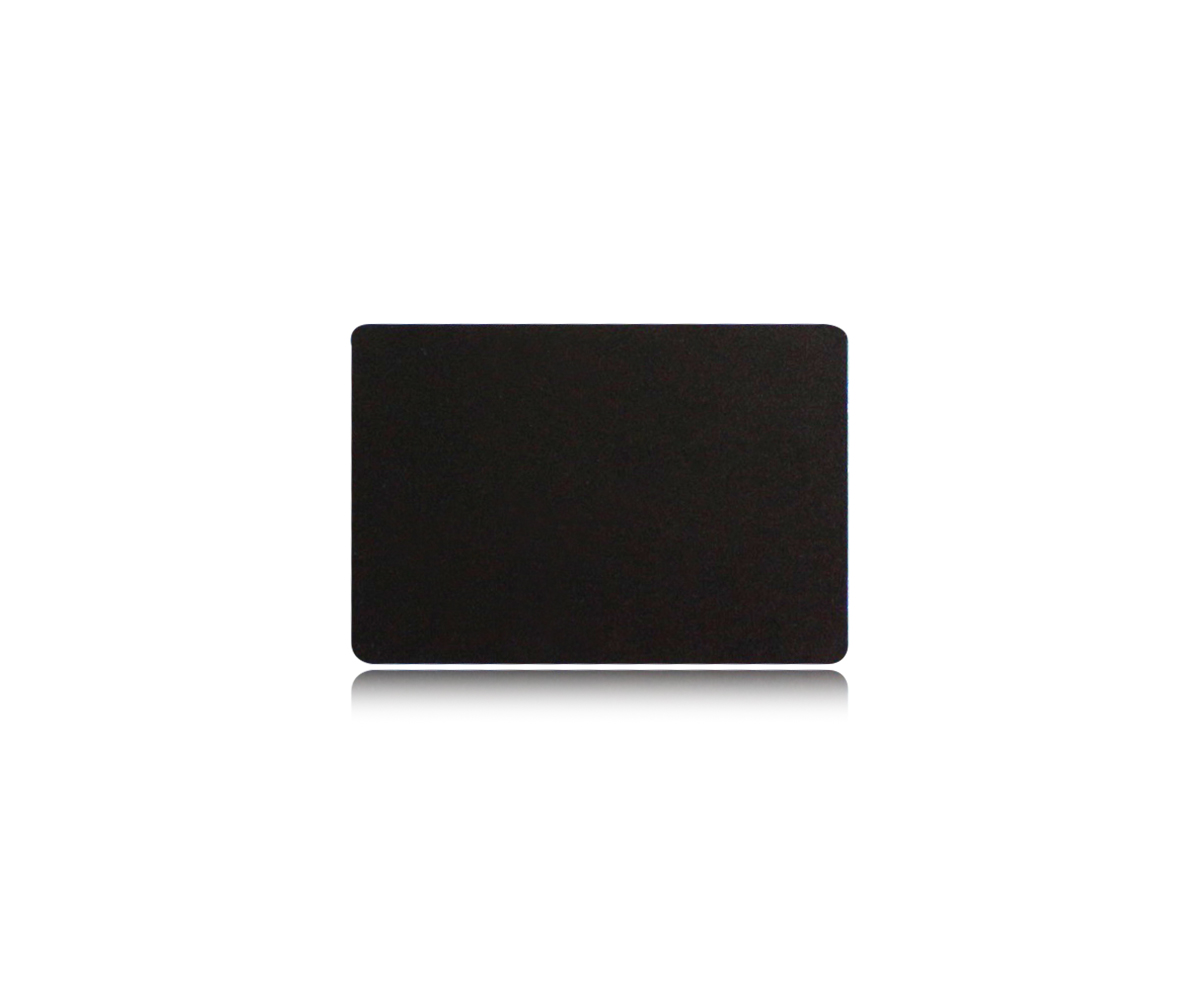

DESCRIPTION: K-TEK-TP7954-USB PS2 is a high performance humanize designed touchpad module especially for Laptops, Notebooks and EPC products. Utilizing capacitive sensing technology to provide accurate cursor motion at X, Y directions through fingers. Function as complete computer mouse via USB/PS2 interface. Plug-and-play. With multi-touch functionality optional in difference with conventional mouse.
DIMENSIONS: 79.3mm x 54.3 mm
MECHANICAL DATA |
Touch pad | 1.3mm thick PCB, containing polyester film |
Touchpad cover | Composite |
More than Lifetime 10 million strokes |
Mutual capacitance sensing |
X/Y axis location detection resolution | 40 Counts /mm |
X/Y position report | relative |
Output (self-detectable depending on cable) | PS2 or USB |
Tracking speed | Maximum 1,016 m/sec |
Power supply voltage | 5V ± 0.25V |
Current rating (active mode) | < 10 mA |
G.W. | 0.2KGs |
ELECTRICAL DATA |
Supply Voltage | DC +5V±5% |
Current Rating | 10mA |
EMC Standard | EN 55032:2015 EN 55035:2017 |
Lifespan | > 5 years |
Interface | USB or PS2 |
OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
ENVIRONMENTAL ADAPTABILITY |
Operating temperature | -20℃ to +55℃ |
Storage temperature | -30℃ to +70℃ |
Saline mist | 96h, IEC60512-6 |
Damp heat test at +40℃ | 21 days, IEC 60512-6 |
Dry heat test at +85℃ | 10 days, IEC 60512-6 |
Humidity | 100% |
RELIABILITY |
RoHS compliant, CE and FCC certified |
Protection Level | IP65 dynamic (front panel) |
MTBF | >20000H |
MTTR | <30min |
APPLICATIONS | Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc. |
