Product Detail

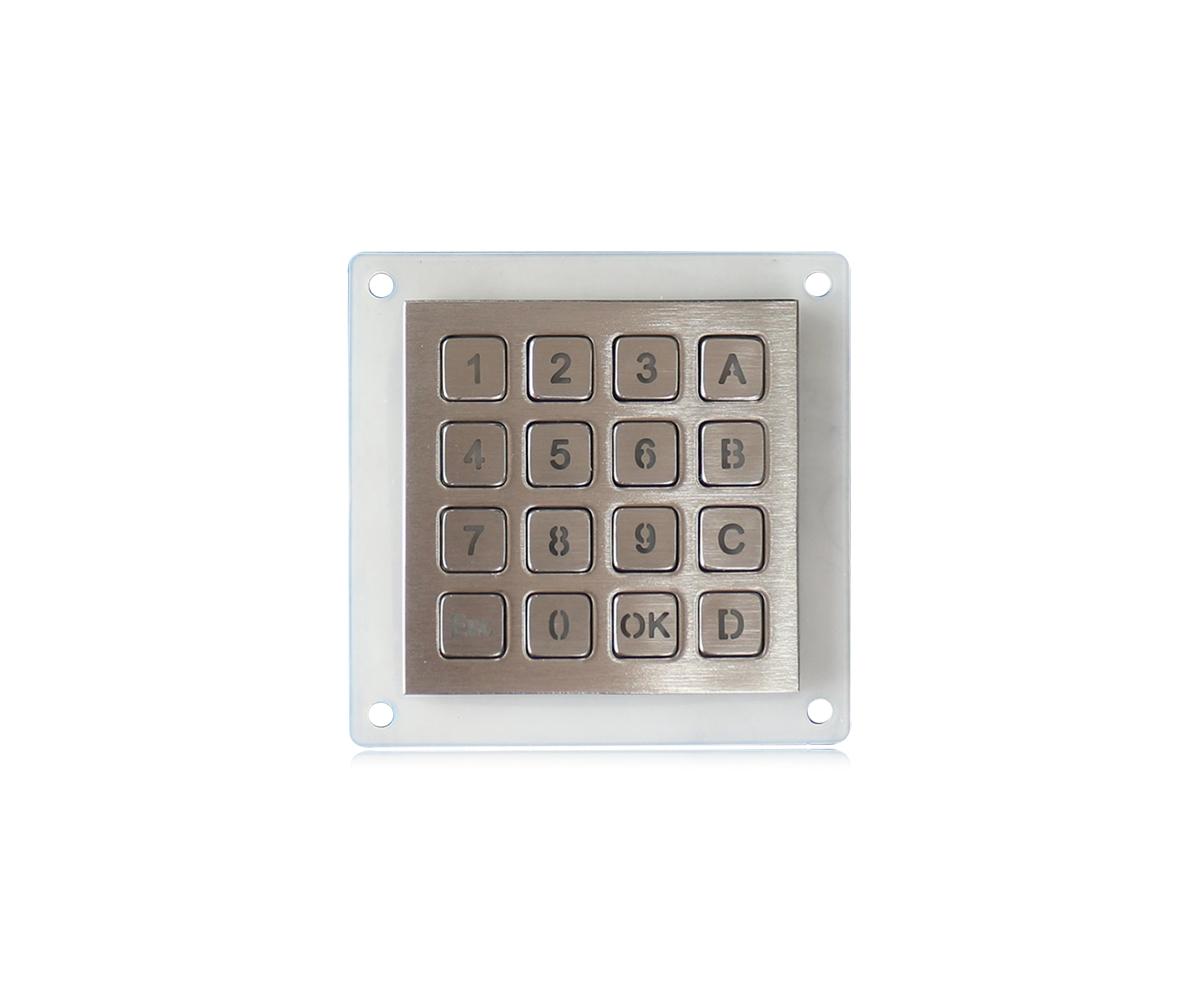

K-TEK-B60-16-KP-BL-DWP

Category: Stainless steel keypad
Key Number: 16 keys
Key Travel: 0.45±0.05mm
Backlight: White/Blue/Red/Green
Interface: PS2, USB, RS232, RS485 available
Key Switch: Metal dome gold-on-gold
Protection Level: IP65 dynamic (front panel)
Mounting Solution: Rear panel mount
Operating Temperature: -20ºC to +65 ºC
Application: Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc.
Description
Download

DESCRIPTION: 16 keys compact format IP65 dynamic water proof and vandal proof and Stainless Steel industrial keypad with industrial metal dome PCB electronics controller shielded & protected by stainless steel housing, industrial metal dome PCB with gold-on-gold key switch technology with short stroke 0.45mm with excellent tactile feeling for stable and accurate data input, with rear stainless steel plate with mounting holes and water-tight gasket for easy mounting and tightening to enclosure or panel. Stainless steel keys etched out via professional way and filled with transparent epoxy for backlight out. Industrial Backlight (red/blue/white/green optional) included. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc.

DIMENSIONS: 60.0mm × 60.0mm (front panel)、


ELECTRICAL DATA

Supply Voltage

DC +5V±5%

Current Rating

150mA

EMC Standard

EN 55032:2015   EN 55035:2017

Lifespan

> 5 years

Switch Contact Material

Gold-on-Gold key switch technology PCB

Interface

PS2, USB, RS232, RS485 available

OS

All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos-To be confirmed).

COMMUNICATION PARAMETER

PS2/USB

1

Standard PS2/USB keyboard interface

2

16 actuators: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, Cancel, Clear, Enter, backup key 3, 4 x 4 scanning code

RS232

1

Standard RS232 serial interface

2

Communication velocity: 9600bps

3

Data format: N, 8, 1

4

16 actuators: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, Cancel, Clear, Enter, backup key 3, 4 x 4 scanning code.

MECHANICAL DATA

Front Plate

1.5mm thickness super quality brushed stainless steel

Back Plate

1.5mm thickness super quality stainless steel

Actuator/keys

16 keys, 1.50mm thickness super quality SUS304 brushed stainless steel flat key

Key top style

Non-protuberant rectangular keys, laser engraved & etched legends on keys are available

Key Size

10.0mm x 10.0mm for normal keys

Key Travel

0.45mm±0.05mm

Actuation Force

2.5N±0.2N for key 10.0mm x 10.0mm (pressure point)

Switch Life

more than 1 million of operations

G.W.

0.40KGs

ENVIRONMENTAL ADAPTABILITY

Operating Temperature

-20℃ to +65

Storage Temperature

-30℃ to +75

Operating RH

30-90%

Atmospheric Pressure

60-106Kpa

Saline Mist

96 hours, IEC 60512-6

Damp heat test at +40℃

21 days, IEC 60512-6

Dry heat test at +85℃

10 days, IEC 60512-6

RELIABILITY

RoHS Compliant, CE and FCC, ESD

Protection Level

IP65

Vandal Resistant

IK09

Key Lifespan

>1 million actuations

MTBF

>20000H

MTTR

<30min

APPLICATIONS

Industrial, coal and mine, medical, bank kiosk and self service terminal, public access,

explosion-proof automation, oil and gas etc.
