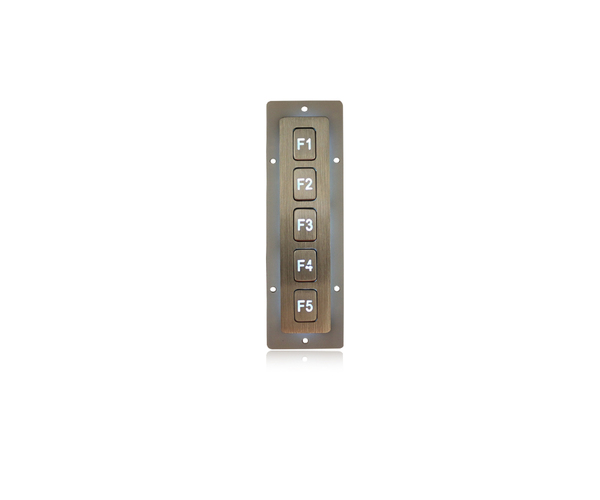

K-TEK-B135FK-5-AC-BL-DWP industrial backlight keypad

Category：	Stainless steel keypad
Key Number：	5 keys
Key Travel：	0.45±0.05mm
Backlight：	White/Blue/Red/Green
Interface：	Dot Matrix
Key Switch：	Metal dome gold-on-gold
Protection Level：	IP65 dynamic (front panel)
Mounting Solution：	Rear panel mount
Operating Temperature：	-20ºC to +65ºC
Application：	Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc.

Prev： K-TEK-B160FK-6-AC-BL-DWP

Next： K-TEK-B110FK-4-AC-BL-DWP

Description

Download

DESCRIPTION: 5 Keys IP65 dynamic water proof rated Vandal proof Stainless Steel industrial matrix function keypad with totally sealed and ruggedized metal dome PCB with gold-on-gold key switch technology with short stroke 0.45mm with excellent tactile feeling for stable and accurate data input, without electronics controller, flat stainless steel key caps etched out via special professional way and filled with transparent epoxy for backlight out, Industrial backlight included, (red/blue/white/green optional). Rear stainless steel back plate with mounting holes and water-tight rubber sealing gasket for easy sealing and tightening with cabinet, rear panel mounting. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion.

DIMENSIONS: 135.0mm x 30.0mm

ELECTRICAL DATA
Supply Voltage	DC +5V±5%
Current Rating	100mA
EMC Standard	EN 55032:2015 EN 55035:2017
Lifespan	> 5 years
Switch Contact Material	Gold-on-Gold key switch technology PCB
Interface	dot matrix
OS	All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos-To be confirmed).
MECHANICAL DATA
Front Plate	1.5mm thickness super quality brushed stainless steel
Back Plate	1.5mm thickness super quality stainless steel
Actuator/keys	5 keys, 1.50mm thickness super quality SUS304 brushed stainless steel flat key.
Lettering	laser engraving, or raised letters
Key Size	14.0mm x 21.0mm for normal keys
Key Travel	0.45mm±0.05mm
Actuation Force	3.5N±0.2N (pressure point)
Switch Life	more than 1 million of operations
G.W.	0.20KGs
ENVIRONMENTAL ADAPTABILITY
Operating Temperature	-20℃ to +65℃
Storage Temperature	-30℃ to +75℃
Operating RH	30-90%
Atmospheric Pressure	60-106Kpa
Saline Mist	96 hours, IEC 60512-6
Damp heat test at +40℃	21 days, IEC 60512-6
Dry heat test at +85℃	10 days, IEC 60512-6
RELIABILITY
RoHS Compliant, CE and FCC, ESD
Protection Level	IP65 dynamic (front panel)
Vandal Resistant	IK09
Key Lifespan	>1 million actuations
MTBF	>20000H
MTTR	<30min
APPLICATIONS	Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc.

K-TEK-B135FK-5-AC-BL-DWP--mechanical drawing
