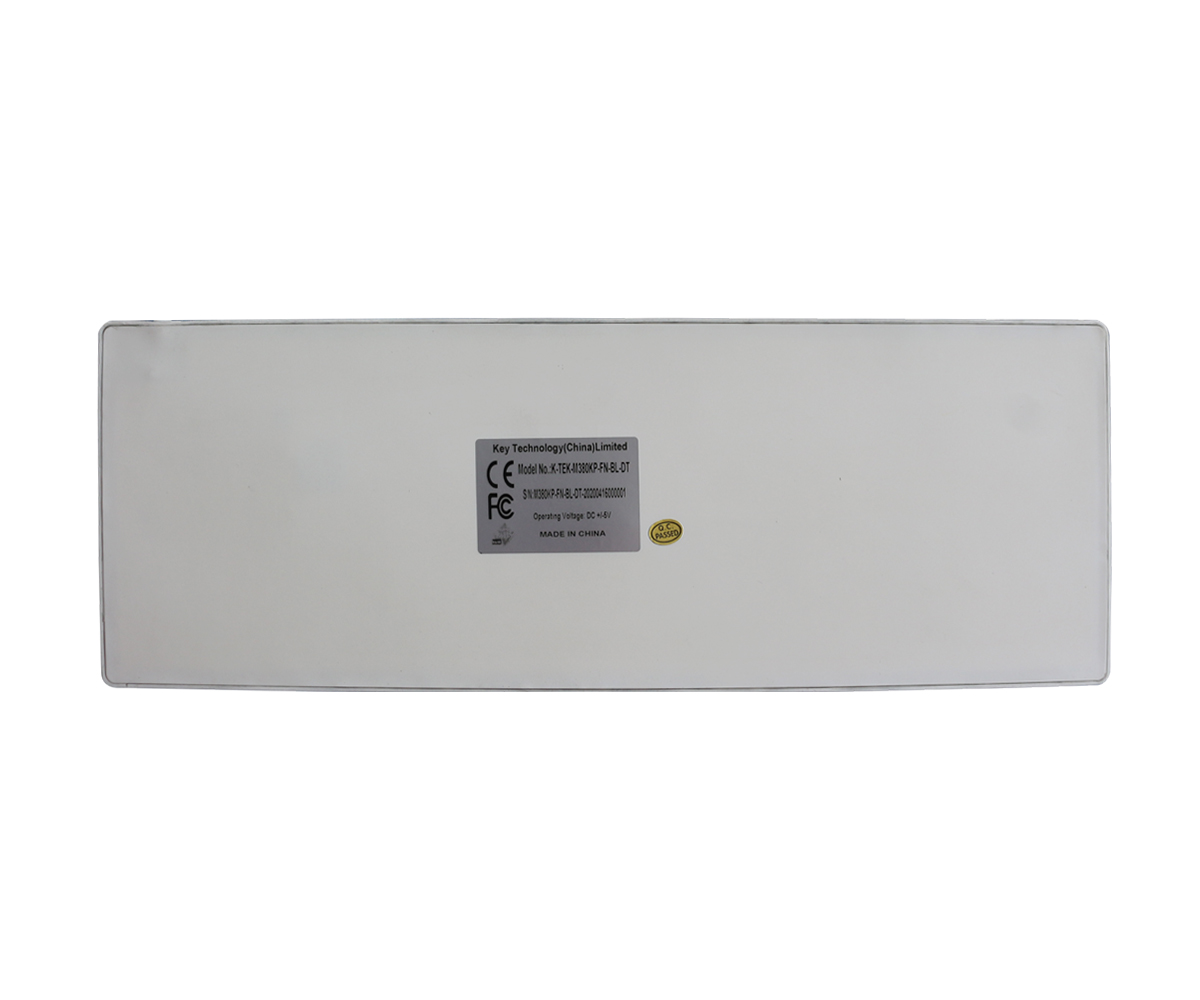

K-TEK-M380KP-FN-BL-DT medical silicone rubber keyboard with backlight

Category：	Silicone Medical Keyboard
Key Number：	110 keys
Key Travel：	1.50mm±0.10mm
Backlight：	Blue
Interface：	USB
Key Switch：	Carbon-on-gold
Protection Level：	IP68
Mounting Solution：	Flat desk top solution
Operating Temperature：	-20ºC to +65 ºC
Application：	Medical kiosk, medicine and pharmaceutical, labs, dental, clinics, hospitals, food processing, beverage and other industrial applications.

Prev： K-TEK-M380KP-FN-DT desktop medical keyboard

Next： K-TEK-M378KP-FN-DT-WF 2.4GHZ silicone wireless keyboard

Description

Download

DESCRIPTION: 110 keys IP68 dynamic sealed & ruggedized industrial silicone rubber Hygienic contamination-proof keyboard with full keyboard functionalities with FN (F1, F2...F11, F12) on upper line, integrated numeric keypad, gold-finish PCB with carbon-on-gold key switch technology with long stroke (1.50mm) with extremely good tactile feeling for fast and accurate data input without any noise, with durable coating & antimicrobial keyboard surface withstand to most chemicals and liquids under harsh environment, this washable keyboard is an ideal solution to withstand to most chemicals and liquids under harsh environment, standalone desk top version. With EN-60601-1-2 Medical Standard.

DIMENSIONS: 380.0mm x 130.0mm x 10.0mm (L x W x H)

MECHANICAL DATA
Keys	110 keys
Key top style	Protuberant rectangular keys with tactile feeling
Key travel	1.50mm±0.1mm
Actuation Force	1.5N±0.2N (pressure point )
Switch life	more than 5 million of operations
G.W.	0.80KGs
ELECTRICAL DATA
Supply Voltage	DC +5V±5%
Current Rating	30mA when backlight is off, 300mA with backlight on
EMC Standard	EN 55032:2015 EN 55035:2017
Lifespan	> 5 years
Switch Contact Material	Carbon-on-Gold key switch technology with gold PCB
Interface	USB available
OS	Windows,Android, IOS (U-cos--To be confirmed)
ENVIRONMENTAL ADAPTABILITY
Operating temperature	-20℃ to +65℃
Storage temperature	-30℃ to +75℃
Operating RH	100%
Atmospheric pressure	60-106Kpa
Saline mist	96 hours, IEC 60512-6
Damp heat test at +40℃	21 days, IEC 60512-6
Dry heat test at +85℃	10 days, IEC 60512-6
RELIABILITY
RoHS compliant, CE and FCC certified
Protection Level	IP68
Key Lifespan	>5 million actuations
MTBF	>20000H
MTTR	<30min
APPLICATIONS	Medical kiosk, medicine and pharmaceutical, labs, dental, clinics, hospitals, food processing, beverage and other industrial applications.

K-TEK-M380KP-FN-BL-DT--mechanical drawing
