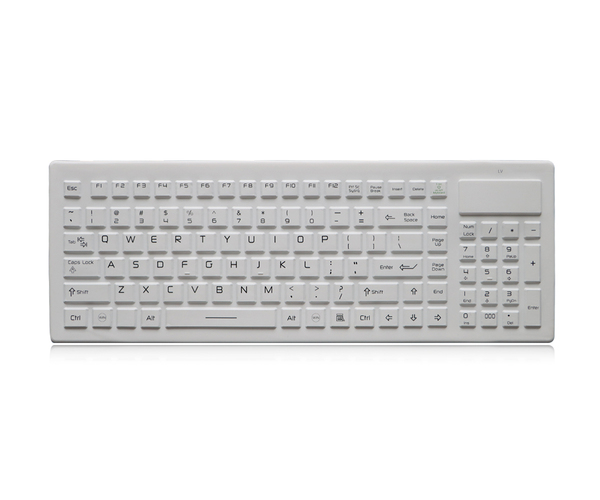

K-TEK-M378KP-FN-DT-WF 2.4GHZ silicone wireless keyboard

Category：	Silicone Medical Keyboard
Key Number：	106 keys
Key Travel：	1.50mm±0.10mm
Backlight：	No
Interface：	2.4Ghz Wireless
Key Switch：	Carbon-on-gold
Protection Level：	IP68
Mounting Solution：	Flat desk top solution
Operating Temperature：	0℃~+70℃
Application：	Medical kiosk, medicine and pharmaceutical, labs, dental, clinics, hospitals, food processing, beverage and other industrial applications.

Prev： K-TEK-M380KP-FN-BL-DT medical silicone rubber keyboard with backlight

Next： K-TEK-M347TP-KP-FN-DT IP68 washable medical touchpad keyboard

Description

Download

DESCRIPTION: 106 keys IP68 dynamic sealed & ruggedized industrial silicone rubber 2.4GHz Wireless medical keyboard, integrated sealed

numeric keypad, function keys and industrial PCB with carbon-on-gold key switch technology with long stroke (1.50mm) with extremely good

tactile feeling for fast and accurate data input without any noise, with durable coating & antimicrobial keyboard surface withstand to most

chemicals and liquids under harsh environment, movable stand alone desk top version. Rigid and rugged, waterproof and washable, specially

designed for use in medical, industrial etc. applications, and can be used along with wireless mouse K-TEK-M65-OMS-DT-WF as combo set.

DIMENSIONS : 380.0mm x 130.0mm x 16.5mm (L x W x H)

MECHANICAL DATA
Keys	106 keys
Key top style	Protuberant rectangular keys with tactile feeling
Key travel	1.50mm±0.1mm
Actuation Force	1.5N±0.2N (pressure point )
Switch life	more than 5 million of operations
SYSTEM REQUIREMENTS
Operating System	Mac, Microsoft® Windows®7/8/10/Vista®/XP
Connectivity Interface	USB Port
Wireless Receiver	Plug and Play USB Connector
Battery Type	(2) AAA Batteries
TECHNICAL DATA
Connectivity	2.4 GHz RF Wireless Technology
Layout	1 87-Key US Layout
Battery Type	(2) AAA Batteries
Working Voltage	+3V DC±15%
Keyboard Working Current	+3V DC @ <6mA
Quiescent Current	+3V DC @ <3mA
Sleep Current	+3V DC @ <50uA
Working distance	up to 10 meters (30 feet)
Communication	Mini USB Wireless Receiver
Keyboard Dimensions	15 x 5.1 x 0.65" (380 x 130 x 16.5mm)
Mini USB Receiver Dongle Dimensions	0.74" x 0.57" x 0.25" (18.8 x 14.5 x 6mm)
Keyswitch Lifetime	> One million cycles
Keyboard Weight	780 ±10 g (without packaging)
WORKING ENVIRONMENT
Storage Temperature	-20°C to +65°C (-4°F to 158°F)
Operating Temperature	0°C to + 70°C (32°F to 158°F)
Protection level	IP68
Humidity	100%
APPLICATIONS	Medical kiosk, medicine and pharmaceutical, labs, dental, clinics, hospitals, food processing, beverage and other industrial applications.

K-TEK-M378KP-FN-DT-WF--mechanical drawing
