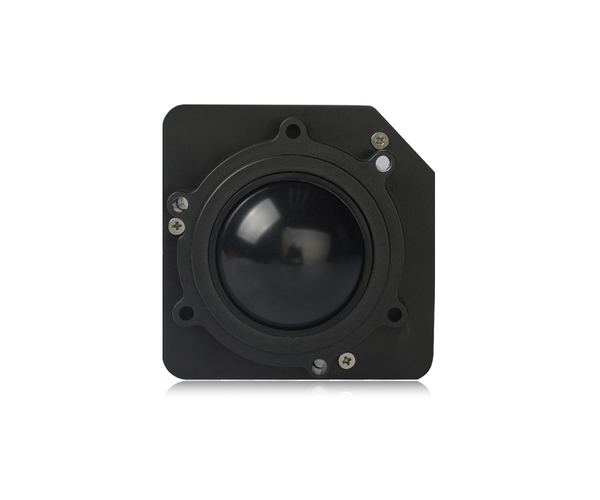

DESCRIPTION: 50.0mm vandal proof IP65 static mechanical black resin trackball module with 400DPI resolutions, military level with
wide temperature of -40°C to +75°C. USB interface, panel mounted solution.
DIMENSIONS: 77.50mm x 77.50mm(front panel)
TECHNICAL SPECIFICATION
ITEM | SPECIFICATION |
Mechanical Data | Ball diameter | 50mm/2.00’’ (19mm, 25mm, 38mm also available) |
Track ball lifespan | > 2 millions scrolling |
Dimension | 50.0 mm diameter for ball, 77.50mm x 77.50mm(front panel) |
Interface | USB available only |
Electrical | Power supply | DC +5V±5% |
Protection level | IP65 (static) |
EMC Standard | EN 55032:2015, EN 55035:2017 |
Power consuming | ≤1.00W(dynamic) |
≤0.2W(static) |
Environmental | Operating temperature | -40ºC~+ 75º C |
Storage temperature | -45ºC~+ 85ºC |
Operating RH | 30~90% |
Atmospheric pressure | 60~106Kpa. |
Reliable | Certificates | RoHS compliant, CE and FCC certified, ESD |
MTBF | >20000h |
MTTR | < 30min |
OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed) |
Packing Details | Each unit to a suitable brown inner box, suitable brown inner boxes to a standard export carton. |
Application | Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas, marine etc. |
