Product Detail

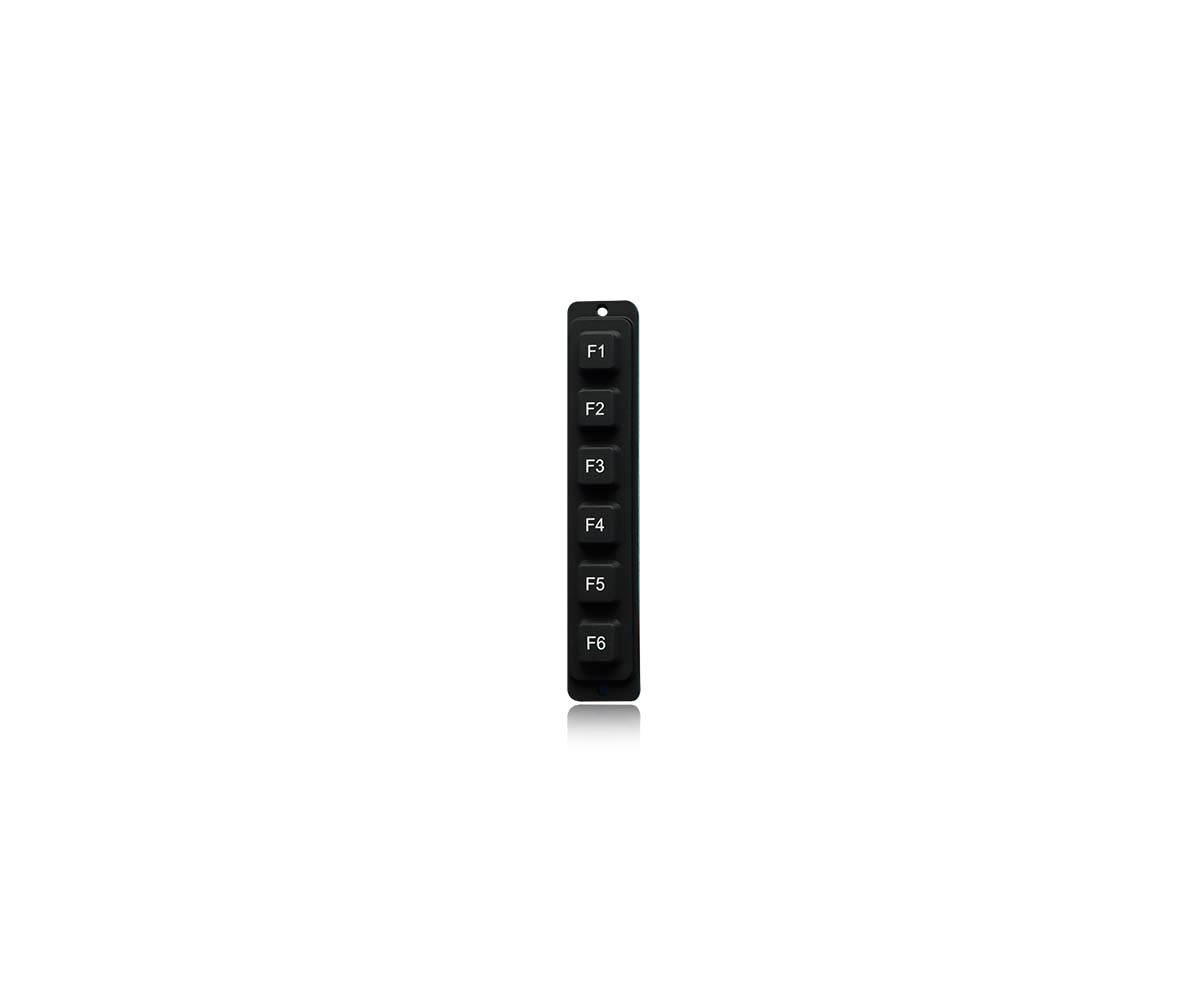

K-TEK-M18FK 6 keys functional silicone keypad

Category: Silicone keypad
Key Number: 6 keys
Key Travel: 1.50mm±0.10mm
Backlight: No
Interface: Dot Matrix
Key Switch: Carbon-on-gold
Protection Level: IP65 dynamic (front panel)
Mounting Solution: Rear panel mount
Operating Temperature: -20ºC to +65 ºC
Description
Download

DESCRIPTION: 6 Keys IP65 dynamic waterproof silicone matrix function keypad with totally sealed and ruggedized PCB with carbon-on-gold key switch technology with key stroke 1.5mm with excellent tactile feeling for stable and accurate data input, without electronics controller. Rear panel mounting. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion.

DIMENSIONS: 96.0mm x 18.0mm


MECHANICAL DATA

Switching Material

Carbon-on-Gold

Actuation Force

1.5N+/-0.2N (pressure point)

Key Travel

1.5mm±0.10mm

Lettering

laser engraving

Actuator/Keys Materials

silicone rubber

G.W.

0.10KGs

Key life

5 millions

ELECTRICAL DATA

Power Supply Voltage

DC +5V±5%

Power Consumption

17mA

Electrical Lifetime

> 5 years

EMC Standard:

EN 55032:2015, EN 55035:2017

OS

All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed)

ENVIRONMENTAL ADAPTABILITY

Operating Temperature

-20°C to +65°C

Storage Temperature

-30 °C to +75°C

Operating RH

30 90%

Atmospheric Pressure

60 106Kpa

Saline mist

96h, IEC60512-6

Damp heat test at +40℃

21 days, IEC 60512-6

Dry heat test at +85℃

10 days, IEC 60512-6

PRINTED CIRCUIT BOARD

94 V-0   SILICONE OVERLAY: 94 HB   INTERFACE CABLE: 94 HB

RELIABILITY

RoHS compliant, CE and FCC certified

Protection Level

IP65 dynamic (front panel)

Key Lifespan

>5 million actuations

MTBF

>20000h

MTTR

<30min

APPLICATIONS

Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc.
