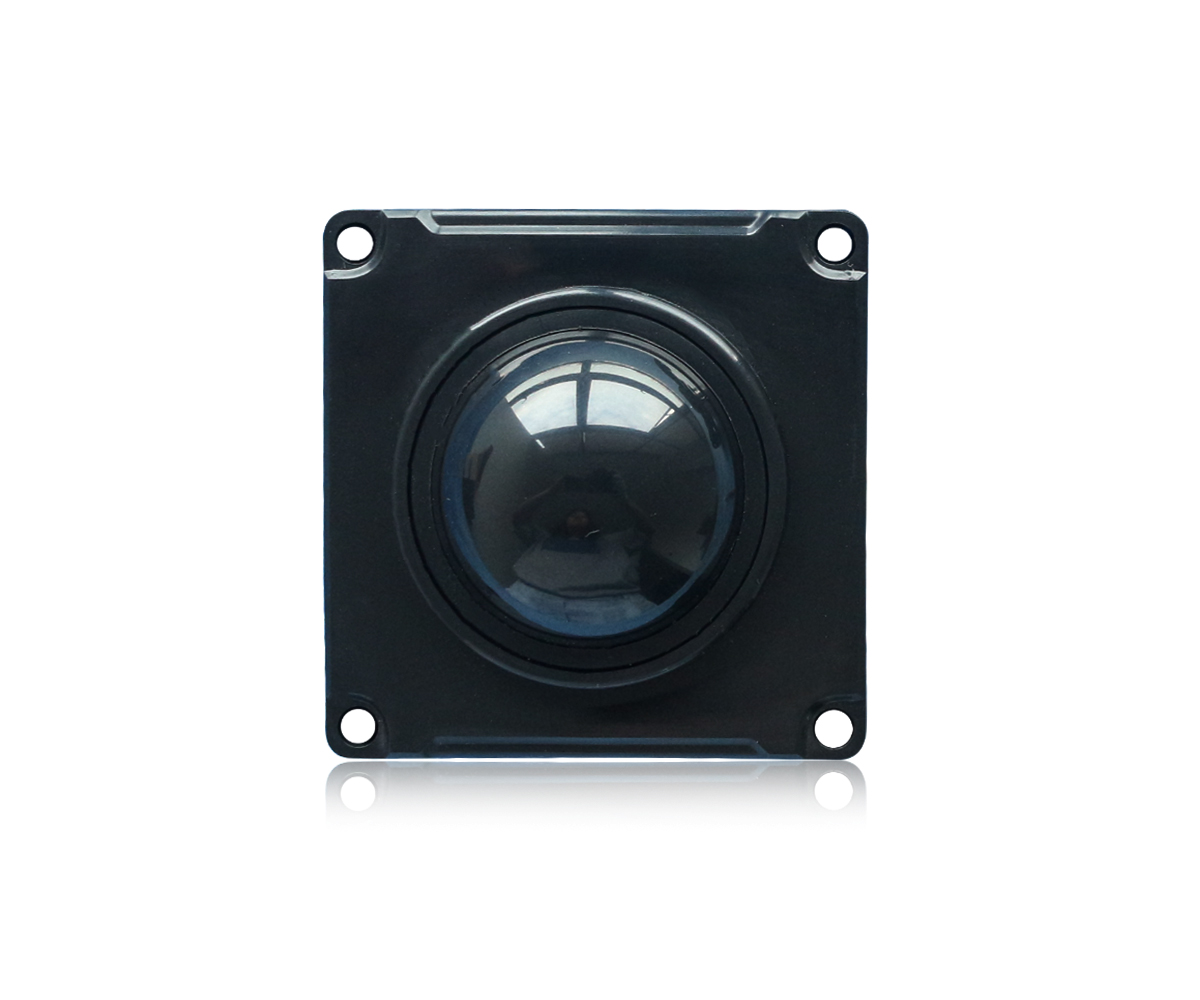

DESCRIPTION: 38.0mm (1.5’') vandal proof IP65 static military level mechanical trackball module, black harden resin ball with 400DPI resolutions,
military grade with wide temperature of -40°C to +75°C, anti-vibration, USB/PS2 interface, rear panel mounted solution.
DIMENSIONS: 60.30mm x 60.30mm x 25.43mm
TECHNICAL SPECIFICATION
ITEM | SPECIFICATION |
Mechanical Data | Ball diameter | 38mm/1.50’' |
Track ball lifespan | > 2 millions scrolling |
Dimension | 38 .1 mm diameter for ball, 60.30mm x 60.30mm x 25.43mm |
Interface | USB, PS2 |
Weight | 0.150KGs |
Electrical | Power supply | DC +5V±5% |
Protection level | IP65 (static) |
EMC Standard | EN 55032:2015, EN 55035:2017 |
Power consuming | ≤1.00W(dynamic) |
≤0.2W(static) |
Environmental | Operating temperature | -40ºC~+ 75º C |
Storage temperature | -45ºC~+ 85ºC |
Operating RH | 30~90% |
Atmospheric pressure | 60~106Kpa. |
Reliable | Certificates | RoHS compliant, CE and FCC certified, MIL-STD-810F (wide temperature, shock, vibration, fungus, humidity). |
MTBF | >20000h |
MTTR | < 30min |
OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android |
Packing Details | Each unit to a suitable brown inner box, suitable brown inner boxes to a standard export carton. |
Application | Industrial,rugged computer, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas, marine etc. |
