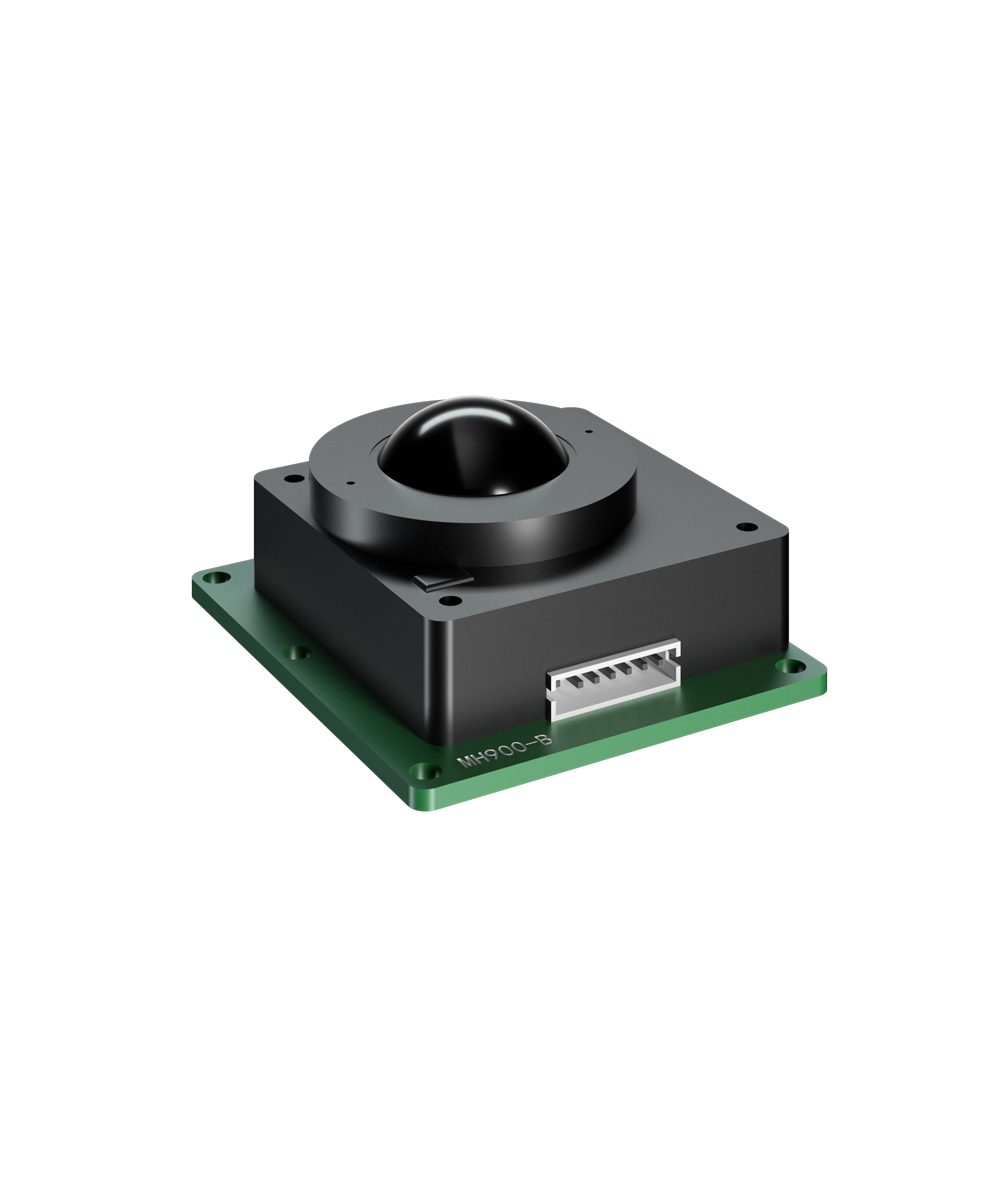

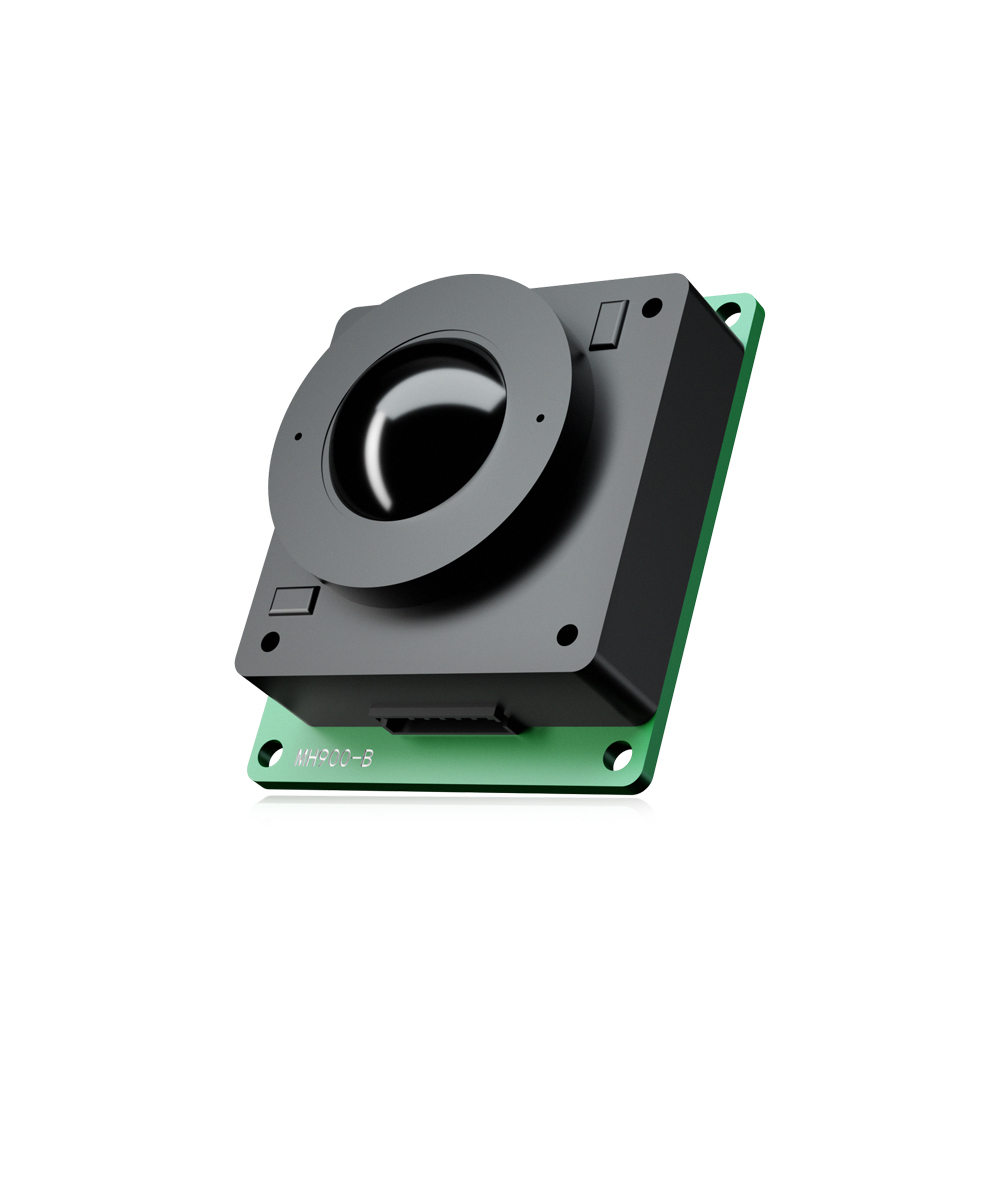

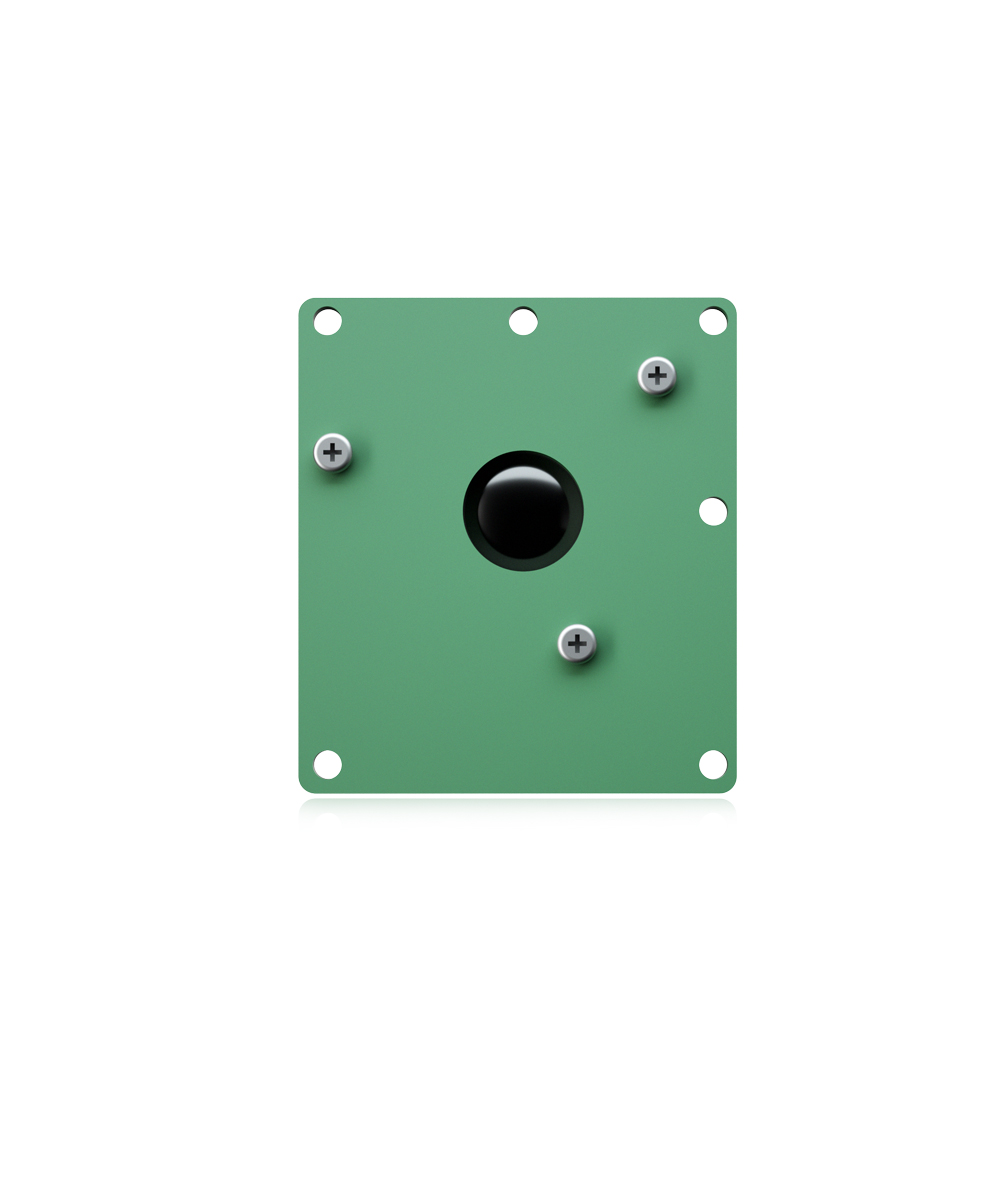

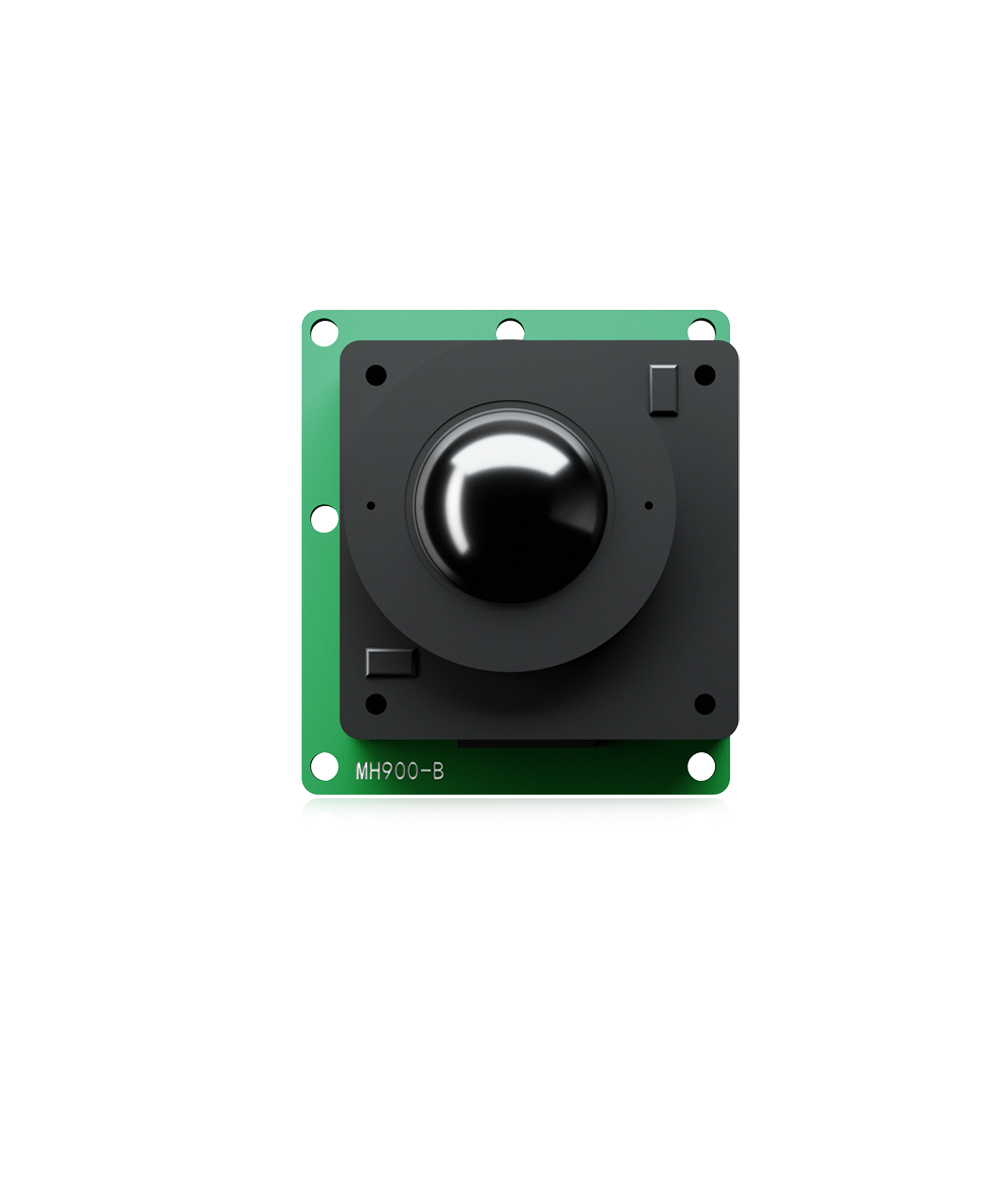

DESCRIPTION: 19mm vandal proof IP54 400DPI hardened resin black mechanical trackball module.
DIMENSIONS: 34.0mm x 34mm(front panel)
TECHNICAL SPECIFICATION
ITEM | SPECIFICATION |
Mechanical Data | Ball diameter | 19mm |
Track ball lifespan | > 2 millions scrolling |
Dimension | 19mm diameter for ball, 34.0mm x 34mm(front panel) |
Interface | PS2, USB are available, Y type cable with ports of PS2 and USB |
3 wires to connect mouse buttons |
Electrical | Power supply | DC +5V±5% |
Protection level | IP54 |
Power consuming | ≤1.00W(dynamic) |
≤0.2W(static) |
Environmental | Operating temperature | -20ºC~+ 65º C |
Storage temperature | - 30ºC~+ 75ºC |
Operating RH | 30～90% |
Atmospheric pressure | 60～106Kpa. |
Reliable | MTBF | >20000H |
MTTR | < 30min |
OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed) |
Packing Details | Each unit to a suitable brown inner box, suitable brown inner boxes to a standard export carton. |
Application | Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas, maritime etc. |
