Product Detail

K-TEK-B361TP-FN-DWP

Category: Stainless steel keyboard
Key Number: 85 keys (including 2 mouse buttons)
Key Travel: 0.45±0.05mm
Backlight: No
Interface: USB/PS2 optional
Key Switch: Metal dome gold-on-gold
Protection Level: IP65 dynamic (front panel)
Mounting Solution: Top panel mount with thread bolts
Operating Temperature: -20ºC to +65 ºC
Application: Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, marine, oil and gas etc.
Description
Download

DESCRIPTION: 85 keys (including 2 mouse buttons) compact format IP65 dynamic vandal proof stainless steel industrial keyboard with IP65 dynamic sealed and ruggedized tough touchpad for fast and accurate cursor position, industrial metal PCB with gold-on-gold key switch technology with short stroke (0.45±0.05mm) with extremely good tactile feeling for stable and accurate input without any noise, one complete silicone rubber along the underneath of stainless steel top plate for easy mounting & sealing tightly with cabinet, 2 mouse buttons designed for right & left clicking, function keys F1, F2..F10, F11, F12 are on the top panel for easy operation, stainless steel top plate with threaded bolts for top panel mounting solution.adjustable industrial backlight optional. (Blue, Red, White colors etc. optional). Which is good for outdoor application with direct rain and very harsh environments with humidity,much dynamic water, oil, dirt, salt mist etc, direct drain pipe is optional, no rust risk and anti-salt spray corrosion.

DIMENSIONS: 361.0mm x 145.0mm (front panel)


MECHANICAL DATA

Actuator/keys

85 keys (including 2 mouse buttons)

Key top style

Non-protuberant rectangular keys, laser engraved & etched legends on keys are available

Key Size

14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 70.0mm for space bar

Key travel

0.45±0.05mm

Actuation Force

3.5N±0.2N for key 14.0mm x 14.0mm (pressure point ), 7.0N±0.4N for key 14.0mm x 28.0mm (pressure point)

Front Plate

1.5mm thickness super quality brushed stainless steel

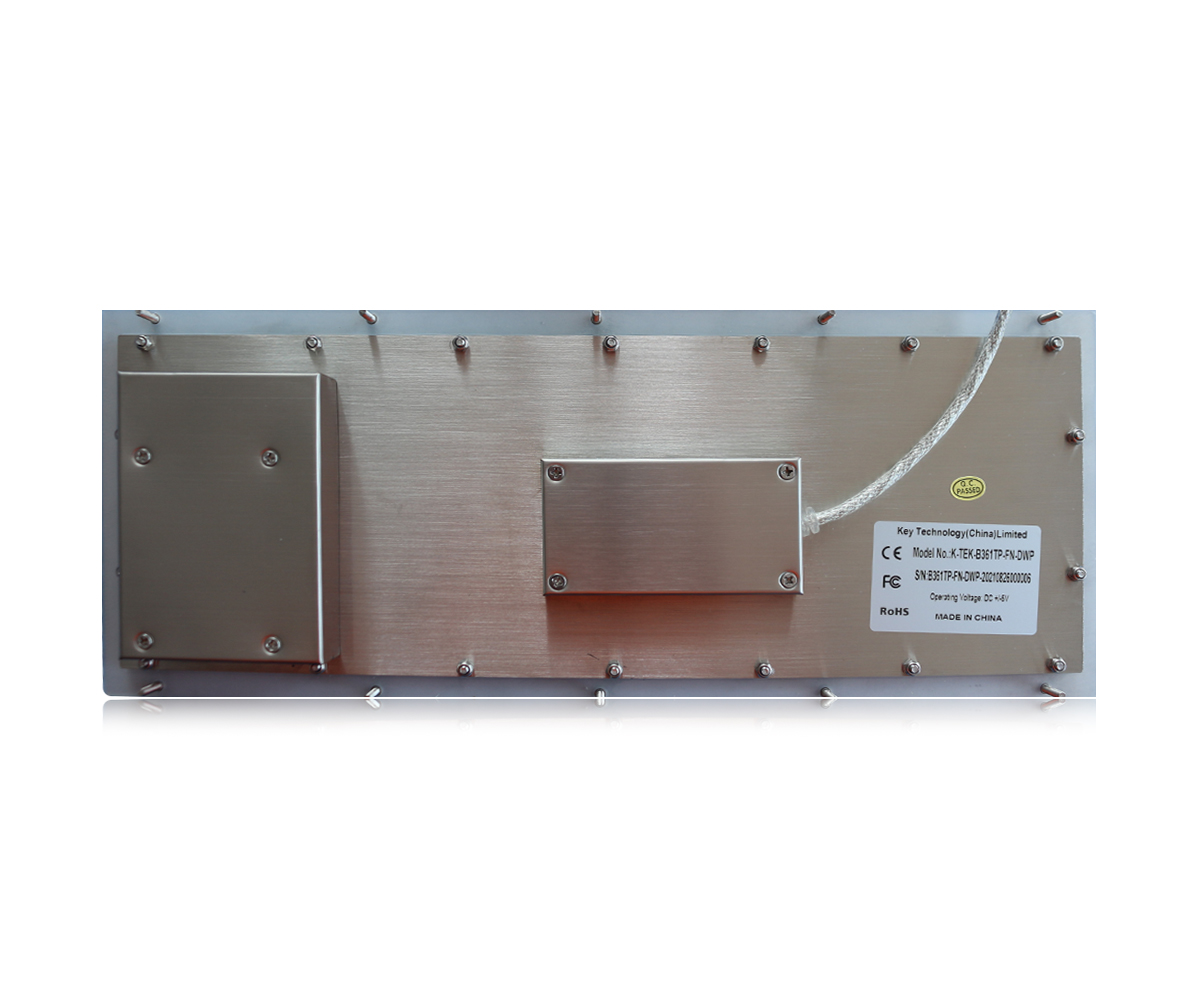

Back Plate

2.0mm thickness super quality brushed stainless steel

Switch life

more than 1 million of operations

Touch pad

sealed and ruggedized tough touchpad

Touchpad cover

Composite

More than Lifetime 10 million strokes

Mutual capacitance sensing

X/Y axis location detection resolution

40 Counts /mm

X/Y position report

relative

Output (self-detectable depending on cable)

PS2 or USB

Tracking speed

Maximum 1,016 m/sec

Power supply voltage

5VDC ± 0.25V

Current rating (active mode)

< 10 mA

G.W.

2.00KGs

ELECTRICAL DATA

Supply Voltage

+5V DC ± 5%

Current Rating

50mA

EMC Standard

EN 55032:2015   EN 55035:2017

Lifespan

> 5 years

Switch Contact Material

Gold-on-Gold key switch technology PCB

Interface

PS2, USB available

OS

All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).

ENVIRONMENTAL ADAPTABILITY

Operating temperature

-20℃ to +65

Storage temperature

-30℃ to +75

Operating RH

30-90%

Atmospheric pressure

60-106Kpa

Saline mist

96 hours, IEC 60512-6

Damp heat test at +40℃

21 days, IEC 60512-6

Dry heat test at +85℃

10 days, IEC 60512-6

RELIABILITY

RoHS Compliant, CE and FCC, ESD

Protection Level

IP65 dynamic (front panel)

Vandal resistant

IK09

Key Lifespan

>1 million actuations

MTBF

>20000H

MTTR

<30min

APPLICATIONS

Industrial, coal and mine, medical, bank kiosk and self service terminal, public access,

explosion-proof automation, oil and gas etc.
