DESCRIPTION: 70 keys (including 2 mouse buttons) compact format IP65 vandal proof stainless steel industrial keyboard with IP65 sealed and ruggedized tough touchpad for fast and accurate cursor position, industrial metal PCB with gold-on-gold key switch technology with short stroke (0.45±0.05mm) with extremely good tactile feeling for stable and accurate input without any noise, one complete silicone rubber along the underneath of stainless steel rear plate for easy mounting & sealing tightly with cabinet, 2 mouse buttons designed for right & left clicking, stainless steel rear plate with mounting holes for rear panel mounting solution,adjustable industrial backlight optional. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, direct drain pipe is optional, no rust risk and anti-salt spray corrosion.
DIMENSIONS: 255.0mm x 90.0mm (front panel)
MECHANICAL DATA |
Actuator/keys | 70 keys (including 2 mouse buttons) |
Key top style | Non-protuberant rectangular keys, laser engraved & etched legends on keys are available |
Key Size | 10.0mm x 10.0mm for normal keys, 10.0mm x 23.0mm for enter key, 10.0mm x 53.0mm for space bar |
Key travel | 0.45±0.05mm |
Actuation Force | 2.5N±0.2N for key 10.0mm x 10.0mm (pressure point ), 5.0N±0.4N for key 10.0mm x 23.0mm (pressure point) |
Front Plate | 1.5mm thickness super quality brushed stainless steel |

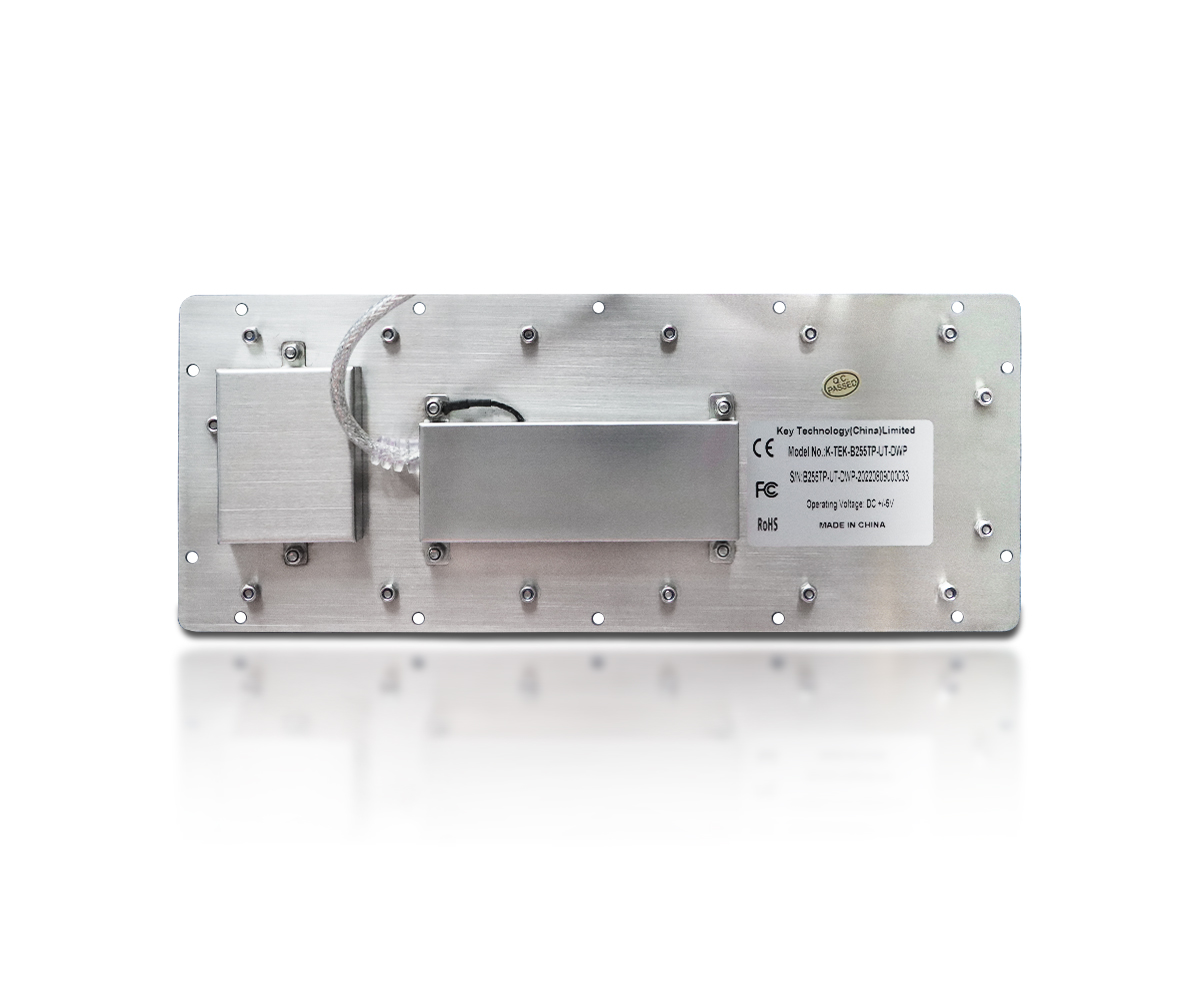

Back Plate | 1.5mm thickness super quality brushed stainless steel |
Switch life | more than 1 million of operations |
Touch pad | sealed and ruggedized tough touchpad |
Touchpad cover | Composite |
More than Lifetime 10 million strokes |
Mutual capacitance sensing |
X/Y axis location detection resolution | 40 Counts /mm |
X/Y position report | relative |
Output (self-detectable depending on cable) | PS2 or USB |
Tracking speed | Maximum 1,016 m/sec |
Power supply voltage | 5VDC ± 0.25V |
Current rating (active mode) | < 10 mA |
G.W. | 1.00KGs |
ELECTRICAL DATA |
Supply Voltage | +5V DC ± 5% |
Current Rating | 50mA |
EMC Standard | EN 55032:2015 EN 55035:2017 |
Lifespan | > 5 years |
Switch Contact Material | Gold-on-gold key switch technology PCB |
Interface | PS2, USB available |
OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
ENVIRONMENTAL ADAPTABILITY |
Operating temperature | -20℃ to +65℃ |
Storage temperature | -30℃ to +75℃ |
Operating RH | 30-90% |
Atmospheric pressure | 60-106Kpa |
Saline mist | 96 hours, IEC 60512-6 |
Damp heat test at +40℃ | 21 days, IEC 60512-6 |
Dry heat test at +85℃ | 10 days, IEC 60512-6 |
RELIABILITY |
RoHS Compliant, CE and FCC, ESD |
Protection Level | IP65 dynamic (front panel) |
Vandal resistant | IK09 |
Key Lifespan | >1 million actuations |
MTBF | >20000H |
MTTR | <30min |
APPLICATIONS | Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc. |
