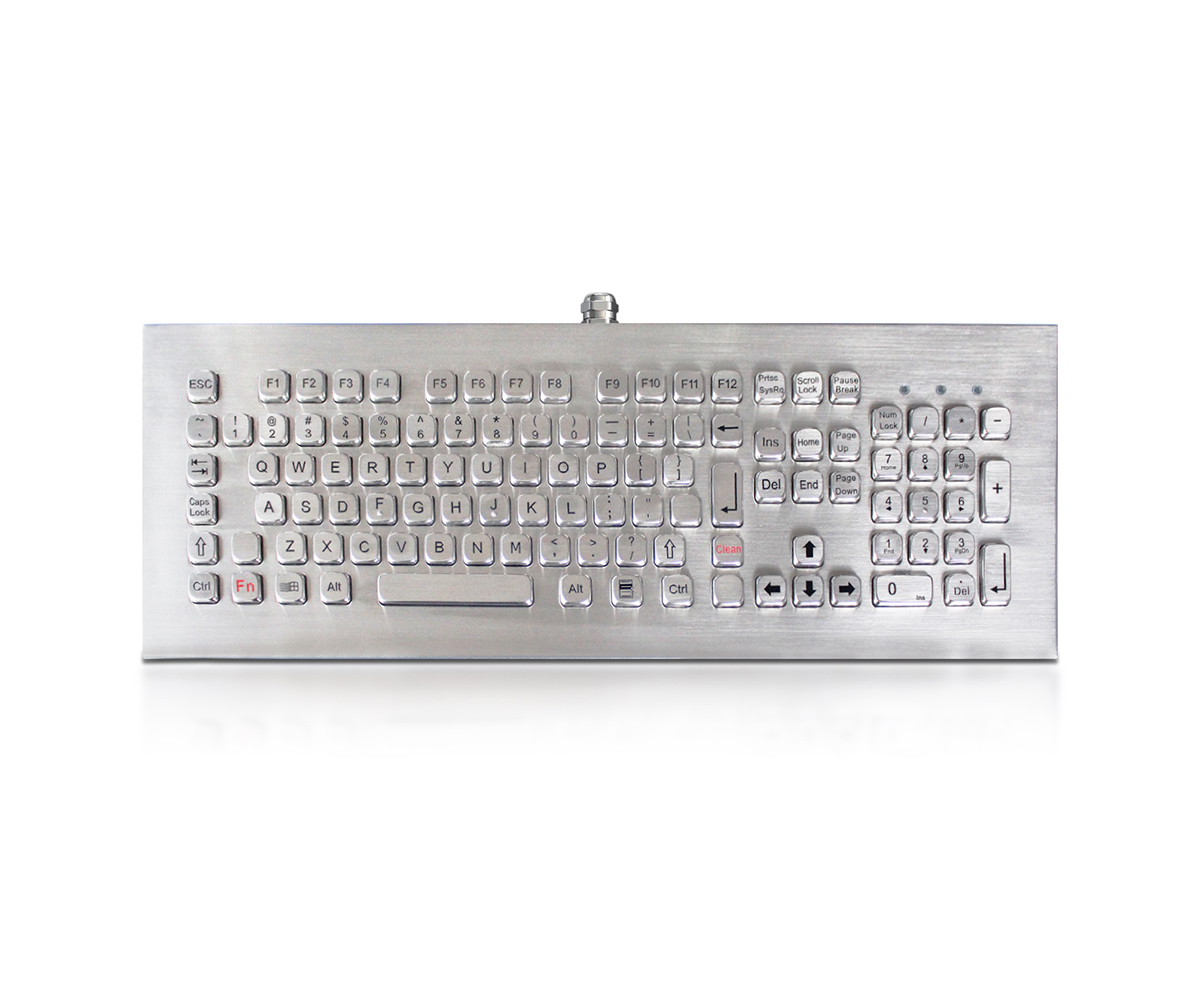

DESCRIPTION: 108 keys compact format IP68 dynamic washable vandal proof stainless steel industrial keyboard with industrial PCB with carbon-on gold key switch technology with long stroke (1.50±0.10mm) with extremely good tactile feeling for fast and accurate data input without any noise, with integrated numeric keypad, function keys F1, F2..F10, F11, F12 are on the top line for easy operation, FN+CLEAN combination key to lock/disable the whole keyboard for easy cleaning without disconnecting the keyboard from computer. Movable stand alone DESK TOP VERSION, which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion.
DIMENSIONS: 426.0mm x 155.0mm x 21.50mm ( Lx W x H)
MECHANICAL DATA |
Actuator/keys | 108 keys |
Key top style | Protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available |
Key Size | 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 70.0mm for space bar |
Key travel | 1.50±0.10mm |
Actuation Force | 1.5N±0.2N for key 14.0mm x 14.0mm (pressure point ), 2.5N±0.2N for key 14.0mm x 28.0mm (pressure point) |

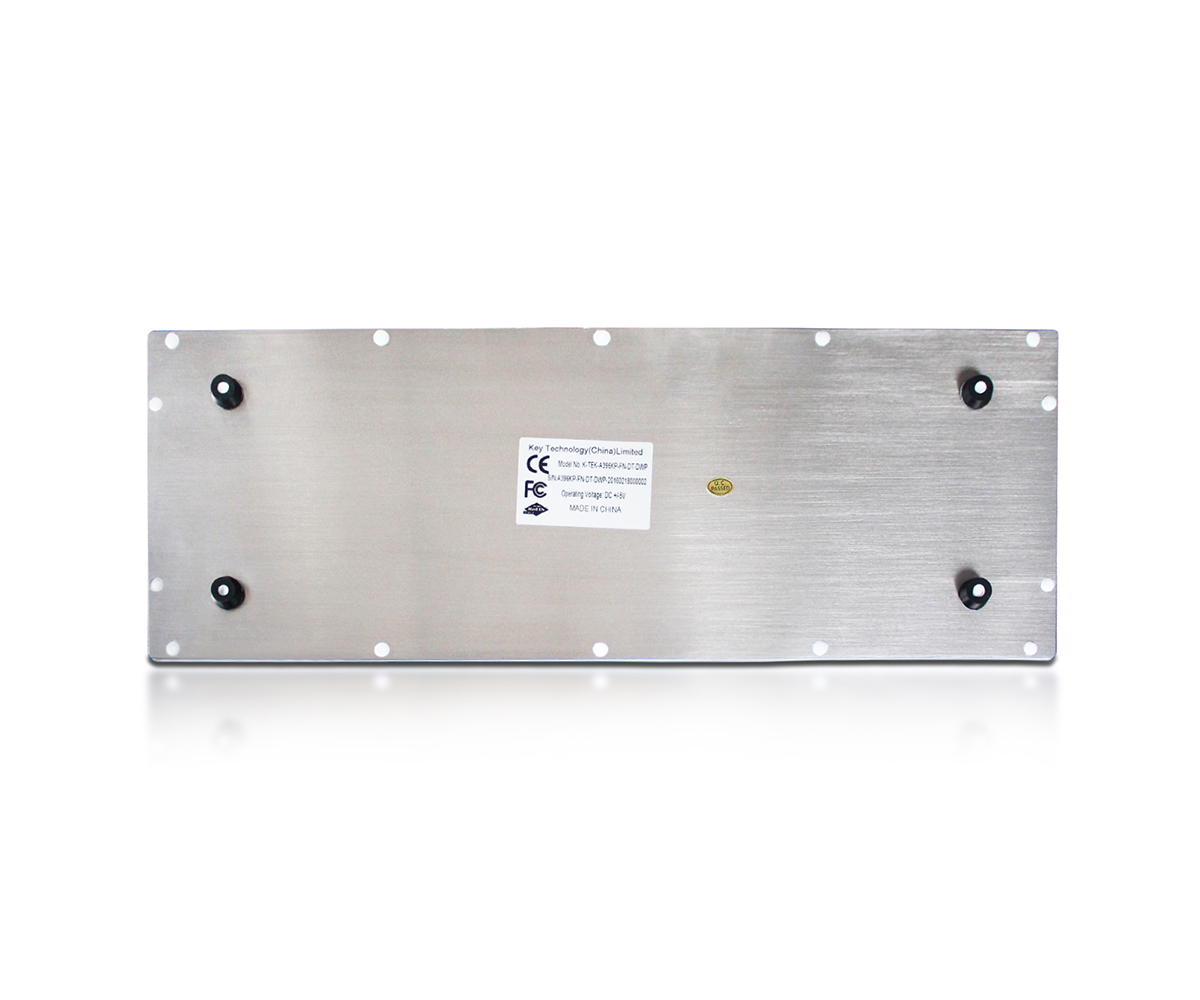

Front and Back Plate | Super quality brushed stainless steel |
Switch life | more than 5 million of operations |
G.W. | 3.0KGs |
ELECTRICAL DATA |
Supply Voltage | +5V DC ± 5% |
Current Rating | 30mA |
EMC Standard | EN 55032:2015 EN 55035:2017 |
Lifespan | > 5 years |
Switch Contact Material | Carbon-on-Gold key switch technology PCB |
Interface | PS2, USB available |
OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
ENVIRONMENTAL ADAPTABILITY |
Operating temperature | -20℃ to +65℃ |
Storage temperature | -30℃ to +75℃ |
Operating RH | 30-90% |
Atmospheric pressure | 60-106Kpa |
Saline mist | 96 hours, IEC 60512-6 |
Damp heat test at +40℃ | 21 days, IEC 60512-6 |
Dry heat test at +85℃ | 10 days, IEC 60512-6 |
RELIABILITY |
RoHS Compliant, CE and FCC, ESD |
Protection Level | IP68 |
Vandal resistant | IK08 |
Key Lifespan | >5 million actuations |
MTBF | >20000H |
MTTR | <30min |
APPLICATIONS | Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc. |
