K-TEK-A360KP-FN-BL-DWP

Category：	Stainless steel keyboard
Key Number：	102 keys
Key Travel：	1.50mm±0.10mm
Backlight：	White
Interface：	USB/PS2 optional
Key Switch：	Carbon-on-gold
Protection Level：	IP65 dynamic (front panel)
Mounting Solution：	Top panel mount with thread bolts
Operating Temperature：	-20ºC to +65ºC
Application：	Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, marine, oil and gas etc.

Prev： K-TEK-A361-DHP-FN-BL-DWP

Next： K-TEK-B361-OTB-FN-DT-DWP

Description

Download

DESCRIPTION: 102 keys compact format IP65 dynamic water proof vandal proof stainless steel industrial keyboard with fully sealed and ruggedized

industrial PCB electronics controller with carbon-on-gold key switch technology with long stroke (1.50±0.10mm) with extremely good tactile feeling for

fast and accurate data input without any noise, with integrated numeric keypad, function keys F1, F2..F10, F11, F12 are on the top panel for easy

operation1.50mm stainless steel back plate with water-tight gasket for easy and tightened sealing with cabinet or panel, top panel mounting solution.

Stainless steel keycaps etched out via special professional way and filled with transparent epoxy for backlight out, with adjustable industrial White

backlight included. The full keyboard can be locked/disabled via FN + Clean combination keys for easily cleaning without taking the keyboard away

from PC. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc,

no rust risk and anti-salt spray corrosion.

DIMENSIONS: 360.0mm x 145.0mm (front panel)

MECHANICAL DATA
Actuator/keys	102 keys
Key top style	Protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available
Key Size	14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 70.0mm for space bar
Key travel	1.50±0.10mm
Actuation Force	1.5N±0.2N for key 14.0mm x 14.0mm (pressure point ), 2.5N±0.2N for key 14.0mm x 28.0mm (pressure point)
Front Plate	1.5mm thickness super quality brushed stainless steel

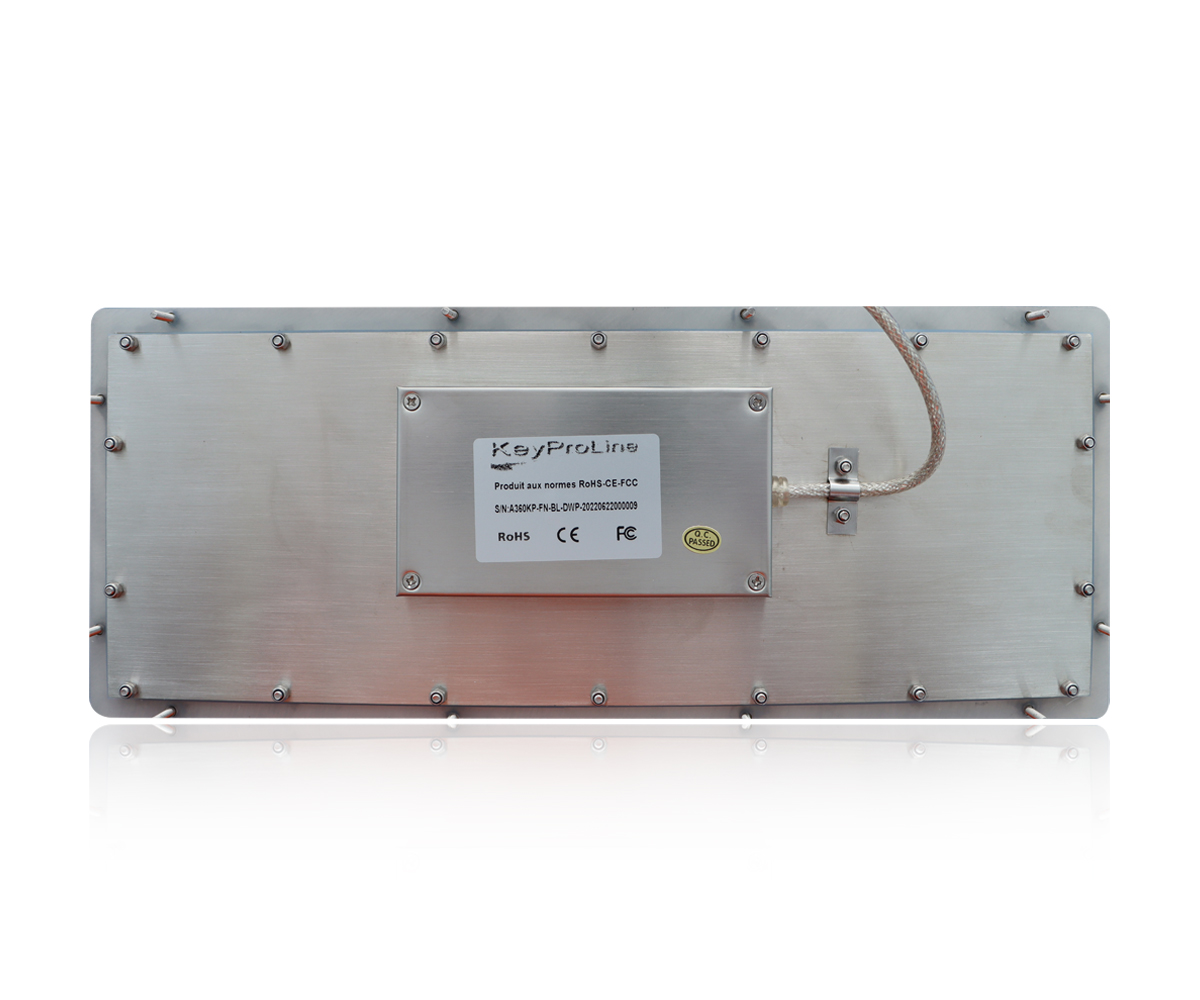

Back Plate	1.5mm thickness super quality brushed stainless steel
Switch life	more than 5 million of operations
G.W.	1.80KGs
ELECTRICAL DATA
Supply Voltage	+5V DC ± 5%
Current Rating	30mA when backlight is off, 300mA with backlight on
EMC Standard	EN 55032:2015 EN 55035:2017
Lifespan	> 5 years
Switch Contact Material	Carbon-on-Gold key switch technology PCB
Interface	PS2, USB available
OS	All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
ENVIRONMENTAL ADAPTABILITY
Operating temperature	-20℃ to +65℃
Storage temperature	-30℃ to +75℃
Operating RH	30-90%
Atmospheric pressure	60-106Kpa
Saline mist	96 hours, IEC 60512-6
Damp heat test at +40℃	21 days, IEC 60512-6
Dry heat test at +85℃	10 days, IEC 60512-6
RELIABILITY
RoHS Compliant, CE and FCC, ESD
Protection Level	IP65 dynamic (front panel)
Vandal resistant	IK08
Key Lifespan	>5 million actuations
MTBF	>20000H
MTTR	<30min
APPLICATIONS	Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc.

K-TEK-A360KP-FN-BL-DWP--mechanical drawing
