K-TEK-B361-OTB-FN-DT-DWP

Category：	Stainless steel keyboard
Key Number：	86 keys (including 3 mouse buttons)
Key Travel：	0.45±0.05mm
Backlight：	No
Interface：	USB/PS2 optional
Key Switch：	Metal dome gold-on-gold
Protection Level：	IP68
Mounting Solution：	Flat desk top solution
Operating Temperature：	-20ºC to +65 ºC
Ball Diameter：	38mm
Application：	Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc.

Prev： K-TEK-A360KP-FN-BL-DWP

Next： K-TEK-B361TP-FN-DT-DWP

Description

Download

DESCRIPTION: 86 keys compact format IP68 dynamic vandal proof stainless steel industrial keyboard with IP68 dynamic rated washable 38.0mm

stainless steel optical trackball module with +800 DPI resolutions for fast and accurate cursor position with extremely smooth operation without any

noise, function keys F1, F2, F3…F10, F11, F12 are on the top line for easy operation Industrial metal dome PCB with gold-on-gold key switch technology

with short stroke (0.45±0.05mm) with excellent tactile feeling for stable and accurate data input, 3 mouse buttons designed for right & left clicking and

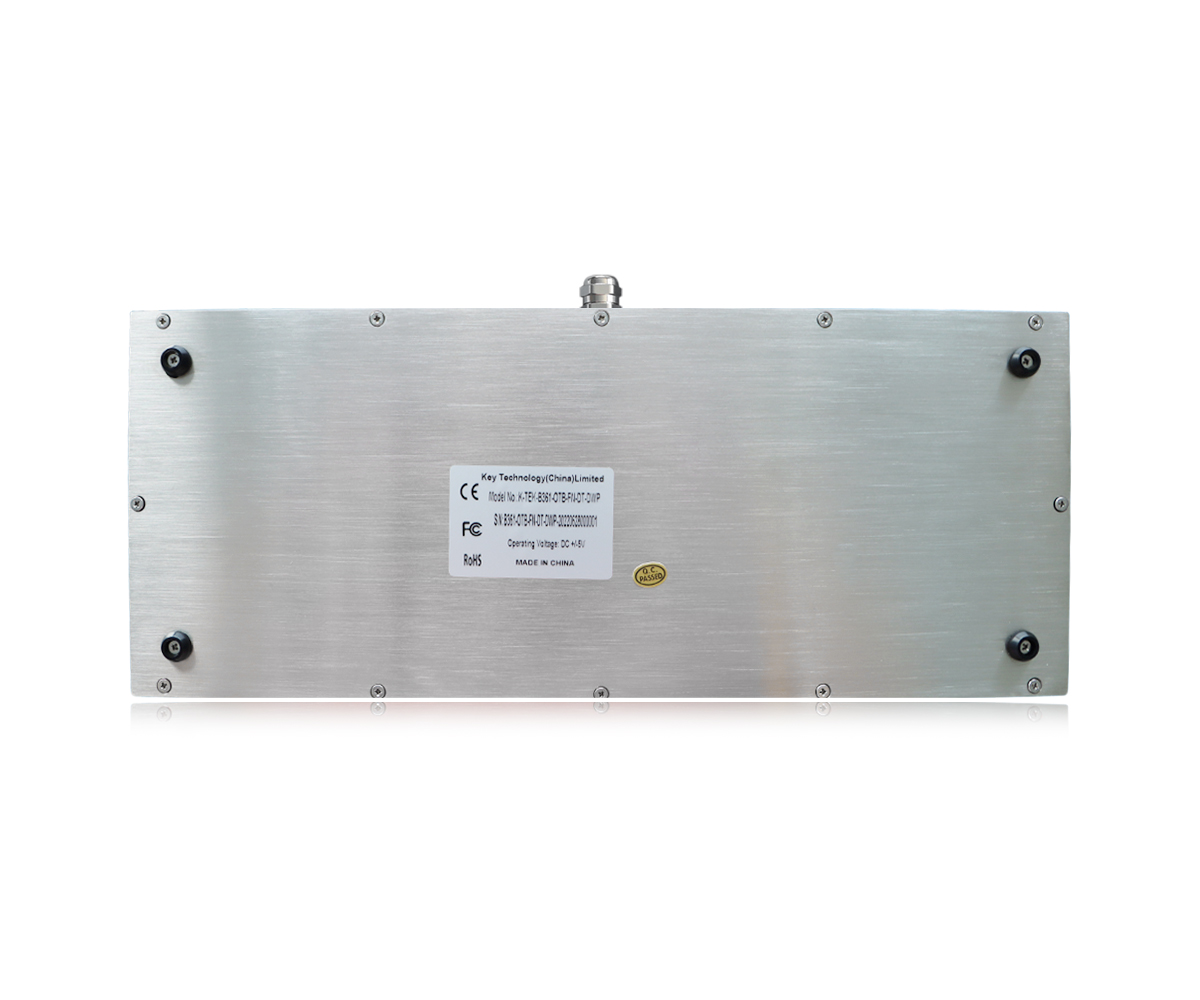

scrolling up and down with ball rolling, movable stand alone DESK TOP VERSION, or mountable desktop with mounting holes on the bottoms for fixing.

FN+Clean combination keys to lock/disable the whole keyboard for easy cleaning without error output. Which is good for outdoor application with direct

dynamic water, oil, dirt, salt mist etc, IP68 dynamic trackball module with direct drain pipe is optional, no rust risk and anti-salt spray corrosion.

DIMENSIONS: 361.0mm x 145.0mm x 50.5.0mm (L x W x H)

MECHANICAL DATA
Actuator/keys	86 keys (including 3 mouse buttons)
Key top style	Non-protuberant rectangular keys, laser engraved & etched legends on keys are available
Key Size	14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 70.0mm for space bar
Key travel	0.45±0.05mm
Actuation Force	3.5N±0.2N for key 14.0mm x 14.0mm (pressure point ), 7.0N±0.4N for key 14.0mm x 28.0mm (pressure point)
Front and Back Plate	Super quality brushed stainless steel
Switch life	More than 1 million of operationsS
Track ball	38.0mm stainless steel optical trackball module, silver resin ball module optional
G.W.	2.50KGs
ELECTRICAL DATA
Supply Voltage	DC +5V±5%
Current Rating	100mA
EMC Standard	EN 55032:2015 EN 55035:2017
Lifespan	> 5 years
Switch Contact Material	Gold-on-Gold key switch technology PCB
Interface	PS2, USB available
OS	All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
ENVIRONMENTAL ADAPTABILITY
Operating temperature	-20℃ to +65℃
Storage temperature	-30℃ to +75℃
Operating RH	30-90%
Atmospheric pressure	60-106Kpa
Saline mist	96 hours, IEC 60512-6
Damp heat test at +40℃	21 days, IEC 60512-6
Dry heat test at +85℃	10 days, IEC 60512-6
RELIABILITY
RoHS Compliant, CE and FCC, ESD
Protection Level	IP68
Vandal resistant	IK09
Key Lifespan	>1 million actuations
MTBF	>20000H
MTTR	<30min
APPLICATION	Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc.

K-TEK-B361-OTB-FN-DT-DWP-mechanical drawing
