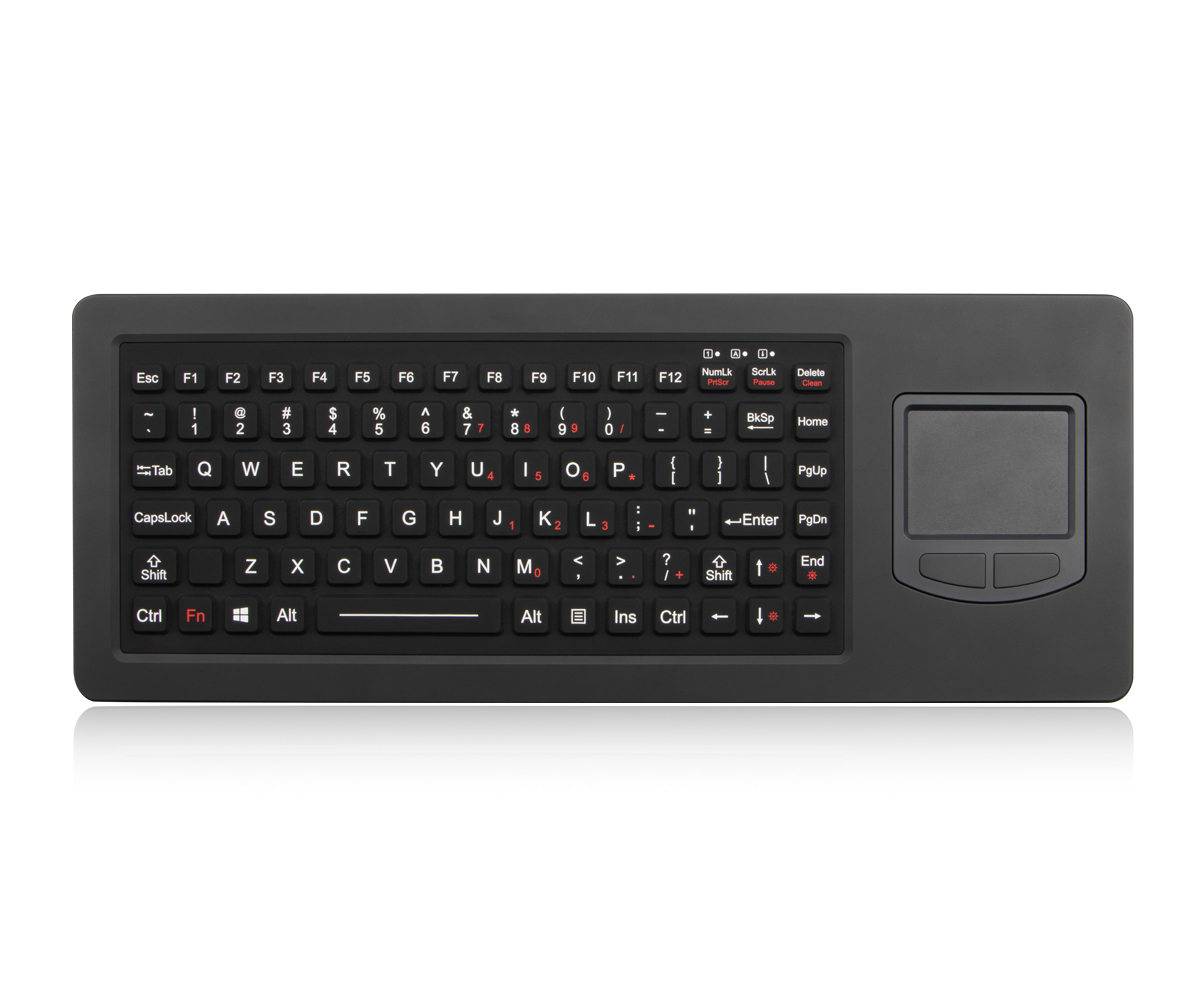

DESCRIPTION: 87 keys IP68 dynamic sealed and ruggedized silicone rubber industrial keyboard with full keyboard functionality with sealed & tough IP65 touch pad for fast and accurate cursor position, 12 FN keys (F1, F2...F11,F12) are on the top line for easy operations, industrial PCB with membrane key switch technology with 1.2mm key stroke with extremely good tactile feeling for fast and accurate data input without any noise, FN+Clean can lock the whole keyboard for easily clean the keyboard. with durable coating & antimicrobial keyboard surface withstand to most chemicals and liquids under harsh environment. Aluminum housing electroplated with black titanium for full black color treatment to be scratch proof. With Adjustable industrial backlight(white backlight ). Movable stand alone desk top version. Panel mount version optional.
DIMENSIONS : 400mm x 150mm x 20mm (L x W x H )
MECHANICAL DATA |
Key | 87 keys for keyboard, 2 keys for touchpad |
Key top style | Protuberant rectangular keys with tactile feeling. |
Key Size | 12.5mm X 12.5mm for normal keys, 22.8mm x 12.5mm for enter key 68.4mm x 12.5mm for spacebar key |
Key travel | 1.2mm±0.1mm |
Actuation Force | 1.2N±0.2N (pressure point ) |
Switch life | more than 5 million of operations. |
Touch pad | 1.3mm thick PCB, containing polyester film |
Touchpad cover | Composite |
More than Lifetime 10 million strokes |
Mutual capacitance sensing |
X/Y axis location detection resolution | 40 Counts /mm |
X/Y position report | relative |
Output (self-detectable depending on cable) | PS2 or USB |
Tracking speed | Maximum 1,016 m/sec |
Power supply voltage | DC 5V ± 0.25V |
Current rating (active mode) | < 10 mA |
G.W. | 2.00KGs |
ELECTRICAL DATA |
Supply Voltage | DC +5V±5% |
Current Rating | 50mA when backlight is off, 300mA with backlight on |
EMC Standard | EN 55032:2015 EN 55035:2017 |
Lifespan | > 5 years |
Switch Contact Material | industrial PCB with membrane key switch technology |
Interface | PS2, USB available |
Cable length | Standard 2.0m, customized length available. |
OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
ENVIRONMENTAL ADAPTABILITY |
Operating temperature | -20℃ to +60℃ |
Storage temperature | -30℃ to +65℃ |
Saline mist | 96h, IEC60512-6 |
Damp heat test at +40℃ | 21 days, IEC 60512-6 |
Dry heat test at +85℃ | 10 days, IEC 60512-6 |
Humidity | 100% |
Atmospheric pressure | 60-106Kpa |
RELIABILITY |
RoHS compliant, CE and FCC certified |
Protection Level | IP68 |
Key Lifespan | >5 million actuations |
MTBF | >20000H |
MTTR | <30min |
APPLICATIONS | Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc. |
