DESCRIPTION: 104 keys compact format IP68 dynamic sealed and ruggedized vandal proof stainless steel industrial keyboard with IP68 dynamic
rated washable 38.0mm stainless steel optical trackball module with +800DPI resolutions for fast and accurate cursor position with extremely smooth
operation without any noise, function keys F1, F2, F3…F10, F11, F12 are on the top line for easy operation, numeric keypad, industrial metal dome
PCB with gold-on-gold key switch technology with short stroke (0.45±0.05mm) with excellent tactile feeling for stable and accurate data input, movable

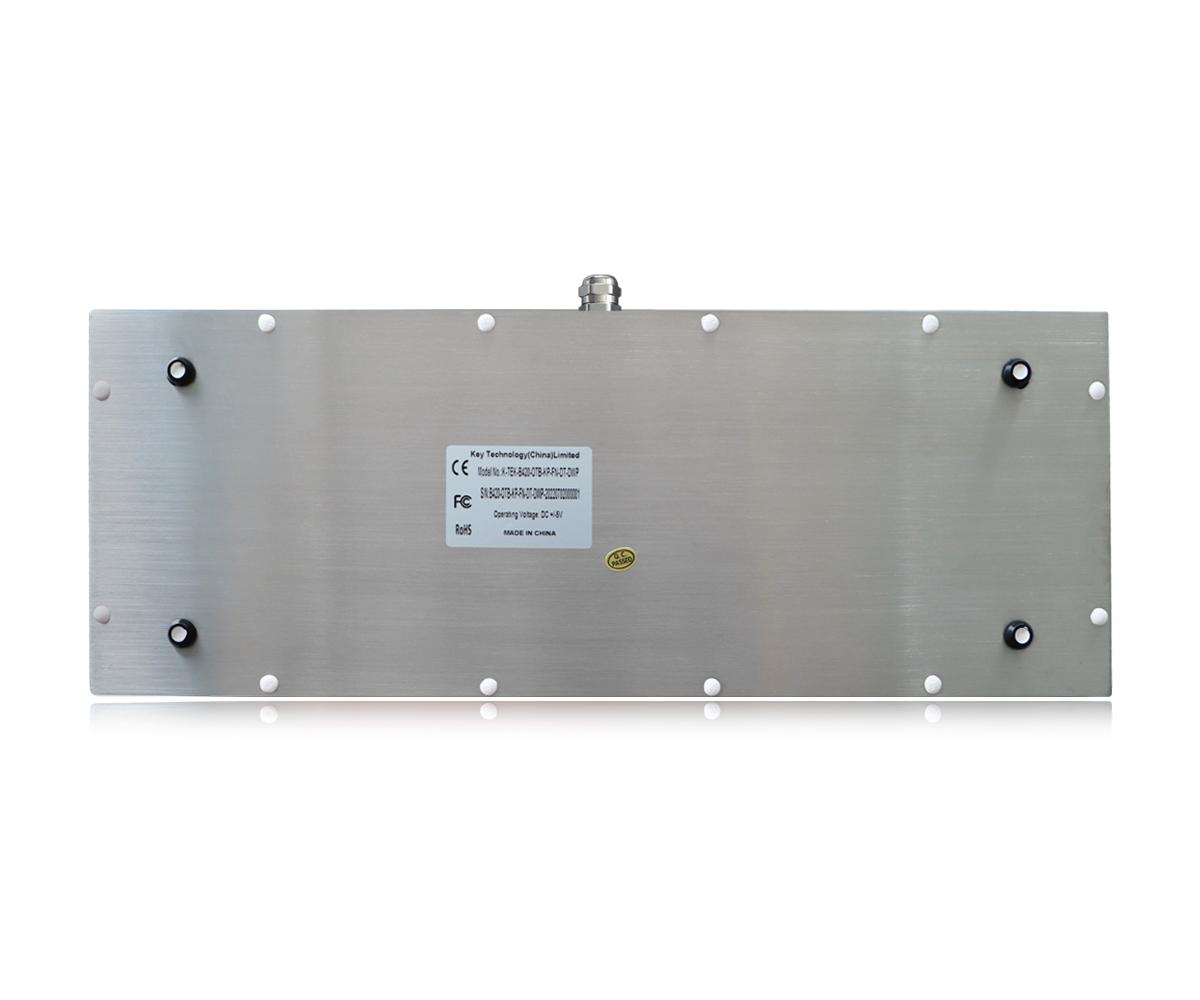

stand alone DESK TOP VERSION,or mountable desktop with mounting holes on the bottoms for fixing. Which is good for outdoor application with
direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion.
DIMENSIONS: 430.0mm x 145.0mm x 50.5mm (L x W x H)
MECHANICAL DATA |
Actuator/keys | 104 keys(including 3 mouse buttons) |
Key top style | Non-protuberant rectangular keys, laser engraved & etched legends on keys are available |
Key Size | 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 70.0mm for space bar |
Key travel | 0.45±0.05mm |
Actuation Force | 3.5N±0.2N for key 14.0mm x 14.0mm (pressure point ), 7.0N±0.4N for key 14.0mm x 28.0mm (pressure point) |
Front and Back Plate | Super quality brushed stainless steel |
Switch life | more than 1 million of operations |
Tracker ball | 38.0mm stainless steel optical trackball module, silver resin ball module optional |
G.W. | 2.5KGs |
ELECTRICAL DATA |
Supply Voltage | DC +5V±5% |
Current Rating | 100mA |
EMC Standard | EN 55032:2015 EN 55035:2017 |
Lifespan | > 5 years |
Switch Contact Material | Gold-on-Gold key switch technology PCB |
Interface | PS2, USB available |
OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
ENVIRONMENTAL ADAPTABILITY |
Operating temperature | -20℃ to +65℃ |
Storage temperature | -30℃ to +75℃ |
Operating RH | 30-90% |
Atmospheric pressure | 60-106Kpa |
Saline mist | 96 hours, IEC 60512-6 |
Damp heat test at +40℃ | 21 days, IEC 60512-6 |
Dry heat test at +85℃ | 10 days, IEC 60512-6 |
RELIABILITY |
RoHS Compliant, CE and FCC, ESD |
Protection Level | IP68 |
Vandal resistant | IK09 |
Key Lifespan | >1 million actuations |
MTBF | >20000H |
MTTR | <30min |
APPLICATION | Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc. |
