Product Detail

K-TEK-M380TP-FN-BL-ML-EMC-DT-DWP

Category: Marine keyboard
Key Number: 86 keys (including 2 mouse buttons)
Key Travel: 1.20mm±0.10mm
Backlight: Red
Interface: USB/PS2 optional
Key Switch: Carbon-on-gold
Protection Level: IP68
Mounting Solution: Flat desk top solution
Operating Temperature: -40℃~+75℃
Application: Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc.
Description
Download

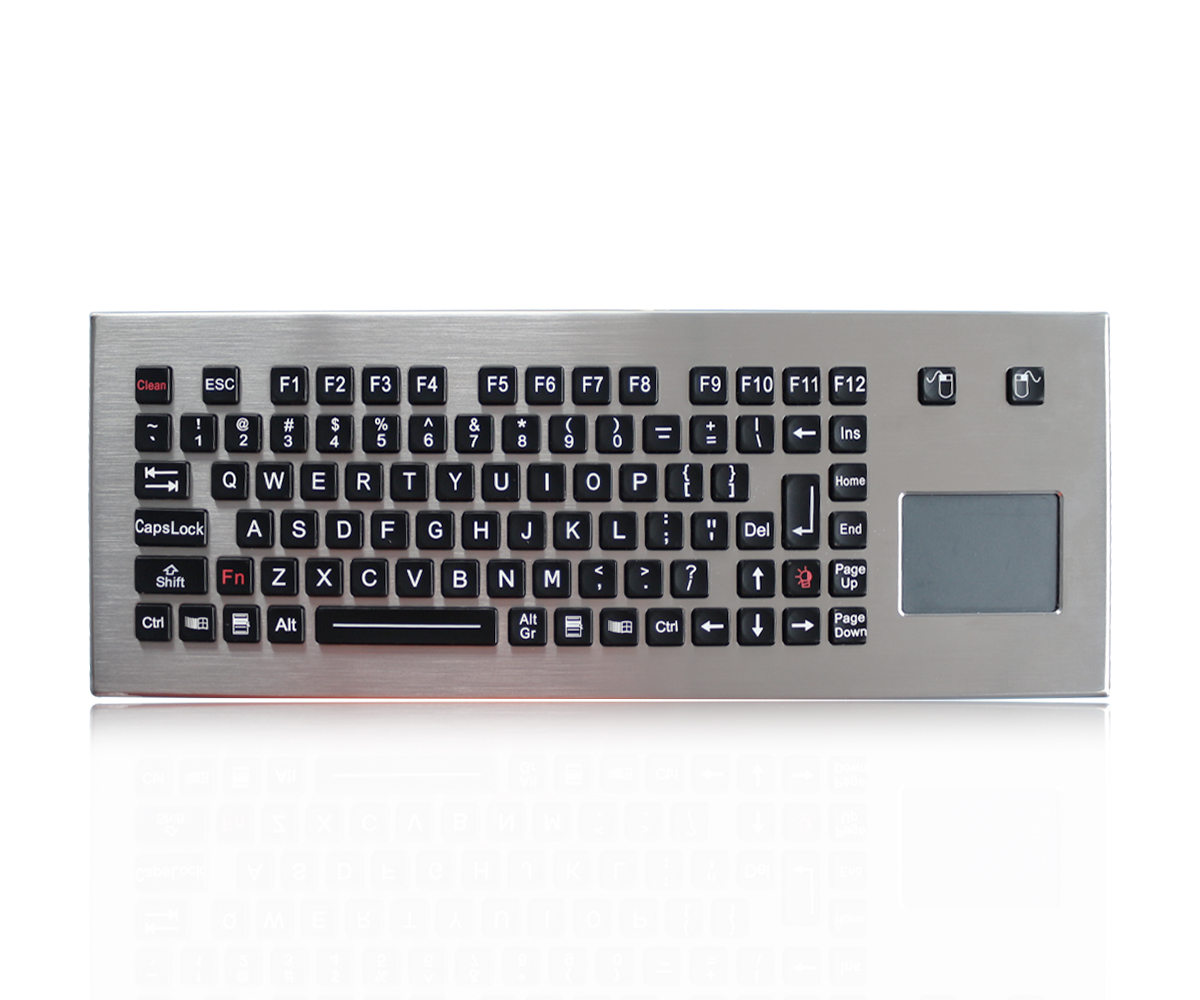

DESCRIPTION: 89 keys IP68 dynamic water proof vandal proof stainless steel industrial keyboard with durable polymer keys with full keyboard

functionalities, IP65 dynamic sealed & ruggedized tough touchpad for fast and accurate cursor position, function keys F1, F2, ...F12 are on the

top line for easy operation, Sealed and Military PCB with carbon-on-gold key switch technology with stroke(1.20mm±0.10mm) with extremely good

tactile feeling for fast and accurate data input without any noise. Adjustable Red Backlight included(White/Blue can be customized) . FN + Clean

combination keys for easy cleaning without taking the keyboard away from PC and avoid mis-operation or typing mistake. Movable desk top version.

The whole keyboard can meet MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus,

humidity). It is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, salt mist etc.



Dimensions: 390.0mm x 149.0mm x 21.5mm (L x W x H)


MECHANICAL DATA

Key

89 keys(Including 2 mouse buttons), durable and robust polymer keys

Key travel

1.20mm±0.10mm

Key Size

14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 68.2mm

for space bar

Actuation Force

2.0 N±0.2N for key14.0mm x 14.0mm (pressure point ), 3.5 N±0.20N for key 14.0mm x 28.0mm

(pressure point)

Switch life

more than 5 million of operations.

Touch pad

sealed and ruggedized tough touchpad

Touchpad cover

Composite

More than Lifetime 10 million strokes

Mutual capacitance sensing

X/Y axis location detection resolution

40 Counts /mm

X/Y position report

relative

Output (self-detectable depending on cable)

PS2 or USB

Tracking speed

Maximum 1,016 m/sec

Plate:

Super quality brushed stainless steel

G.W.

2.5KGs

ELECTRICAL DATA

Supply Voltage

DC +5V±5%

Current Rating

50mA (with backlight off) ,300mA (with backlight on)

Meet MIL-STD-461G with EMC (Electro Magnetic Compatibility) etc.:

1

CE101 25Hz - 10kHz Conducted Emissions, Audio Frequency Currents, Power leads

2

CE102 10kHz -10MHz Conducted Emissions, Radio Frequency Potentials, Power leads

3

CS101 25Hz - 150kHz Conducted Susceptibility, Power Leads

4

CS106 Conducted Susceptibility, Transients, Power Leads

5

CS112 Electrostatic Discharge Susceptibility

6

CS114 4kHz -400MHz Conducted Susceptibility, Bulk Cable injection

7

CS115 Conducted Susceptibility, Bulk Cable injection, Impulse Excitation

8

CS116 10kHz - 100MHz Conducted Susceptibility, Damped Sinusoidal Transients, Cables and Power Leads

9

RE101 25Hz -100kHz Radiated Emissions, Magnetic Field

10

RE102 10kHz - 18GHz Radiated Emissions, Electric Field

11

RS101 25HZ - 100kHz Radiated Susceptibility, Magnetic Field

12

RS103 10kHz - 40GHz Radiated Susceptibility, Electric Field

MIL-STD-810F (wide temperature, shock, vibration, humidity).

Lifespan

> 5 years

Switch Contact Material

Military PCB with carbon-on-gold key switch technology.

Interface

USB or aviation plug available

Cable length

Standard 1.5M or 2.0M, customized length available.

OS

All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).

ENVIRONMENTAL ADAPTABILITY

Operating temperature

-40℃ to +75

Storage temperature

-45℃ to +85

Saline mist

96h, IEC60512-6

Damp heat test at +40℃

21 days, IEC 60512-6

Dry heat test at +85℃

10 days, IEC 60512-6

Humidity

100%

Atmospheric pressure

60-106Kpa

RELIABILITY

RoHS compliant, CE and FCC certified,

MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity)

Protection Level

IP68 dynamic

Key Lifespan

>5 million actuations

MTBF

>20000H

MTTR

<30min

APPLICATION

Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop,

UAV ground station etc.
