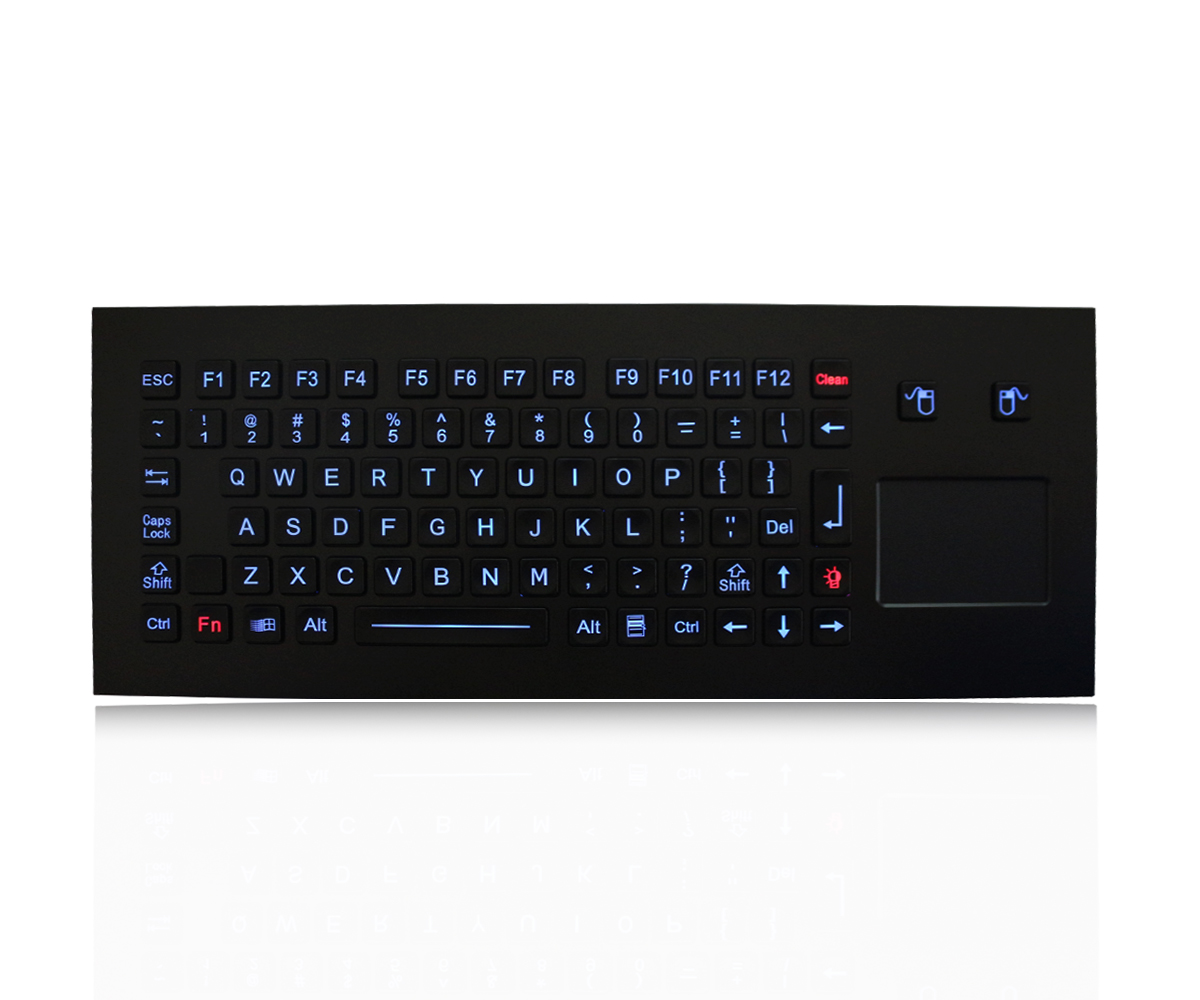

DESCRIPTION: 84 keys compact format IP65 dynamic water proof vandal proof stainless steel industrial keyboard with durable polymer keys and
IP65 sealed touchpad module for fast and accurate coursor position, with fully sealed and ruggedized industrial PCB with carbon-on-gold key switch
technology with long stroke (1.20mm±0.10mm) with extremely good tactile feeling for fast and accurate data input without any noise, functional keys
F1, F2, F3...F10, F11, F12 are on the top line for easy operation. High quality durable black titanium electroplated on the top stainless steel plate,
2 mouse buttons designed for right & left clicking, strong durable polymer keys caps with laser technology for backlight out, with adjustable backlight
(Red or Blue) included, stainless steel top plate with sealing gasket and threaded bolts for top panel mounting solution. FN + CLEAN key to lock/disable
the keyboard for easy cleaning without taking away the keyboard from PC, which is good for outdoor application with direct rain and very harsh
environments with humidity, much dynamic water, oil, dirt, salt mist etc, direct drain pipe is optional, no rust risk and anti-salt spray corrosion.
DIMENSIONS: 361.0mm x 145.0mm (front panel)
MECHANICAL DATA |
Keys | 84 keys(Including 2 mouse buttons),durable polymer keys |
Key top style | Protuberant rectangular keys with tactile feeling |
Key Size | 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 68.2mm for space bar |
Key travel | 1.20mm±0.10mm |
Actuation Force | 2.0 N±0.2N for key 14.0mm x 14.0mm (pressure point ), 3.5 N±0.20N for key 14.0mm x 28.0mm (pressure point) |
Switch life | more than 5 million of operations |
Touch pad | sealed and ruggedized tough touchpad |
Touchpad cover | Composite |
More than Lifetime 10 million strokes |
Mutual capacitance sensing |
X/Y axis location detection resolution | 40 Counts /mm |
X/Y position report | relative |
Output (self-detectable depending on cable) | PS2 or USB |
Tracking speed | Maximum 1,016 m/sec |
Front Plate: | 1.5mm thickness super quality brushed stainless steel with black titanium surface treatment |
Back Plate: | 3.0mm thickness brushed & oxidized aluminium |
G.W. | 2.0KG |
ELECTRICAL DATA |
Supply Voltage | DC +5V±5% |
Current Rating | 50mA (with backlight off) ,300mA (with backlight on) |
EMC Standard | EN 55032:2015 EN 55035:2017 |
Lifespan | > 5 years |
Switch Contact Material | Carbon-on-Gold key switch technology with gold PCB |
Interface | PS2, USB available |
Cable lengh | Standard 2.0m, customized length available |
OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
ENVIRONMENTAL ADAPTABILITY |
Operating temperature | -20℃ to +65℃ |
Storage temperature | -30℃ to +75℃ |
Operating RH | 100% |
Atmospheric pressure | 60-106Kpa |
Saline mist | 96 hours, IEC 60512-6 |
Damp heat test at +40℃ | 21 days, IEC 60512-6 |
Dry heat test at +85℃ | 10 days, IEC 60512-6 |
RELIABILITY |
RoHS Compliant, CE and FCC, ESD |
Protection Level | IP65 dynamic |
Key Lifespan | >5 million actuations |
MTBF | >20000H |
MTTR | <30min |
APPLICATIONS | Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc. |
