Product Detail


Category: Marine keyboard
Key Number: 85 keys (including 3 mouse buttons)
Key Travel: 1.20mm±0.10mm
Backlight: Blue/Red
Interface: USB/PS2 optional
Key Switch: Carbon-on-gold
Protection Level: IP68
Mounting Solution: Flat desk top solution
Operating Temperature: -20ºC to +65ºC
Ball Diameter: 38mm
Application: Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc.

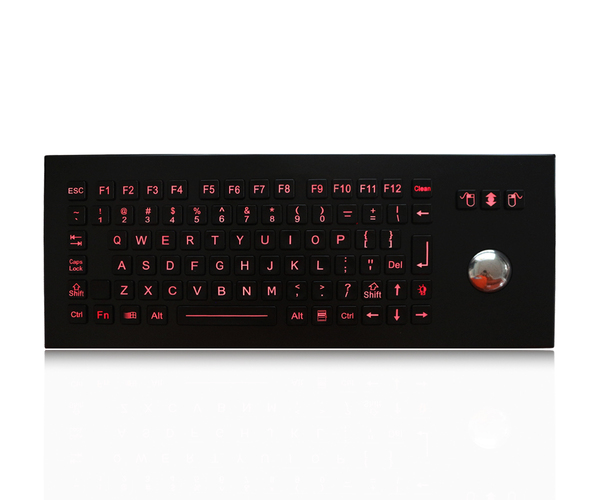

DESCRIPTION: 85 keys compact format IP68 dynamic water proof vandal proof stainless steel industrial keyboard with durable polymer keys and

IP68 dynamic washable 38.0mm stainless steel optical trackball module with 800 DPI resolutions for fast and accurate cursor position, with fully

sealed and ruggedized industrial PCB with carbon-on-gold key switch technology with long stroke (1.20mm±0.10mm) with extremely good tactile

feeling for fast and accurate data input without any noise, functional keys F1, F2, F3...F10, F11, F12 are on the top line for easy operation. High

quality durable black titanium electroplated on the top stainless steel plate, 3 mouse buttons designed for right & left clicking and scrolling up and

down with ball rolling, strong durable polymer keys caps with laser technology for backlight out, with adjustable backlight(Blue or Red Backlight)

included, movable stand alone DESK TOP VERSION. FN + CLEAN key to lock/disable the keyboard for easy cleaning without taking away the

keyboard from PC, which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt,

salt mist etc, direct drain pipe is optional, no rust risk and anti-salt spray corrosion.

DIMENSIONS: 361.0mm x 145.0mm x 50.5mm (L x W x H)




85 keys(Including 3 mouse buttons), durable and robust polymer keys

Keys travel


Keys Size

14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 68.2mm for space bar

Actuation Force

2.0±0.2N for key 14.0mm x 14.0mm (pressure point ), 3.5±0.2N for key 14.0mm x 28.0mm (pressure point)

Switch life

more than 5 million of operations


Super quality durable Black Titanium Electroplated

Track ball:

IP68 dynamic washable 38.0mm stainless steel optical trackball module with 800DPI,

silver harden resin trackball optional


Supply Voltage

DC +5V±5%

Current Rating

50mA (with backlight off) ,300mA (with backlight on)

EMC Standard

EN 55032:2015   EN 55035:2017


> 5 years

Switch Contact Material

Carbon-on-Gold key switch technology PCB


PS2, USB available

Cable length

Standard length at 2.0M. Other cable length is available.


All WindowsLinux, Unix, Mac OSXVxworksAndroid,(U-cos to be confirmed).


Operating temperature

-20℃ to +65

Storage temperature

-30℃ to +75

Operating RH


Atmospheric pressure


Saline mist

96 hours, IEC 60512-6

Damp heat test at +40℃

21 days, IEC 60512-6

Dry heat test at +85℃

10 days, IEC 60512-6


RoHS Compliant, CE and FCC, ESD

Protection Level


Vandal resistant


Key Lifespan

>5 million actuations






Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc.
